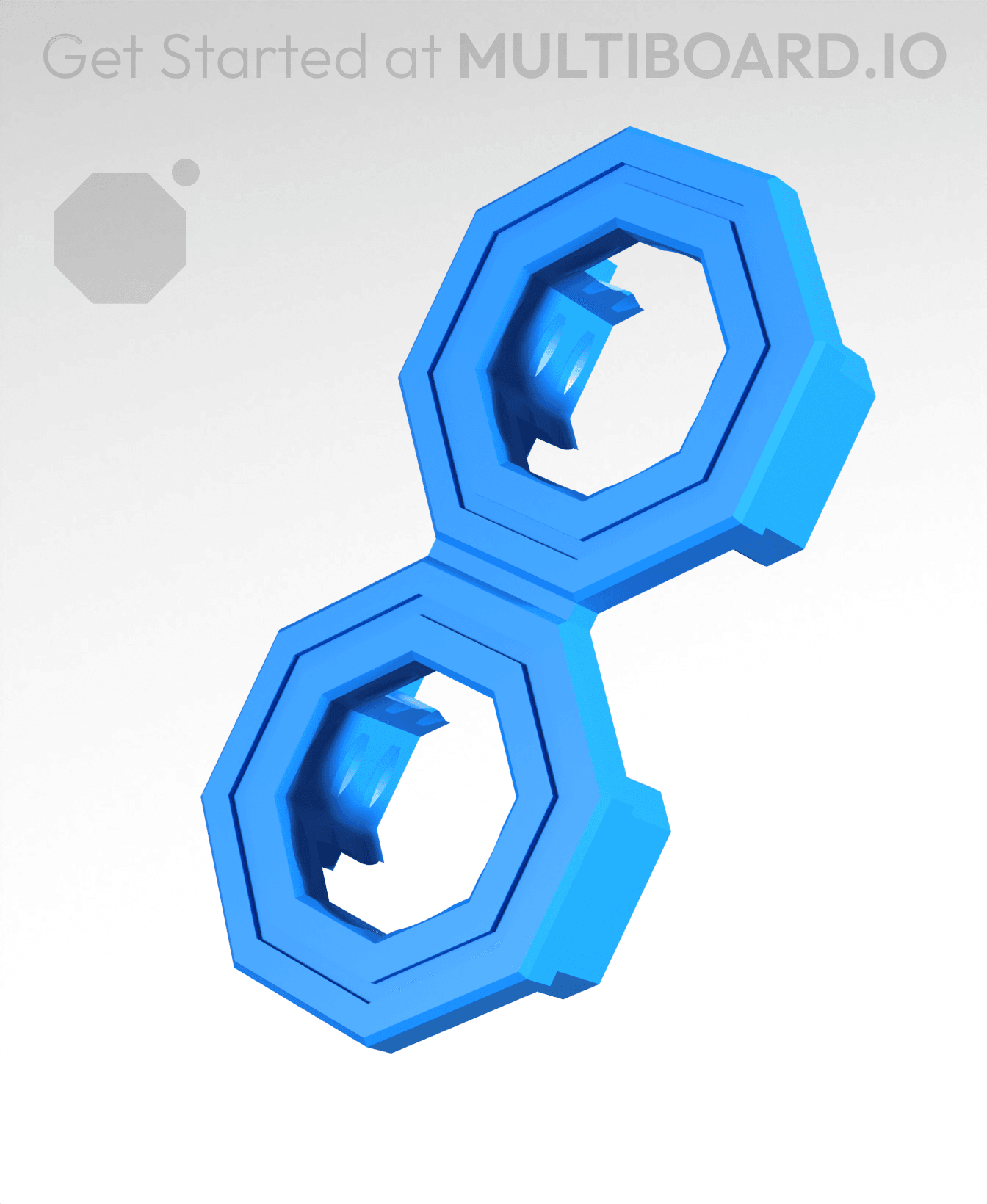

Raised Dual Snap (DS Part B)
The “dual snap connector” is used to connect two tiles together with snaps.
This is a “Double Sided Part B” piece, so it joins with the Dual Snap Connector - DS Part A to create nice looking snaps on both sides of your tiles. Or it can connect to the Dual T Offset Snaps - DS Part A to secure them into place.
Learn more about this part at https://multiboard.io/knowledge-hub
Printing Guidelines:
The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.
—
This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.
Explore and build the coolest, most adaptable workshop at https://multiboard.io
