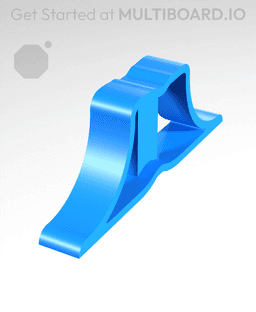

Free-Standing Foot

9.2K downloads · 2 years ago · Attach a “free-standing foot” to your Multiboard so it stands by itself, and use it as a desk organi

This model is restricted by licensing terms.

View license.

Description

Attach a “free-standing foot” to your Multiboard so it stands by itself, and use it as a desk organizer.

The free-standing foot comes with two pieces: the foot and the support piece.

To set it up, you insert the foot into a hole on the bottom of your Multiboard, then you place the support piece inside the foot to secure it into place.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

The printing orientation is as provided in the file. The print has been designed to be “3 wall perimeters” in wall thickness. Printed at a layout height of 0.2 mm. It doesn't need printing supports. Use the default 15% infill. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

—

This object is part of Multiboard, a FREE "all in one" organization system with 700+ parts, that combines pegboard holes, honeycomb snaps, Gridfinity like bins, threads, brakes, and much more.

Explore and build the coolest, most adaptable workshop at https://multiboard.io

Tags:

Community Makes (2)

Very pointy feet so some mouse ears were necessary for me. When assembled, the feet seem to point a little upwards making the tile rock back and forth so I will go for the feet with screwholes and just add some rubber feet instead.

Community Makes (2)

Discussions

gerard.choinka2 years ago

How to use it can be seen here https://www.youtube.com/watch?v=J5OF6diYiSE&t=671s

goygle892 years ago

Very pointy feet so some mouse ears were necessary for me. When assembled, the feet seem to point a little upwards making the tile rock back and forth so I will go for the feet with screwholes and just add some rubber feet instead.

mrkiryan2 years ago

Hi all, As many, can't build these. Made my own, no assembly, supports a fair sized and weighed panel. https://www.printables.com/model/812433-multiboard-alternative-free-standing-foot Check it out ;)

goygle892 years ago

johnnynorre2 years ago

My fingers are too larger to be able to put the small support piece into place so I made a remix, with a slightly redesigned foot and a new and larger support piece. You can find it at Printables: https://www.printables.com/model/780799-alternative-multiboard-foot

carltonb2 years ago

Is there something better than these for feet. They do not work well with an 8x8 tile, support above a certain height is precarious, and as well my big fingers take a long time to get them together.
