Side Quests [SQ1E4]

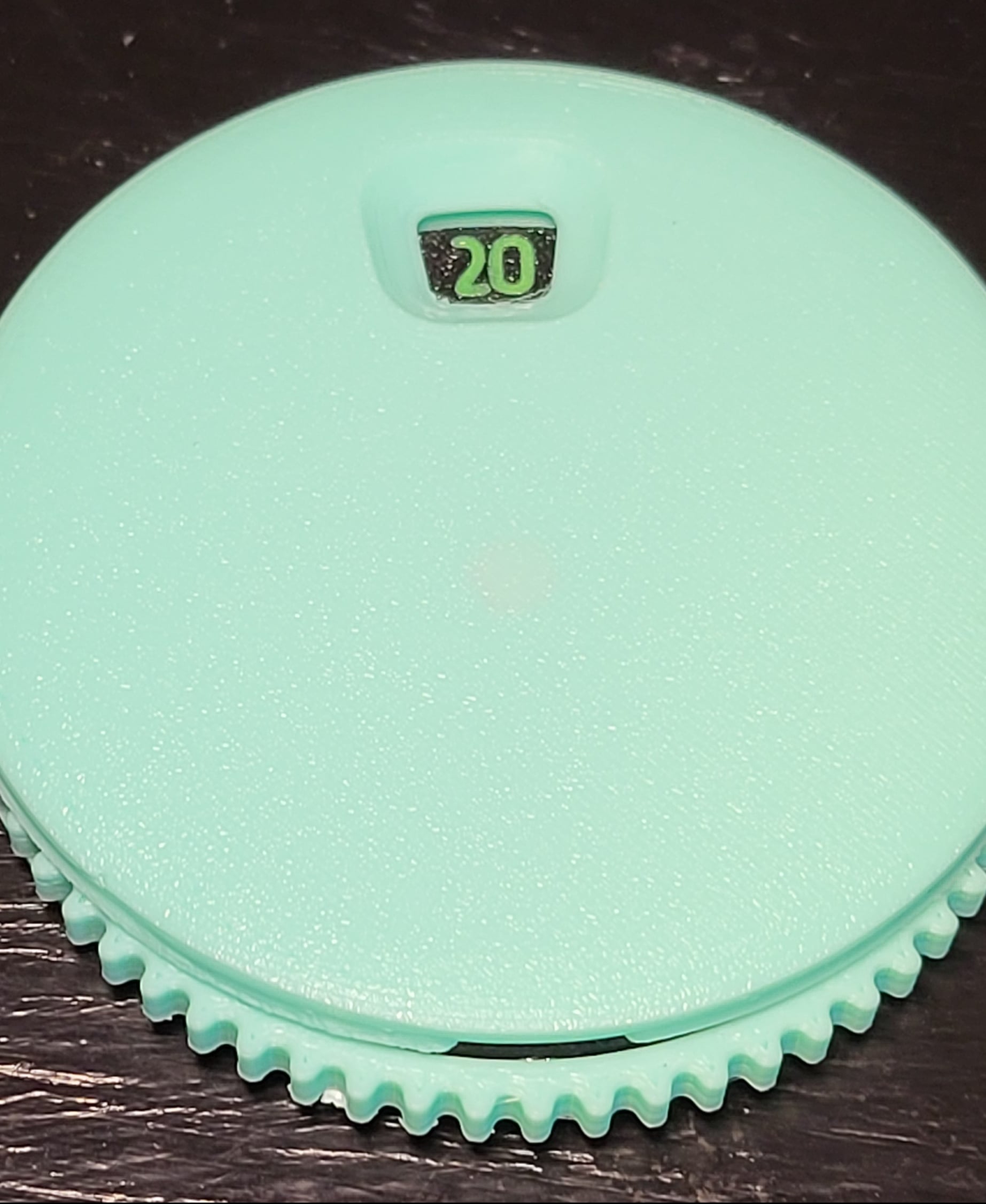

In this side quest I set out to make 3D printable spinner style dice that use magnets.

| ! | MAKE SURE ALL OF THE MAGNETS IN ALL OF THE PIECES ARE POINTING THE SAME DIRECTION | ! |

To make the Spinner Dice, print one of each of the following: CaseBottom, CaseTop, KnurlDial. Then print any or all of the NumberDisc_XX_DXX variants, with or without their corresponding multi-material NumberDisc_XX_DXX_Inlay, as you want.

Real-Time Assembly Video

Side Quest Episode

| Full Design Session | Design Session Pt.1 Design Session Pt.2

| Supplies | 5x2mm Neodymium Magnets - Amazon CA Glue (4.5 oz.) with Spray Activator, 2 Pack - Amazon Extendable Neck Deburring Tool - Amazon File Tool Set with Carry Case - Amazon ValueMax Flush Wire Cutters, 3 Pack - Amazon

| 3D Print Info | Materials: HATCHBOX Mint Green PLA - Amazon Nozzle Diameter: 0.6mm - Amazon Layer Height: 0.15mm Temps: 210C Nozzle, 70C Build Plate Wall Count: 2 Infill: 100% Print Speed: 60 mm/s, 6 slower initial layers at 10 mm/s Build Plate Adhesion: 3 line skirt

Printer: ELEGOO Neptune 3 Max - Amazon

My printer has a custom hotend, here's what I used to build it: | Custom Hotend Supplies | Hardened Steel Nozzle - Amazon Copperhead C-E Bimetallic Heat Break - Amazon High Temperature Plated Copper Heater Block - Amazon Heater Block Silicone Cover - Amazon High Temp Thermistor - Amazon Metric Bolt Assortment - Amazon

| Affiliate disclaimer | Any affiliate links do not increase the cost of the item to you at all, and simply provide a small commission to me for my recommendation, should you decide to make a purchase using the link. If you aren’t comfortable with this, that’s totally ok, feel free to buy them without using my links. That’s how much I value my recommendations, I still stand by them even if they don’t benefit me at all. I only recommend things that I use for myself on a daily basis.

Stay Moxious
