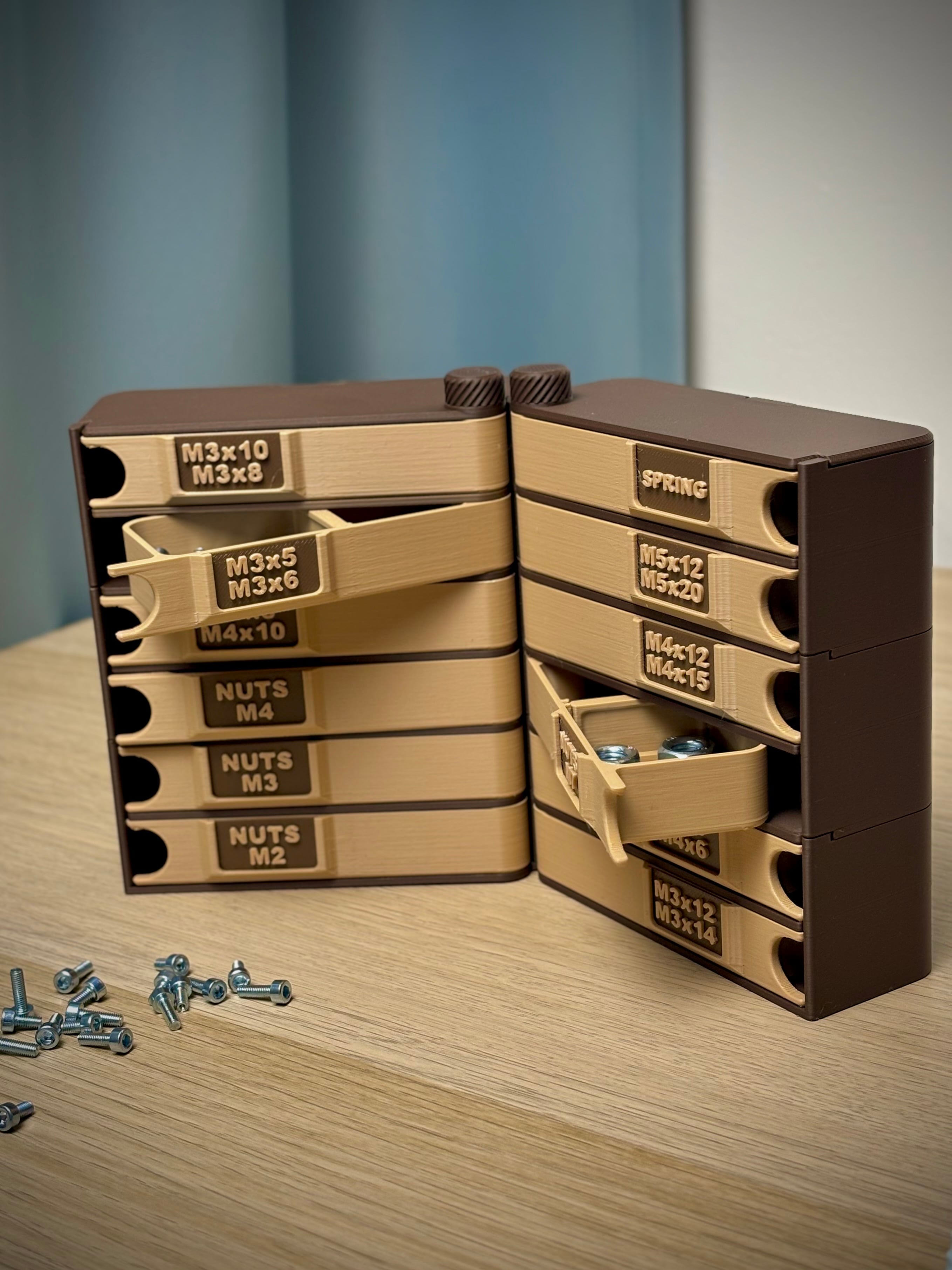

• Modular and stackable design – build the tower to any height
• Left and right door opening variants available
• Added small latch to prevent accidental opening and make opening & closing more satisfying 🔒
• Left and right Modular Boxes can be connected using 06_Clamp Base (attach it to the bottom 01_Base and the top module)
• Module size: 42 × 110 mm
• Small front pocket for a label 🏷️ – you can use a paper label or print 09_Label and easily add text in your slicer.

🔧 How to Build the Main Tier Choose which opening you want L=Left Opening or R=Right Opening

1. Start with 01_Base_(L/R) – this is always the foundation of your tower.
2. Begin stacking: place 02_Box_(L/R) on the base, then add 03_Partition_(L/R) on top of it.
3. Place 02_Box _(L/R)
4. Insert 04_Pivot through the center and screw it into the base to lock the whole tier together 🔩.
5. Place 09_Roof_(L/R) on the very top.
6. Finish by attaching 07_Plug – screw it onto the Pivot to secure the entire organizer

🔧 How to Add a Second Tier

1. Instead of 01_Base, print 05_Modular_Base_(L/R) for the next level!!
2. Place 05_Modular_Base_(L/R) directly on top of your completed first tier.
3. For each additional tier, print again:

• 2× 02_Box _(L/R)
• 1× 03_Partition_(L/R)
• 1× 04_Pivot

4. Build it the same way as the main tier and close it with 09_Roof_(L/R) + 06_Plug on top.

Pre-sliced .3mf print profile optimized for Bambu Lab printers
