Overview

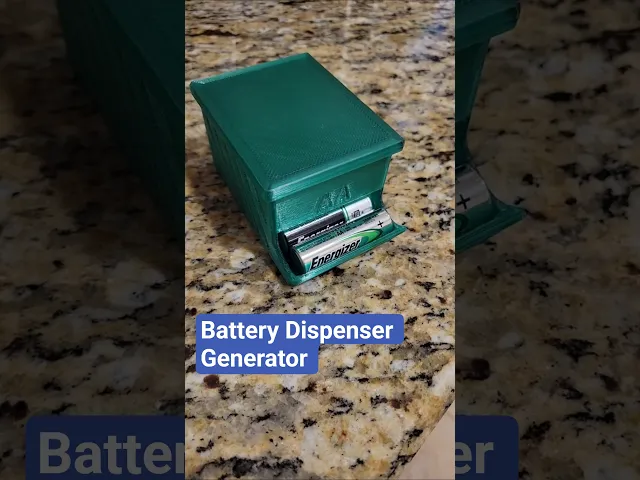

This customizable gravity-fed dispenser lets you generate a storage solution sized exactly for your batteries or other cylindrical items.

Set the diameter, rows, and columns to create a dispenser that fits your space instead of forcing a generic organizer to work.

Also useful for 18650 cells, glue sticks, dowels, test tubes, or any other uniform cylinders. Default version supports AA batteries.

---

Customization Instructions

Customize your Battery Dispenser directly on the Lunar Prototypes website.

1. Navigate: Go to the customization tab on the model page.
2. Customize: Enter your desired measurements and adjustments.
3. Submit: Click submit and wait for the design to complete.
4. Download: Once the job completes, download your custom STL and slice as usual.

Note: The customization system is currently in beta. Your feedback helps us improve.
👉 Join our Discord if you have issues or ideas.

---

Printing Tips

Printing Technology: FDM Layer Height: 0.2 mm Perimeters: 4 Infill: 10% Infill Pattern: Gyroid Recommended Material: PLA, PETG, ABS, ASA Supports: No Support Type: None

---

Notes:

• Recommend paint on supports for overhang over battery slot
• Default design supports AA batteries
• Supports anything cylindrical, not just batteries

---
