Modular Bolt Organizer  - This is a 2x7 matrix of the bolt organizer, which is mounted to my wall. The color of the cap symbolizes the pitch and diameter of the bolt, while the white label designates the length.  - 3d model
Modular Bolt Organizer  3d model

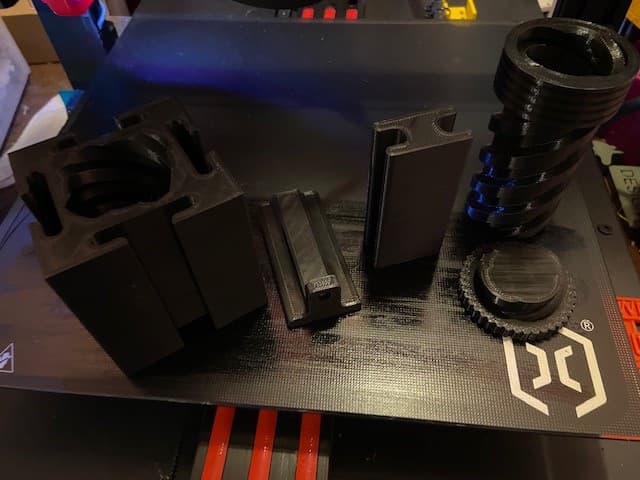

Modular Bolt Organizer  - love this design - 3d model
Modular Bolt Organizer  3d model
This model is restricted by licensing terms.

Form = function. A large bolt that can store many bolts inside of itself. Just a fun organizer for storing fasteners and other small tools or consumables laying around your garage.

This is a modular system where an infinite number of nut blocks can be chained together with the joiner.

Every 7th nut block is 16" away (on center) from the 1st, allowing for easy and sturdy mounting to studs in the wall.

Recommended Filament Tough PLA

Print Settings 0.4mm Nozzle 0.2mm Layer Height 15% Infill No Support

Please note that you want the bolt to easily thread into the nut block. On the other hand, the cap should thread a little bit tightly onto the bolt. Please leave a comment on this model if the fitting is too tight or loose for either threading.
