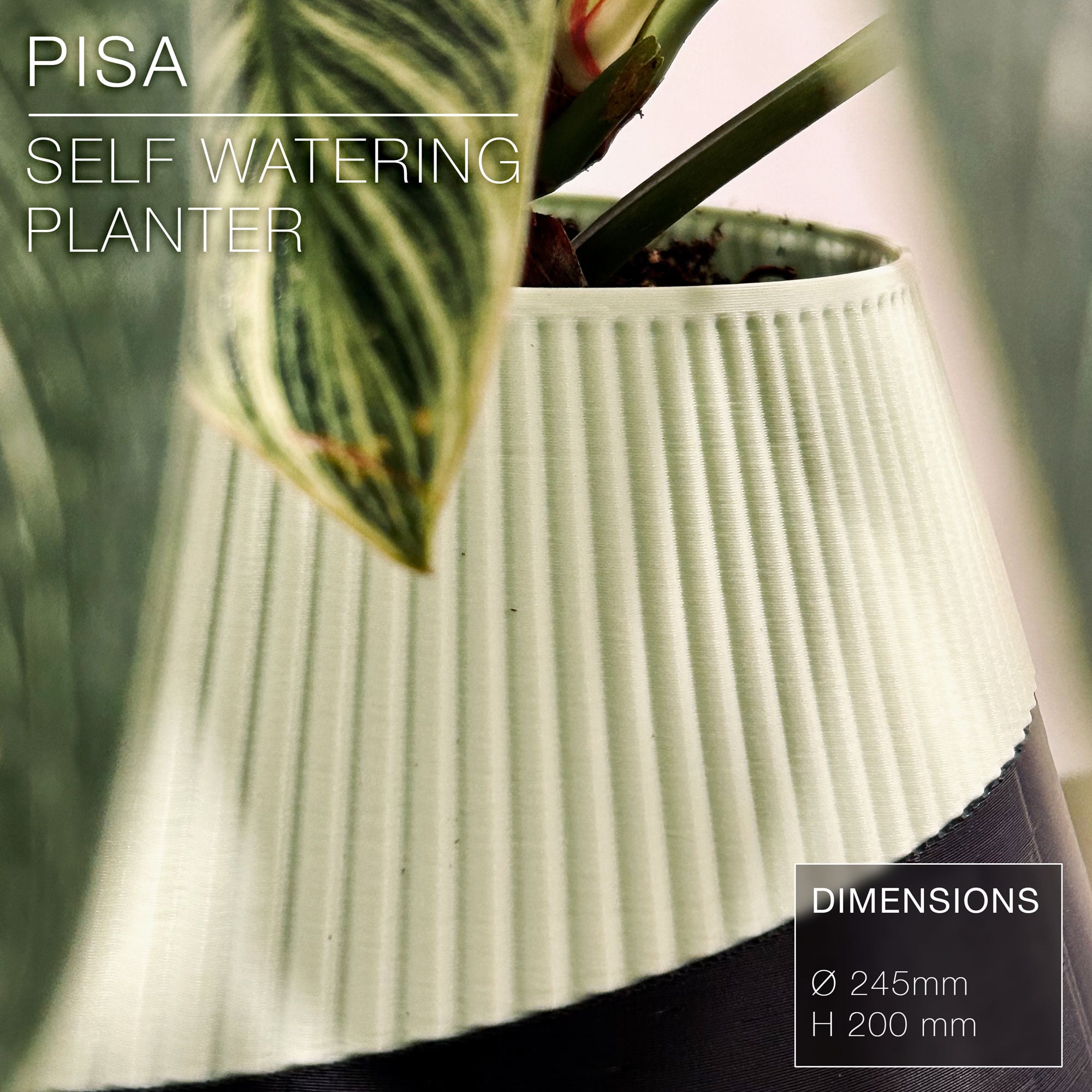

PISA | Self-Watering Planter
Meet PISA, our chic and practical large self-watering planter.
It comes in two sizes:
- Large: Ø 245mm x H 200 mm
- Small: Ø 205mm x H 170 mm.
Scale it up at will. You can shrink it down to 75% without issues.. You might have watertightness issues if you shrink it further (walls would get too thin).
The printed version on the pictures is missing a funnel that allows to fill the reservoir from the top of the pot. I added this funnel later on, and the STL files in attachment have it.
DIMENSIONS (Large) | Ø 245mm x H 200 mm (top hole diameter Ø 135 mm)
DIMENSIONS (Small) | Ø 205mm x H 170 mm (top hole diameter Ø 115 mm)
3D PRINT SETTINGS
For a watertight result, make sure your printer is well calibrated and lubricated. Then, increase the wall line count to 3. The wall thickness is 2.4mm, so that makes for 6 wall lines with a 0.4mm nozzle. That's plenty to make it watertight.
Resolution: 0.2~0.3 mm Infill: gyroid ~20% Build adhesion type: 6mm Brim for the Pot. No brim needed for the Reservoir. Supports: None
