HEXAHEDRON

11 downloads · 2 years ago · Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5634977. https://gith

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5634977.

https://github.com/damanbaird/HEXAHEDRON

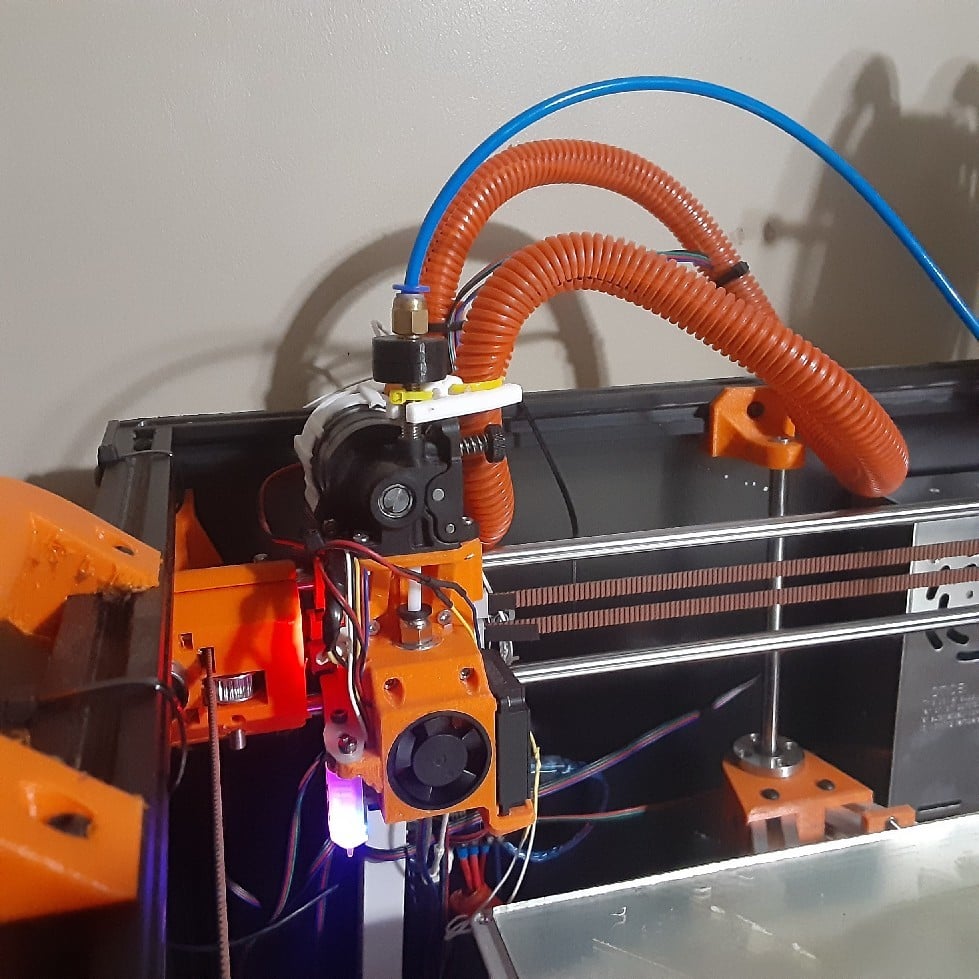

My way of making a better 3D printer out of the worthless Tronxy X5SA that i had. Hypercube evolution was out of the question since i didnt want to buy all new 3030 extrusion pieces. This build does loose a small amount on the XYZ axis but i think the improvements in the prints was worth it with my glass bed it prints 312x300x340, with some bed support modding it could be as much as 360x310x340 So this... is what i have so far it's running and printing great, but does need some other refinements. Running Klipper firmware. Has magnetic kinetic bed mounts to reduce bed warping while heating. pulleys run on smooth rods not screws! I have included My Amazon affiliate links for the parts i bought.

A few extra parts needed:

designed for the Orbiter 1.5 extruder, since it is what i had at the time.

E3D V6 hotend or clone

2 x 410 10mm smooth rods

2 x 480 8mm smooth rods:

2 x +/- 480mm 2020 extrusion

1 x 500mm 2020 extrusion

6 x 3.5mm x 30mm rods

3 x 10x20 magnets

6 x 20 tooth pulley w/ bearings: https://www.amazon.com/dp/B07JNQQKTC?th=1&linkCode=sl1&tag=bbtech0db-20&linkId=dee3bdfacb5fd327f5e1c2122d723ef6&language=en_US&ref_=as_li_ss_tl

2 x 16tooth smooth pulley w/bearings

2 x LM10UU extra long bearings: https://www.amazon.com/dp/B07JNQQKTC?th=1&linkCode=sl1&tag=bbtech0db-20&linkId=dee3bdfacb5fd327f5e1c2122d723ef6&language=en_US&ref_=as_li_ss_tl
