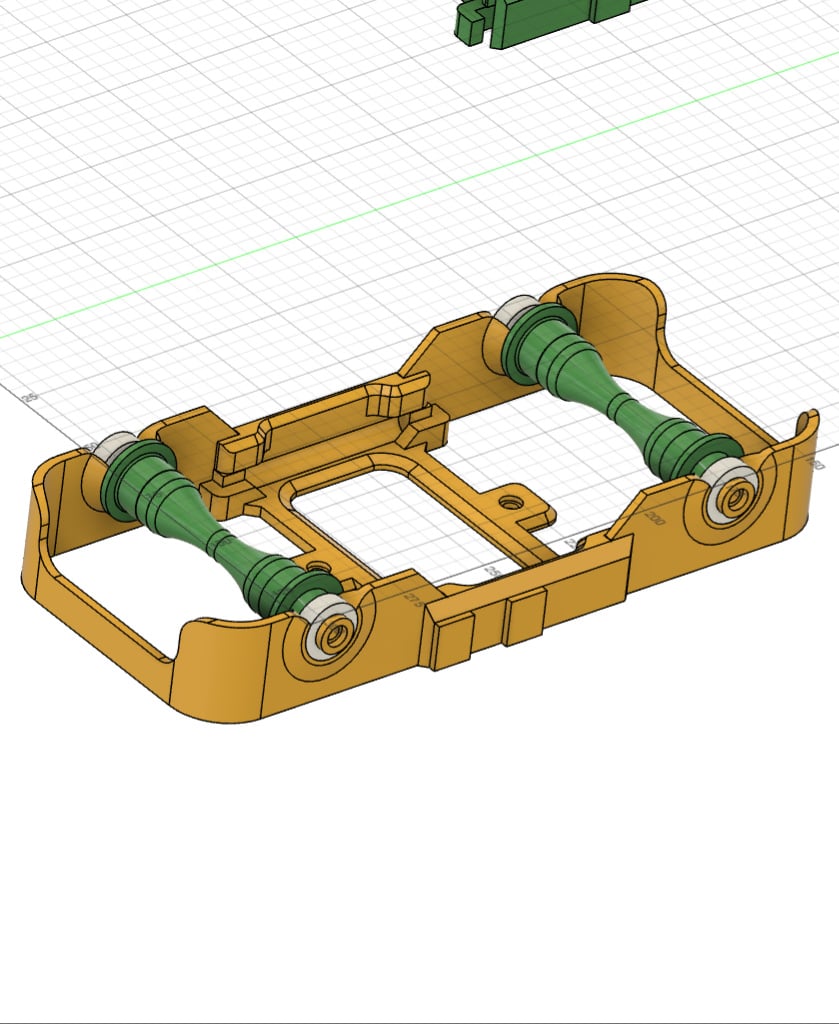

Modular Spool Holder (1kg Space Saver) 3d model
AlphaZen
AlphaZen
|
Image 1 of 3
Modular Spool Holder (1kg Space Saver) 3d model
2D
3D
Makes
Modular Spool Holder (1kg Space Saver) 3d model
Modular Spool Holder (1kg Space Saver) 3d model
Modular Spool Holder (1kg Space Saver) 3d model

Modular Spool Holder (1kg Space Saver)

Dont use PLA if installing into an enclosure.

Intended for 1kg non cardboard spools (64mm max)

Along with the correct length M3 screws, you will need 4 bearings per holder: https://amzn.eu/d/5Vk2Zgq

With minimal supports, the base snaps together in 3 parts. The centre part comes in 2 versions to assist with alignment during installation.

Tightening the assembled rollers into the respective parts of the base completes the model which can in turn be fastened to the floor of the encolsure.

While designed for 1kg spools, the model is compsed so as to allow you to modify the scale of the relative x and/or y axis of the SIDES, AXEL and CENTRE aspects to suit your needs.
