A ready-to-solve twisty puzzle box. No hardware and no assembly required!
Printer Requirements
This is not a difficult print, but it does require a fair amount of accuracy.
All moving parts have a clearance of 0.5mm, so your printer must be accurate enough to avoid fusing together parts that are positioned close to each other.
All functionally important overhangs are limited to 45 degree angles. Your printer must be able to print these overhangs cleanly.
Any stringing or large surface imperfections my make this puzzle impossible to solve.
If the above requirements cannot be met, some parts of the puzzle can be printed separately - most obviously the outer case. Doing so will, of course, spoil the puzzle mechanism.
Options *Optional printed letters
Printing
- Do not print with supports
- Print at reasonable speeds
- Use filament that won't blob or string
- Make sure your print bed is prepped and cleaned for optimum bed adhesion
- If you add a fuzzy skin texture to the print, ONLY add it to the exterior of the outer shell.
Verify a Successful Print
After printing the main puzzle and the puzzle key, you should be able to tell if your puzzle is solvable by checking the following:
- The puzzle will rattle easily when shaken.
- Parts on the bottom of the puzzle will wiggle when lightly pushed.
- The largest concentric circle on the bottom of the puzzle can rotate by hand.

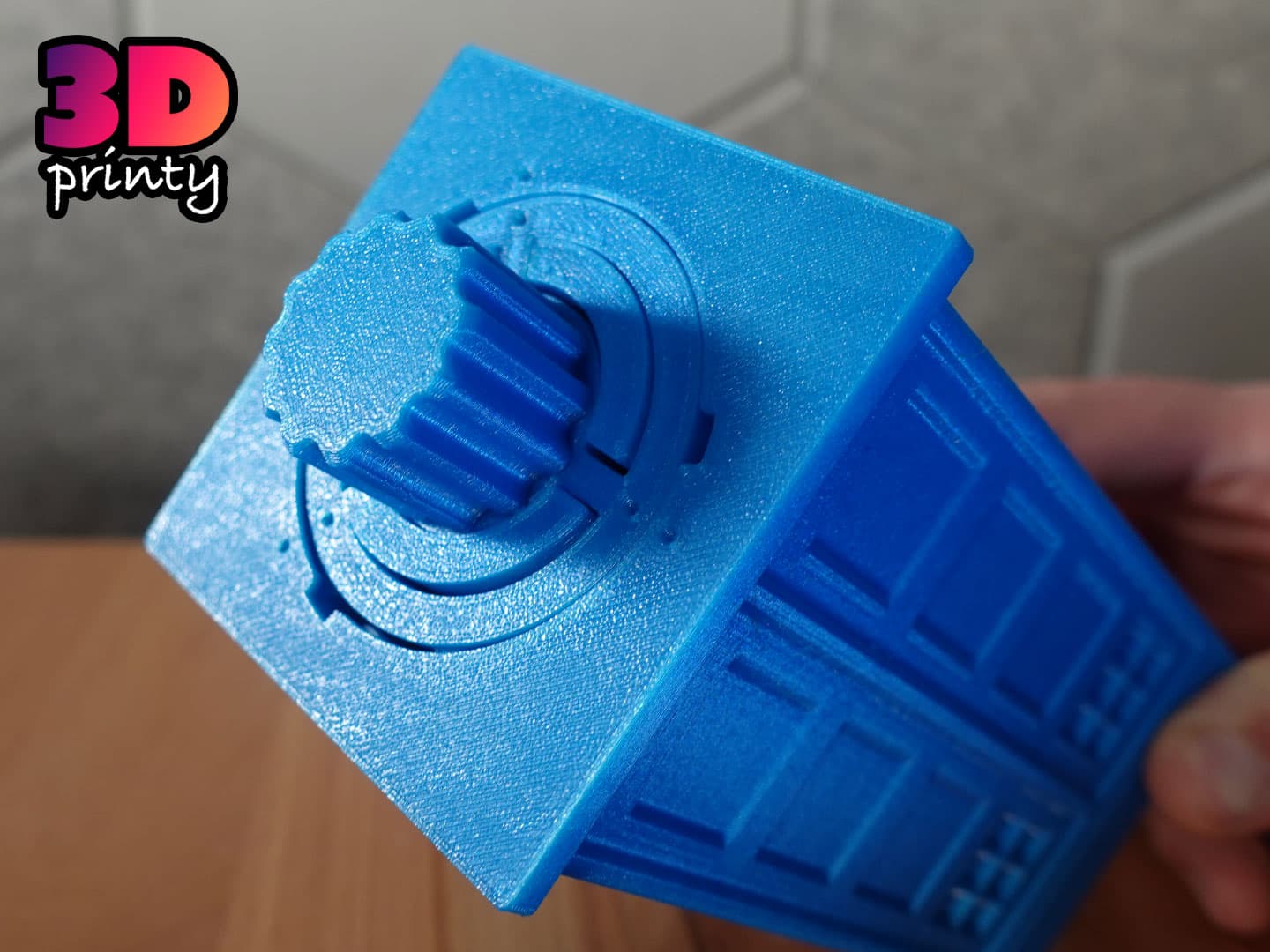

- The key will fit inside the key hole in the bottom of the puzzle.
- The key will be able to rotate after its inserted into the bottom of the puzzle.
Assembly
None, unless you choose to add the optional glue-in letters.
Spoiler Alert: Puzzle Solution https://www.youtube.com/shorts/yY4Uzi4Dof8
Can I sell copies of this?
Yes! This project was shared under the Creative Commons - Attribution license.
This license allows selling copies, but you must provide proper attribution, as detailed in the license itself.
Please note that any other projects linked here (remixes or related projects) may have a different license. Please respect those licenses.
This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
