Double Diamond Christmas Ball

###About the Design
This is a new variation on my Christmas Balls with Integrated Stems and diamond patterns.

###Not To Be Sold
**I'm sharing my files so that you can make them for yourselves or give them away as gifts. I hope you enjoy them. I do not authorize sale of my work by anyone. Please don't ask me.**

###Resizing
These should scale up well, but I'm not sure how much smaller you could print them using a consumer FDM printer. Using a resin printer, you could probably print them much smaller.

###Print Time
About 4.5 hours.

**PRINT SETTINGS**
The trickiest parts to print is the top of the stems. Using FDM, if you don't temp, speed, flow, and cooling right, the thin parts of the stem will melt as you print. Thinner walls help. If that's not enough, try increasing the layer height. I decreased the print temp from my usual 200 to 190 for this, decreased the flow from 115 to 105, and increased the outer wall speed from 20 to 30 mm/sec. That was enough to go from stem that was molten goo to one that printed perfectly.

*Thickness*

* Layer thickness: .15 mm
* Wall thickness: 0.4 – 0.8 mm.

I had the best results using Cura setting the default width to 0.4 mm with an alternate extra wall.

*Infill*
This does not need any infill. JUST DON'T DO IT.

*Speed*
* Outer Wall: 30 mm/sec
* Inner Wall: 30 mm/sec
* Top/Bottom Speed: 30 mm/sec
* Travel Speed: 50 mm/sec

*Build Plate Adhesion*
I relied on the supports for build plate adhesion.

*Supports*
You will probably need supports for both bed adhesion and the overhang on the first few layers. You shouldn't need supports for the loop at the top. Adding them would just increase the chances the supports broke and caused the print to fail.

* Support Structure: Normal
* Support Placement: Touching Buildplate
* Support Overhang Angle: 49 Degrees

I added a support blocker 75 mm x 75 mm x 110 mm set 15 mm above the build plate so that the supports would only be added to the bottom of the ornament.

Double Spiral Christmas Finial 2024

Finial Double Spiral Whole.stl

Lantern Christmas Stretch Ornament 2024

Stretch Lantern v2.stl

Swoop 14 Christmas Tree Topper 2024

Topper Swoop 14 Whole.stl

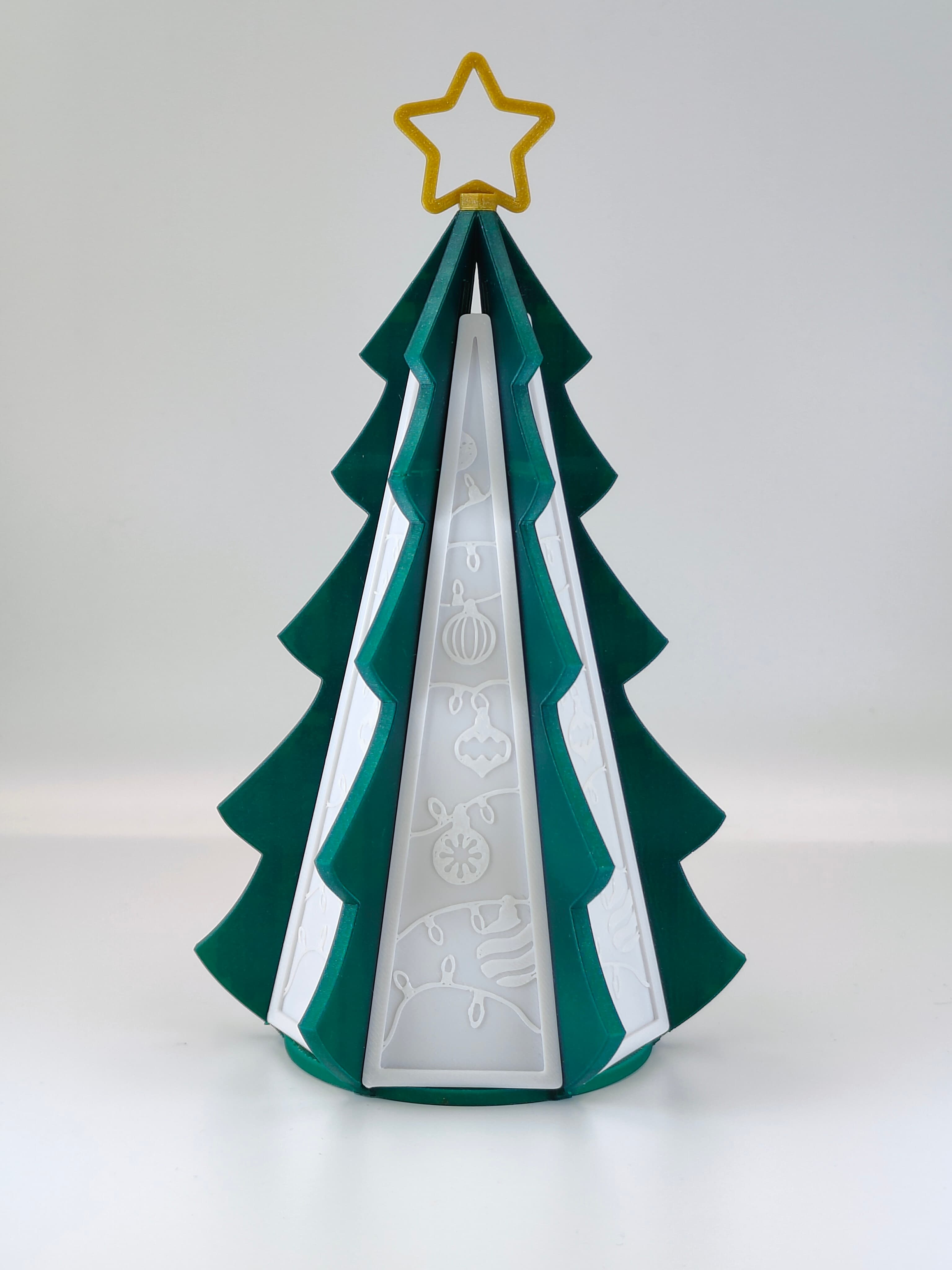

Christmas Tree Tealight Lamp
