Get commercial license and download newest models cheaply- https://www.patreon.com/goodesign
※ This is a science teaching materials for decorative or educational purposes.

The Saturn V rocket gained a lot of popularity. So, to respond to the popularity of those fans, I planned and designed a lunar lander with related items. However, this item was very difficult to design.

Above all, there was great difficulty in designing the bridge. The moving structure was complex, but its thickness was very thin, making it difficult to realize. This was a very big challenge for me. So some modifications were inevitable, but most of them were realized.

And most of all, I feel a great accomplishment in expressing the texture of the Lunar Module Thermal Blanket (Foil). By expressing this, it shows more realistic completeness than any other Lunar module.

There are a few precautions to take when printing and completing this design.

Silky filament is very effective when printed, but the physical characteristics of this filament are very soft and weak, so care must be taken in this regard.

The Rcs Thrust Chamber Assembly Cluster, which is made by folding, comes in two pairs of two shapes. Before attaching them with adhesive, please fold and check whether the pair on the entrance side and the pair on the opposite side (back?) fit well before attaching them.

In addition, please check the location of small parts such as various antennas by referring to photos and videos before attaching them.

The joints of the landing gear are very small and delicate, so if you move them too much, they may wear out and fall off, so it is better to display them rather than play with them.

If this joint is loose from the beginning, increasing the material flow or extrusion multiplier will make the joint stiffer.

Please remove the support attached to the landing gear of the lower body (Rover) before assembly.

Lunar surface sensing probe can be optionally attached if necessary.

Please check out the video for more details on printing and assembly.

Print and build video - https://youtu.be/EWEagKUZnA8?si=D3g59pAq7f192TZI

I hope lots of love from spaceship and rocket fans.

Apollo 11 Lunar Module

GOODesign_Ascent_Stage_Mid.stl

Get commercial license and download newest models cheaply- https://www.patreon.com/c/goodesign

The spacecraft designed this time is SLS -Space launch system Block 1, which launched Artemis 1.
This rocket is an item that has been requested by many customers.

The assembly process is very simple, but please align before assembling to prevent wrong joint.

If the Solid Rocket Booster on both sides is connected incorrectly, the upper and lower parts may not match, so please check beforehand.
The Solid Rocket Booster and Core stage parts need to be glued together to make them strong.

The X-shaped frame of the interim cryogenic propulsion stage is folded and connected. Be sure to check the position before gluing.

The device connecting the solid rocket booster and the core stage should be connected with the bottom facing downward.

The solar panel of the Orion capsule is connected by exchanging the folded and unfolded ones, so you can replace them as needed.
The folded solar panel can be folded and attached using adhesive.
The unfolded solar panel has a hinge, so it can express a slightly folded state.

When connecting Solid Rocket Booster and Core stage, check the shape and location of the hole at the bottom before connecting.

Please refer to the video for detailed process.

https://youtu.be/QPSA_lYdnKc?si=HVKfpgh5btnpTHsd

It is hoped that Artemis 1's mission will be successful and humans will be able to go to the moon again.

1 : 144 scale

Largest part in printing, size = X 199mm, Y 194mm, Z 199mm, After full assembly size= X 135mm, Y 68mm, Z 682mm

Total Build Time : 119h 05m / Plastic Weight : 474.6g
Design by GOODesign

SLS Space Launch System Block 1

GOODesign_SLS_ICPS.stl

Get commercial license and download newest models cheaply- https://www.patreon.com/goodesign
After I built the foldable space shuttle, there were many requests to make a rocket booster. In fact, while making the foldable space shuttle, I made a concave shape inside the landing gear cover so that I could make and mount a rocket booster. It was my big plan, and many requests from you have made it. Thank you.

※ The folding space shuttle is not included. The folding space shuttle can be downloaded here. ※
Foldable Space shuttle download link- https://than.gs/m/1285571

This time, I designed a brief launch pad for the space shuttle and the rocket booster. If you have a lot of requests, I can build an entire launcher in the future.

The making process is very simple. However, if there is any loose part after completion, use adhesive to fix it firmly.

https://youtu.be/O3l_tQi-QOg
https://youtu.be/8UluxFVxVK8

Scale about 1:180

Size, when all parts are fitted X 155mm, Y 155mm, Z 337mm

Space shuttle Rocket booster

GOODesign_Space_shuttle_Rocket-booster_Base.stl

Get commercial license and download newest models cheaply- https://www.patreon.com/goodesign
Projects in Space X are going well now. With the success of several launch trials, the form of the prototype is gradually taking shape. The Starship prototype we designed before became very popular, and customers continued to ask for the complete Starship design, so this time we designed this for Starship Cargo.

Its main features are:

1. Depicted a honeycomb-shaped heat-resistant tile that protects the hull from burning when the Starship enters the atmosphere.
2. The design of the booster has been changed to the form that is currently being produced.
3. A structure that opens and closes the hangar is applied.
4. A structure has been created that can load specific cargo inside the hangar.

https://youtu.be/c9b7t_SXMwY

caution.
1. To make the booster stronger, set the Infill to 30% or higher.
2. Fix loose parts more firmly with adhesive.

If you are having problems with printing, check out our printing tips.

https://fab365.net/print-tips-list

In the future, I plan to make a number of Space X products as designs for 3D printing.

Please submit your requests to Fab365 Requests.

Scale 1 : 144

Biggest part size x 63mm, y 63mm, z 184mm

SpaceX- Starship Cargo

GOODesign_StarShip_Booster.stl

Get commercial license and download newest models- https://www.patreon.com/goodesign
* This item does not include the Saturn V. *  

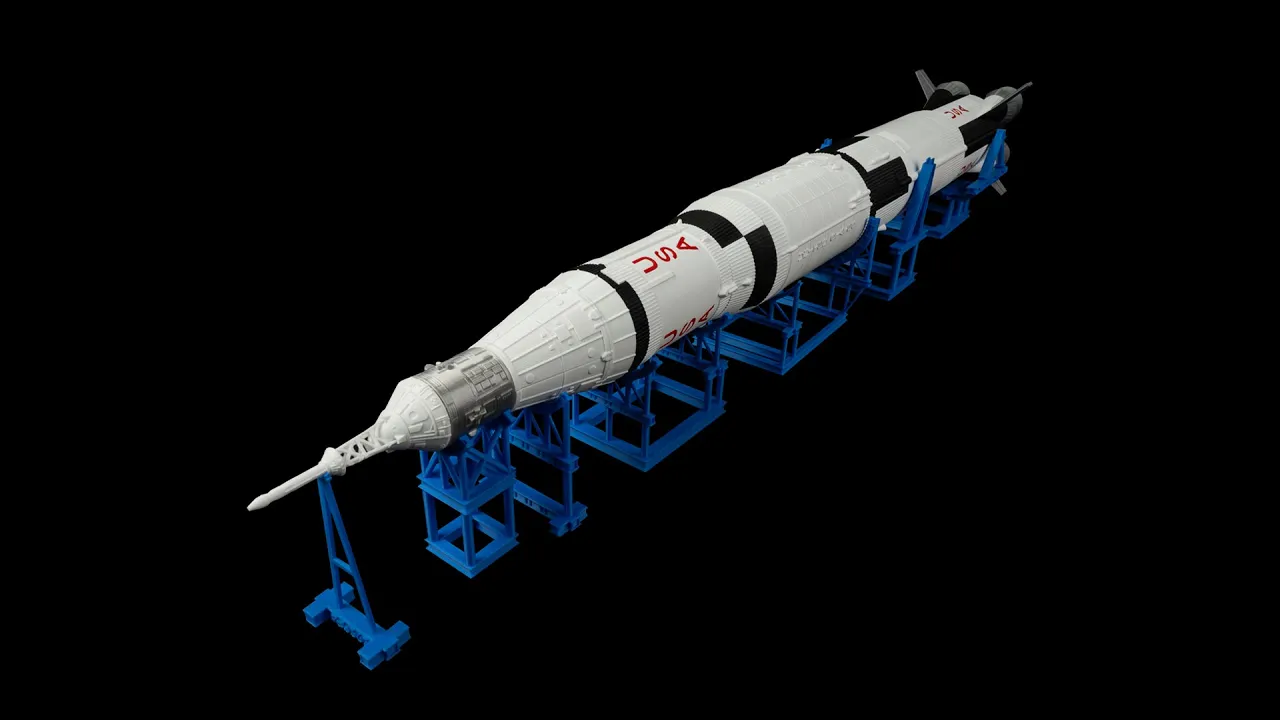

I designed a stand to display the Saturn V rocket which was very popular with our customers.
The design of this display stand was referenced from Kennedy Space Center, which displays the actual Saturn V rocket, and the exhibition structure at Kennedy Space Center.  All stages of the Saturn V rocket can be displayed connected or separated.  Since the Lunar module is left behind on the moon, we designed a stand that represents the lunar surface for the Lunar module.  
Please check the video for the assembly process.  
We hope this Saturn V rocket display stand brings a space rocket museum to your home for you to enjoy.

Display stand for Saturn V

GOODesign_Lunar_Module_Stand.stl

I've finally completed the Saturn V rocket that spacecraft/rocket fans have been constantly asking me to build.
Features of this design include:
1. The process of launching this rocket, landing on the moon, and returning to Earth was all reproduced as desired.
2. Efficient color segmentation tried to color the prototype Saturn V well.
3. I tried to express all the details based on various materials.

This design, like the other rockets I've designed, is large and has a lot of parts, so it will take a long time to complete a print.
There are a few things to note about this process.
1. Depending on the separation phase of your rocket, there are things you can and shouldn't use glue for. Please check this carefully.
2. The characters are slightly skewed for better printing. Please check the direction of this tilt carefully and put it in advance before bonding.
3. Fold the escape tower well and insert it well into the hole at the bottom of the launch escape system and insert it well into the hole at the top of the boost protective cover. And use adhesive to fix it, so you have to be careful to fit it vertically.
4. The lunar lander's landing gear fits well by turning and twisting it like the pistons of the heavy equipment I designed. These landing gears have a slight indentation where the U-shaped structure fits, care must be taken not to break this part.
5. Alphabets are written from A to D on the booster stabilizer fin of the first stage rocket. Please check this order and the position where they fit.

As always, we hope for a lot of support from fans in the aerospace field.

Total Build Time : 7d 1h 6m / Plastic Weight : 756g

1 : 144 scale
Largest part in printing, size = X 96mm, Y 96mm, Z 132mm, After full assembly size= X 96mm, Y 96mm, Z 776mm

Design by GOODesign
