In the meantime, there have been numerous requests for us to make airplanes. However, due to the nature of the shape of the airplane, there are many thin parts, so printing and assembly are difficult. So while designing other things, I continued to explore the possibilities. And I decided that I had accumulated enough experience and know-how, so I finally made it.

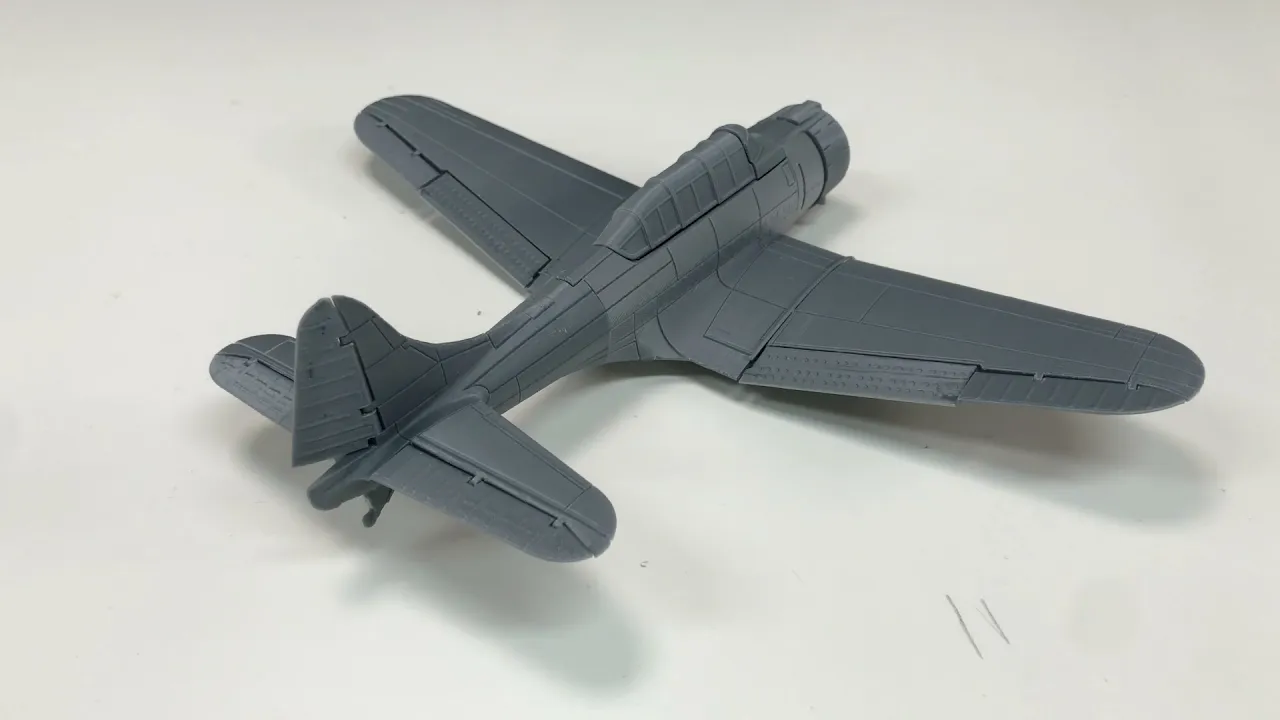

A Dauntless SBD dive bomber that was very successful in defeating the Japanese at the Battle of Midway.

The difficult part in designing this plane was to assemble it separately so that the angle of the flaps on the wing could be changed. For this I made small custom supports on the wings and flaps. These supports can be easily removed with pliers or cutting nippers. However, if these supports are not completely removed, the wings and flaps will not be connected, so please be careful that the supports are completely removed. It would be nice to trim it using a cutter.

There are a few caveats to printing and assembling this plane.
1. If you apply excessive force while connecting the flap, it may break. When printing the flap, it is recommended to set the infill to 100% and print very strongly.
2. It is recommended that the flap be fixed at the desired angle with adhesive.
3. To prevent the wheels from swinging, I made a clip that the original plane didn't have, so if you put it on, the wheels will not swing.

Please refer to the video for the printing and assembly process.
https://youtu.be/al63fmKa4BI

We wish you a lot of love for this first 3D printed airplane we designed.

1 : 48 Scale
Largest part in printing, size = X 96mm, Y 134mm, Z 83mm, After full assembly size= X 264mm, Y 211mm, Z 74mm

SBD Dauntless Dive Bomber

GOODesign_SBD-Dauntless-Dive-Bomber_Fuselage.stl

Get commercial license and download newest models cheaply- https://www.patreon.com/goodesign
I designed the F-117 stealth aircraft in a foldable way, which greatly improved the technology of modern military aircraft.

When this plane appeared, I was personally very shocked. Its straight, angular shape made it seem impossible to fly due to the resistance of the air. It was like an airplane made with alien technology.

This appearance influenced many fields and created an opportunity to radically change the exterior design of automobiles and computers.

There are many opinions that the flap structure of the previously designed airplane wing is difficult to print, so we designed a new structure this time. It will be much easier to print.

Before folding the body of the plane, I must first remove the support I designed custom.

These custom supports are located on the aircraft body and wing.

A space for AAA batteries is provided to prevent the airplane from tilting backwards. Before folding the body, put in exhausted AAA batteries and fold the body.

If you don't have batteries, you can use this as we made a stand like the A-10 we designed earlier.

Missiles appearing while the hangar is open can be applied by placing it on the display stand.

The display stand can accommodate landing gear and missiles.

https://youtu.be/MZK_K187IFw

1 : 72 scale

Largest part in printing, size = X 110mm, Y 147mm, Z 110mm, After full assembly size= X 194mm, Y 291mm, Z 61mm

total weight = 195g
