STOP z wobble!

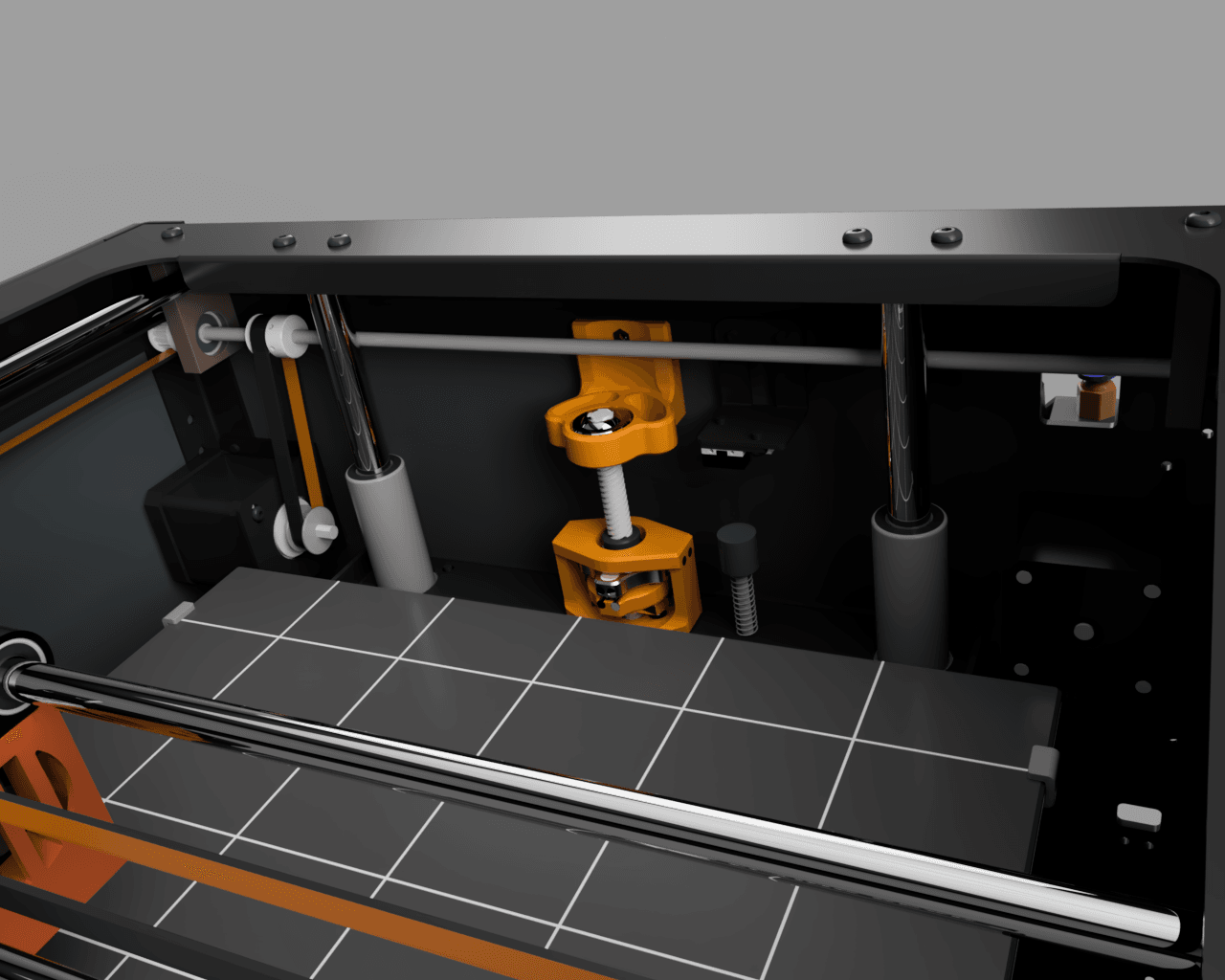

Decoupling system using the "WobbleX" (By Hevort/MirageC) for Flying Bear Ghost 5.

The entire project serves to create a coupling with play of the T8 acme screw so that it can move eccentrically without affecting the print.

Eliminates z wobble due to crooked acme screw.

the file "Optional_Spessoremotore+4mm.stl" is optional, and is used to add print volume in height. if you want to install it, it must necessarily be mounted together with the F5-10M axial bearing.

Purchase list necessary for the correct assembly of the mod: [1x] WobbleX (Model:WS8) [4x] Pin 3mm L15 pin [1x] Flexible coupling D26L26 (Model 5x8) [2x] Nut M3 DIN 439 (Low profile) [1x] Axial Bearing F5-10M (Optional) [1x] Radial bearing GEBJ8C [2x] screw M3x6 DIN7991 [2x] screw M3x10 DIN7991 [2x] screw M3x10 DIN7380 (Optional, for thickness +4mm)

Tools needed:

2mm Allen key [included with Ghost 5 printer]

ATTENTION:

the M3x10 DIN7991 screws are installed close to magnets, so they MUST NOT BE MAGNETIC.
