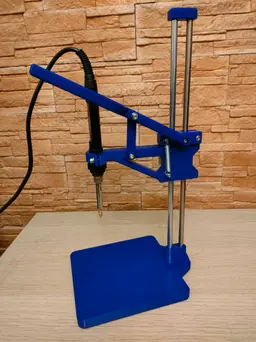

Soldering Iron Press for Threaded Inserts

161 downloads · 2 years ago · This is model of soldering iron press for threaded inserts. For this stand I used an old 2 pc 8x370m

Description

This is model of soldering iron press for threaded inserts. For this stand I used an old 2 pc 8x370mm rods from my printer( rods have groves so were useless in 3d printer) and 2x LMU08 bearings. Parts were printed in Bambu Lab PET-G Basic Blue filament.

Threads M4 in base and end cap was tapped in the material. In slider I used a M4 threaded inserts. Tap is to long to make the thread inside this hole.

Used items: 8x370mm steel rods from printer-2pc LMU08 berings -2pc Tension spring 30mm long- 2pc

Fasteners used: Screws: M3x25mm Socket Head Screw- 2pc M4x8mm Socket Head Screw- 6pc M4x25mm Socket Head Screw- 2pc Nuts: M3 Nylock Nut- 2pc M4 Nylock Nut- 5pc Washers: M3 washer- 4pc M4 washer- 8pc Inserts: M4x8mm threaded insterts- 2pc

Material: PLA, PET-G, ABS, etc.

Layer High: 0,3 or lower ( 0,2 will be good)

Support needed under rib in slider.

Tags:

Community Makes (1)

Great model, and an easy print. I uploaded a remix for a different base plate--it's much more stable attached to a heavy block of wood. I also omitted the springs and simply tightened the screws a bit more. Fits my Ryobi 18V soldering iron perfectly.

Community Makes (1)

Discussions

delturcious1 year ago

Great model, and an easy print. I uploaded a remix for a different base plate--it's much more stable attached to a heavy block of wood. I also omitted the springs and simply tightened the screws a bit more. Fits my Ryobi 18V soldering iron perfectly.

andr00ahayes19672 years ago

Instead of tapping the PETG could threaded inserts be used? are the holes ok for M4 threaded inserts or would I need to drill them out or adjust them in CAD?
