ATX motherboard test stand

This model is restricted by licensing terms.

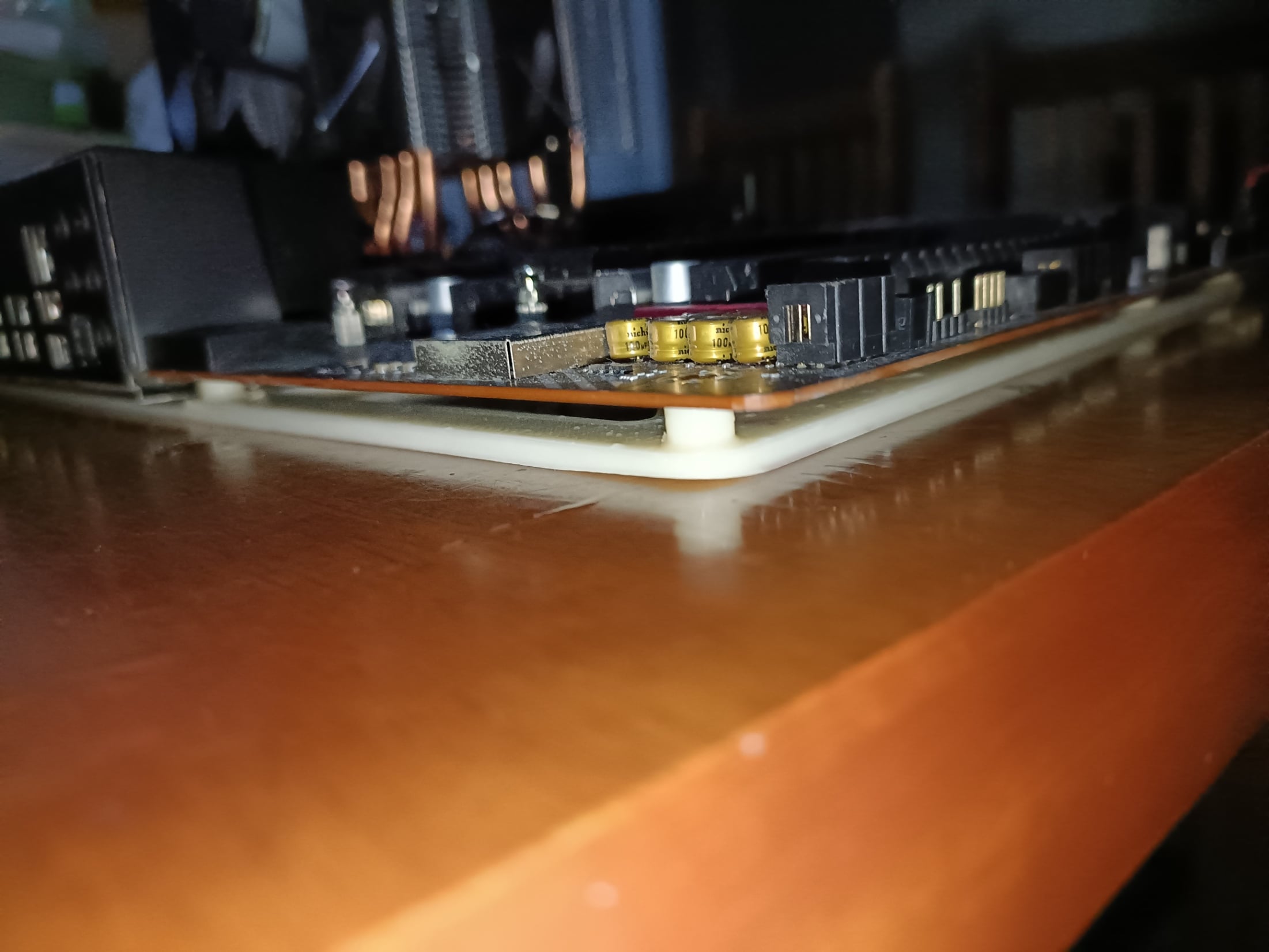

I want an easy way to prevent the motherboard from touching the work surface while I'm testing/troubleshooting.

Drive an M3 screw through the center hole to use it to locate the motherboard in position. It is possible to put the rest of the screws in but I don't plan to use them, my objective is to prevent the stand from slipping away accidentally while doing testing/troubleshooting.

I might expand on this to use threaded inserts instead and attachments to hold PSU, HDD, or support heavy PCIE components like GPU.


Want to buy me a coffee? https://www.buymeacoffee.com/zer0s

Clicking on my affiliate links below will give me a small kickback if you purchase something. (at no extra cost to you)

AliExpress affiliate link: https://s.click.aliexpress.com/e/_DeAZr9P


Consolidated affiliate links of other 3D printing-related items: https://wp.me/peMLu6-j

For Amazon affiliate links https://wp.me/peMLu6-2C


Discussions
A J
jolly0001

Nice! Just need to figure out a good way to add support for the pcie cards
