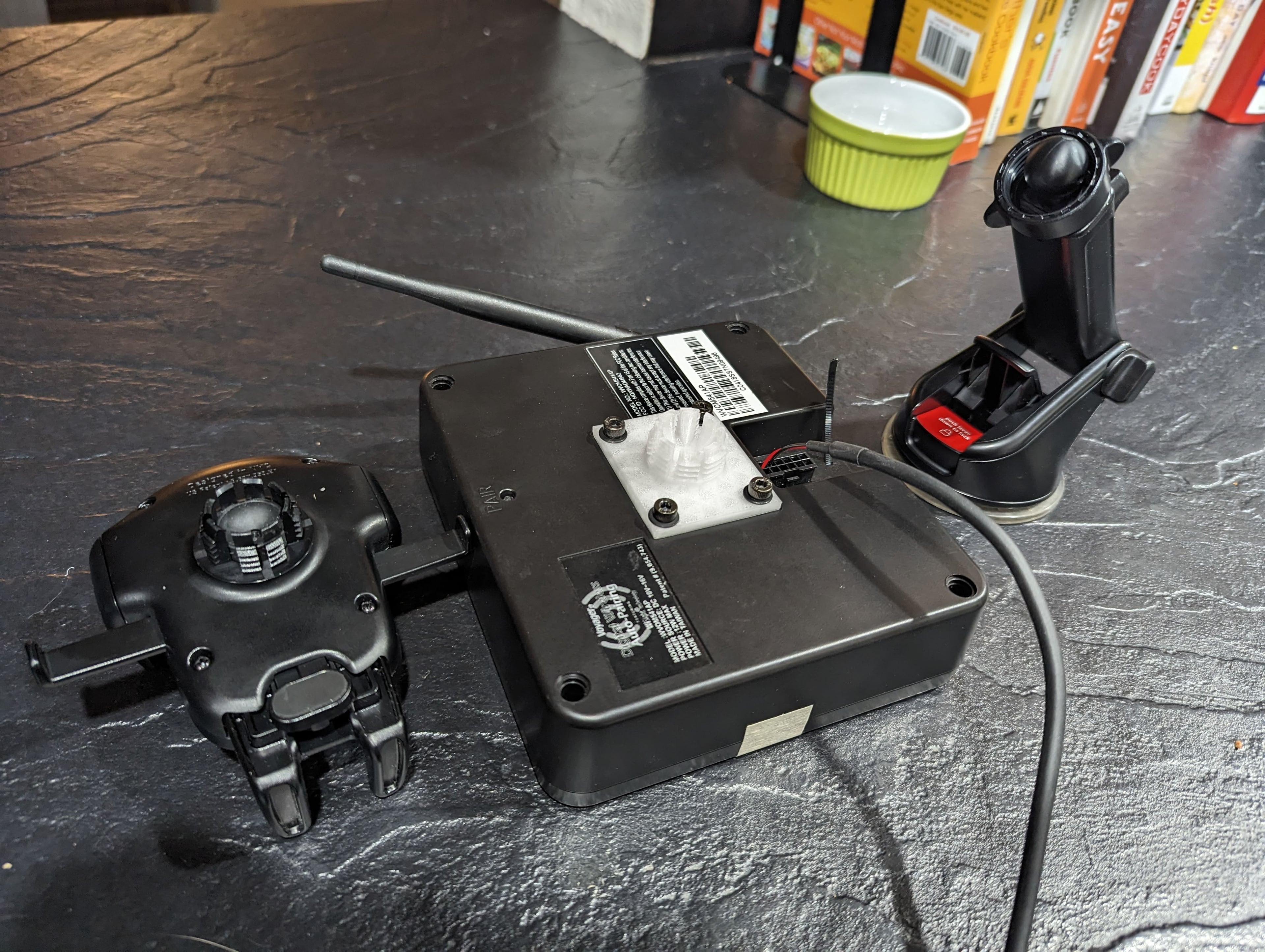

3d Printed Adapter to connect an iOttie Suction Cup phone car mount to a voyager wireless backup camera monitor.

iOttie threads are 24mmx2mm, and need a small non-threaded lead in area. The receiver ball is about 16.9mm, but you need to make the threaded claw a touch smaller so it grips correctly.

Voyager Monitor uses a 49mmx41mm back plate with 4mmx0.7mm screws spaced in a 38mm x 30mm square.

This should be printed in PETG or similar semi-flexible material for the temperature and flexibility to be used in a vehicle. PLA is probably not going to hold up to the heat or flexing needed to mount to the ball.

STEP and Fusion360 models included.
