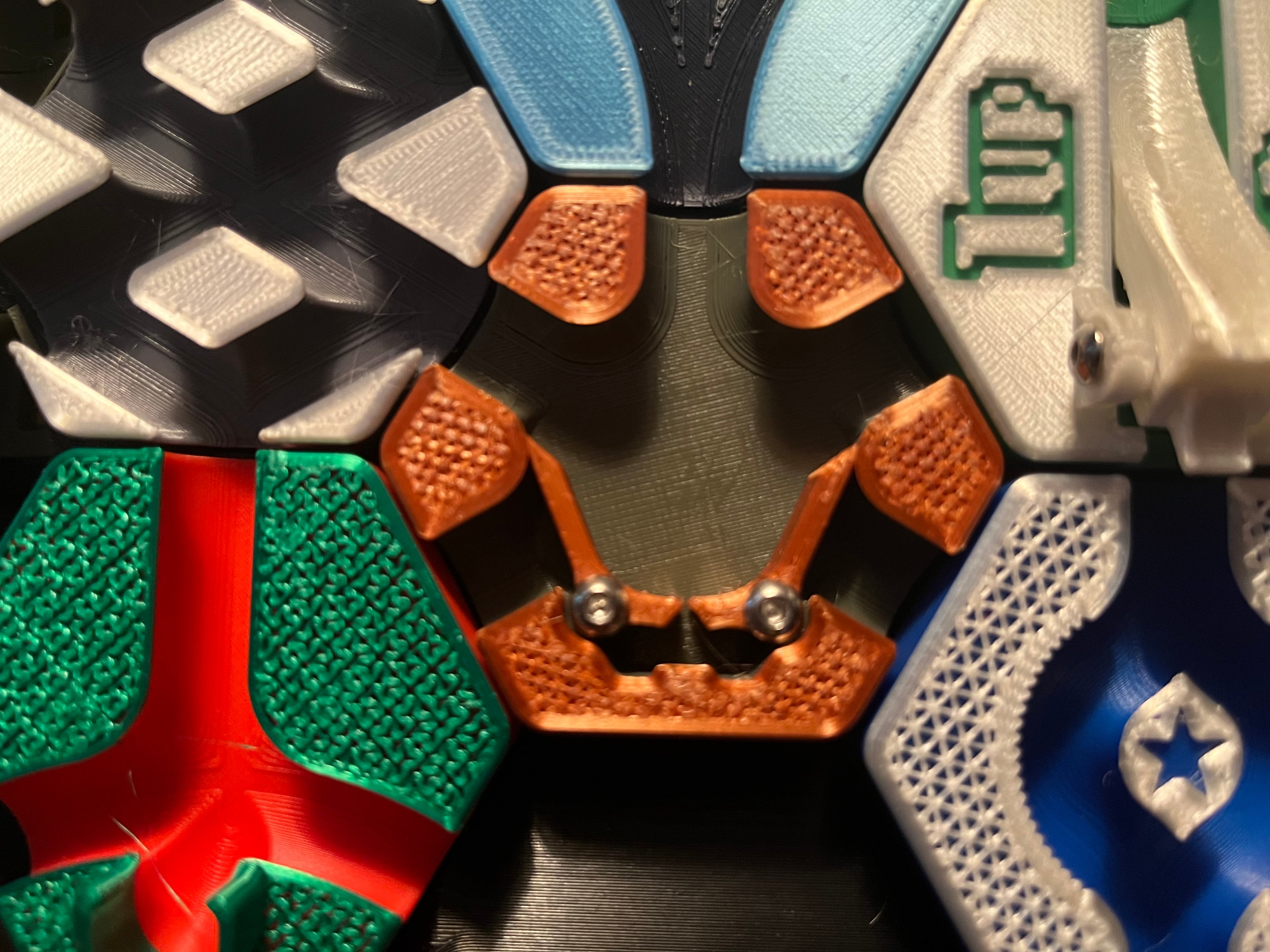

Divert Tile

Introducing the divert tile: the ultimate strategic tile for your game of hextraction. It is a customizable trap tile with four different ways to set it up! When the trap is closed, it also works as a 50/50 randomizer.

-- Printing -- All models are scaled up 10x. Print one base and two arms for each tile. The tile needs two 12mm length M3 screws: one for each arm. Don't tighten the screws too much - leave the arms loose with as little friction as possible (a resting ball should be able to close the trap).

Thanks and have fun!

  • Andrew
Community Makes (1)

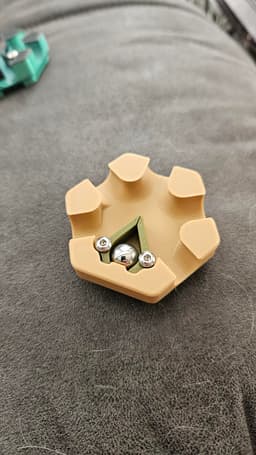

Works great ! I used 14mm button screws, the perfect length to put them almost flush with bottom
Works great ! I used 14mm button screws, the perfect length to put them almost flush with bottom


Community Makes (1)
Works great ! I used 14mm button screws, the perfect length to put them almost flush with bottom
Works great ! I used 14mm button screws, the perfect length to put them almost flush with bottom

Discussions
czechyour6
czechyour6
Works great ! I used 14mm button screws, the perfect length to put them almost flush with bottom
Works great ! I used 14mm button screws, the perfect length to put them almost flush with bottom  3d model
PrinterPrusa MK4
MaterialPLA+
Layer height0.2 mm
Infill density25 %
SupportsGrid - Manual
