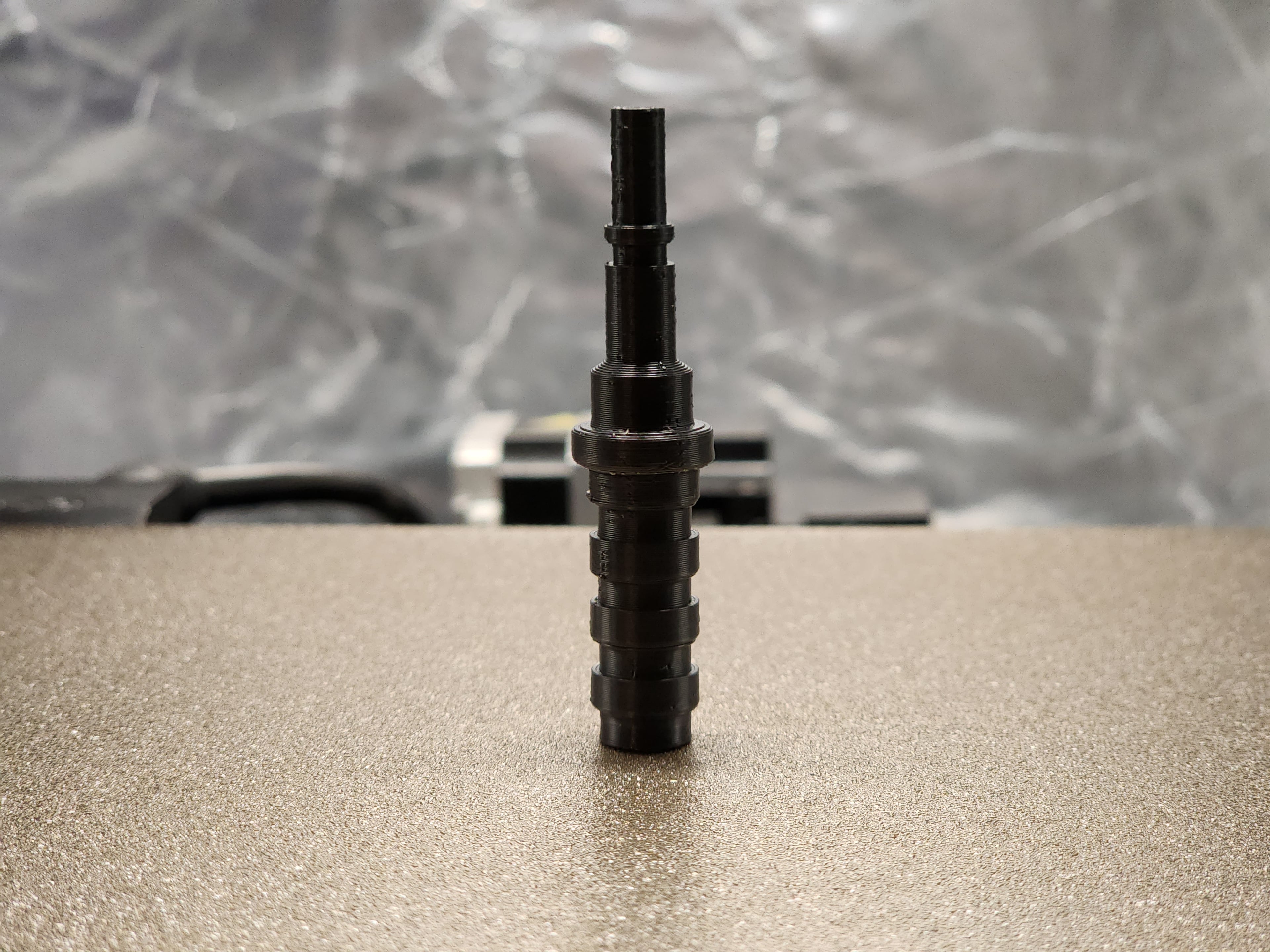

Drain Nozzle for LG Portable AC and Heater
16 downloads · 4 years ago · This is meant to be an alternative to LG part number COV36133186 for the LP1021BHSM Portable AC/Heat
This is meant to be an alternative to LG part number COV36133186 for the LP1021BHSM Portable AC/Heater (It may work with other units). This was designed to fit standard 3/8" ID clear tubing.
This is my first attempt at making a 3D model, but I was inspired to learn thanks to LG's official parts reseller charging $60.95 for a small piece of plastic and clear tubing.
My Print Settings:
- Polymaker ASA
- 0.2mm layer height
- 99% infill
- Tree supports
- Randomized Z seam (helps create a better seal for the hose)
- Print time ~33 minutes
