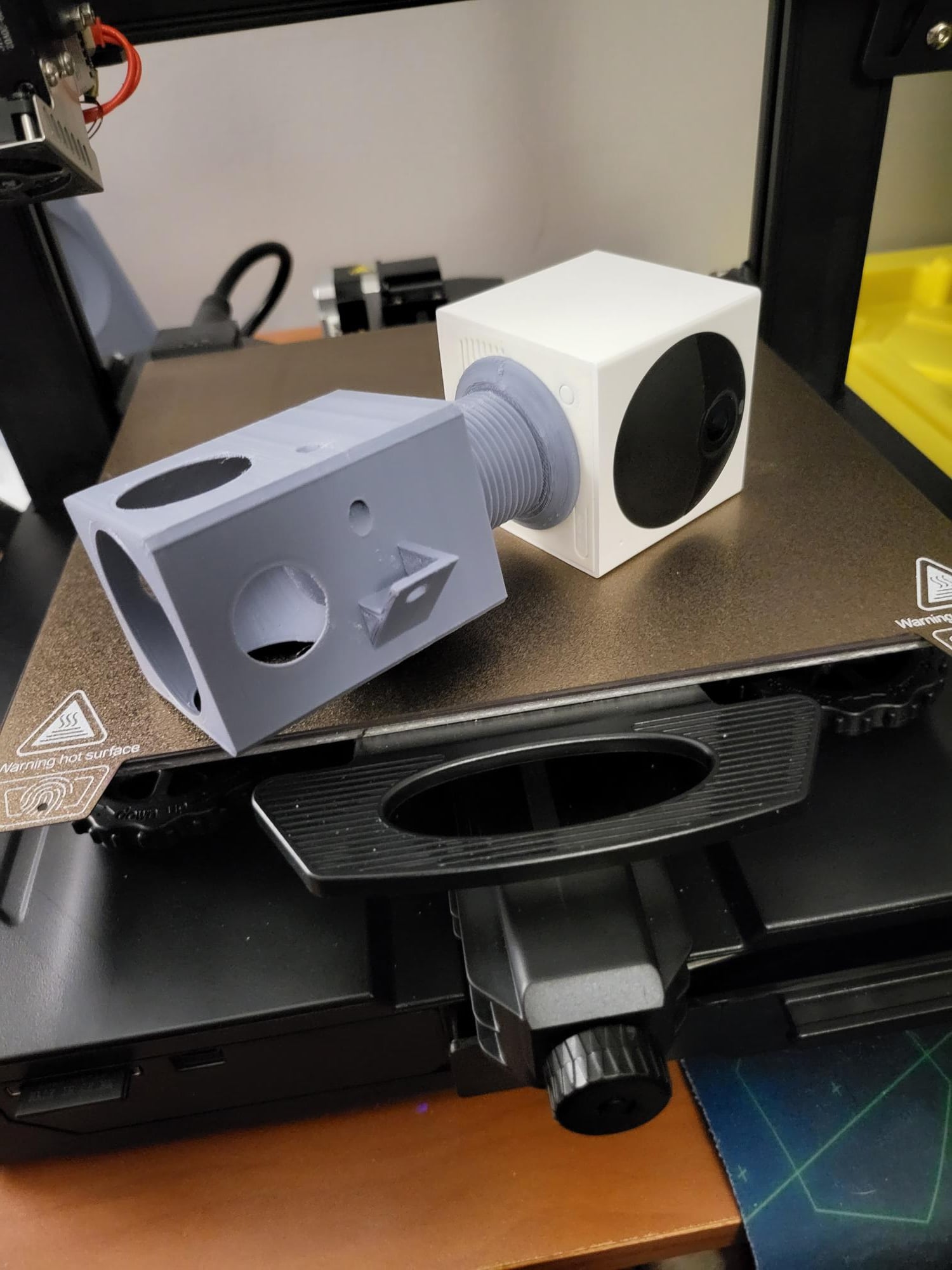

Ender 3 S1 Pro Wyze Camera Mount

Just a simple functional camera mount, can be mounted to edge of printer using the top hole and screw, base has a cut through for the allen wrench to access the screw, can also be turned upside down and threaded from other end to mount on opposite sides. Uses standard 1/4 x 20 thread may work with other cameras although mount has base formed for bottom of wyze cams. Uses 33mm bore on base and 32mm on threaded rod for easy screwing and unscrewing after print. I used supports just on the backet with hole on base, and for the threaded tower.


Discussions
Don N
eclypse3demons

I just started modeling this is my first camera mount for my Ender 3 S1 Pro it has a variable height adjusted main thread you could extend it more but the build height is only 270mm so its good for watching prints.
