Version 3 Update: increased the size of holes for easier fit of m5 screws

HI Thanks for checking this project out. If you can, please consider tipping, every little bit helps. Thanks, I hope you enjoy a wonderful day and take care :) https://paypal.me/3096kit

___> 18+ years or with Parent/Gaurdian Discretion and Supervision********NOT FOR YOUNG CHILDREN*****SERIOUS RISK OF DANGER, DEATH, INJURY, OR DAMAGE IF USED INCORRECTLY OR IRRESPONSIBLY****

By downloading and using this adapter (or a 3096 Kit) your are accepting all responsibility and full liability for all actions, effects, and affects during manufature and use of this adpater (or 3096 Kit), this is to include any modifications.

Important: Below - Copy&Paste or click lnks to the URLs below to watch the Video/s; they include: important precautions, instructions, and other pertinent information.

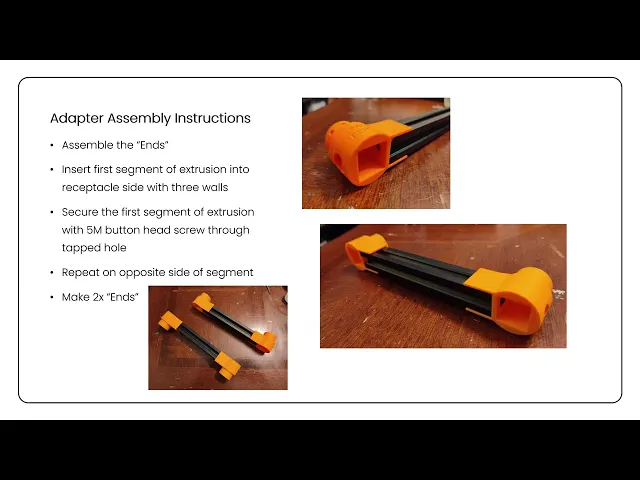

-Assembly Instructions - https://youtu.be/C4gbdv570fw -3096 Kit Information - https://youtu.be/aNQcqaGd5Ss -Remote Control Rx/Tx kit that I had used - https://www.youtube.com/watch?v=5hUZ9TYRY3w&list=LL&index=6 -Hole Placement Jig - https://www.thingiverse.com/thing:7359667

More Patent Pending Adapters will be available on Thangs.com Very Soon, check back for updates!

MULTIPLE PATENTS PENDING

NOTES BELOW:

___> 18+ years or with Parent/Gaurdian Discretion and Supervision********NOT FOR YOUNG CHILDREN*****SERIOUS RISK OF DANGER, DEATH, INJURY, OR DAMAGE IF USED INCORRECTLY OR IRRESPONSIBLY****

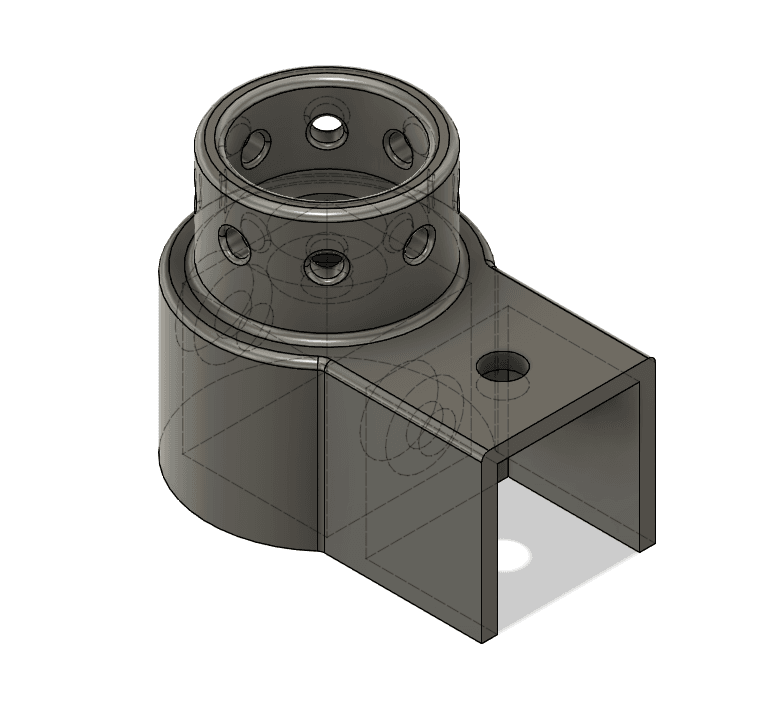

This adapter connects two segments of 2020 extruded aluminum at 90 deg to a 3/4" PVC pipe connection piece allowing for the creation of a modular framework that can further be developed into an remote-controlled, autonomous, structural frame, the list goes on and on ....

** Notes:

-File needs to be sliced for your printer (I used a .4 nozzle, and most default settings, except: Tree supports for 65% overhang) -I printed "upside down" (with the PVC connection end against the bed), having the supports land in that area is easier, since the tolerances are greater; the other areas should maintain as close to dims as possible). -Used 5mm button heads. -"V" or "T" Slot nuts depending on your project. -The extruded aluminum should be 5M tapped through the end (center hole, middle of cross-section) to whatever length of bolt you will be using.

** If creating a mechanical connection to the PVC utilizing the hole array:

-Holes are for a M4 x 40mm, with washers and two nuts (one to lock); one set per adapter. -Hole placement jig here: (Pat. Pend.) : https://www.thingiverse.com/thing:7359667 -Holes need to be drilled in the PVC 180 degrees relatlive to eachother on a 90 degree tangent 6.5mm from 3/4" PVC connector end (on pvc connector, not adapter).

___> 18+ years or with Parent/Gaurdian Discretion and Supervision********NOT FOR YOUNG CHILDREN*****SERIOUS RISK OF DANGER, DEATH, INJURY, OR DAMAGE IF USED INCORRECTLY OR IRRESPONSIBLY****

Last Note: If you are not old enough to use this yet: do not be distraught, keep up the good work!
