Lamp with Drawer | Push-Push Mechanism | Hidden Storage

This model is restricted by licensing terms.

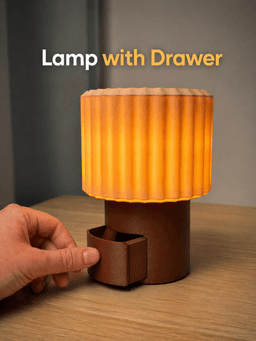

Lamp with Drawer combines ambient lighting with a hidden compartment for small valuables. The push-push system keeps everything clean and easy to access. 💡

  • Push-push mechanism for smooth opening ⚙️
  • Hidden drawer for jewelry & small items
  • Requires 2× rubber bands (1.4×20 mm): 1.) one for drawer ejection 2.) one for pin pressure (mechanism reliability)
  • Correct print orientation for 02_Drawer is essential (see image) ⚠️
  • Supports only for 01_Base (see image)
  • LED light used (LED Lamp Kit Collection)
  • Size: Ø123 mm (shade), height 186 mm
  • Simple screw assembly 🔩
  • Optional: glue 06_Drawer_Face to 02_Drawer
