NEW: Added an Ace-pro V1 to Ace-pro V2 adapter. Free to download on Makeronline: https://www.makeronline.com/en/model/Ace-pro%201%20to%20Ace-pro%202%20Adapter/279394.html?trackModuleType=10

NEW: The model also works with the Kobra 3 V2.

NEW: The model offers two types of drawer front, vertical and slanted. The main print profile has the slanted drawers as I felt it would add a little something to the design. If you want vertical drawer fronts please use the print profile "Anycubic non-slanted drawers.3mf"

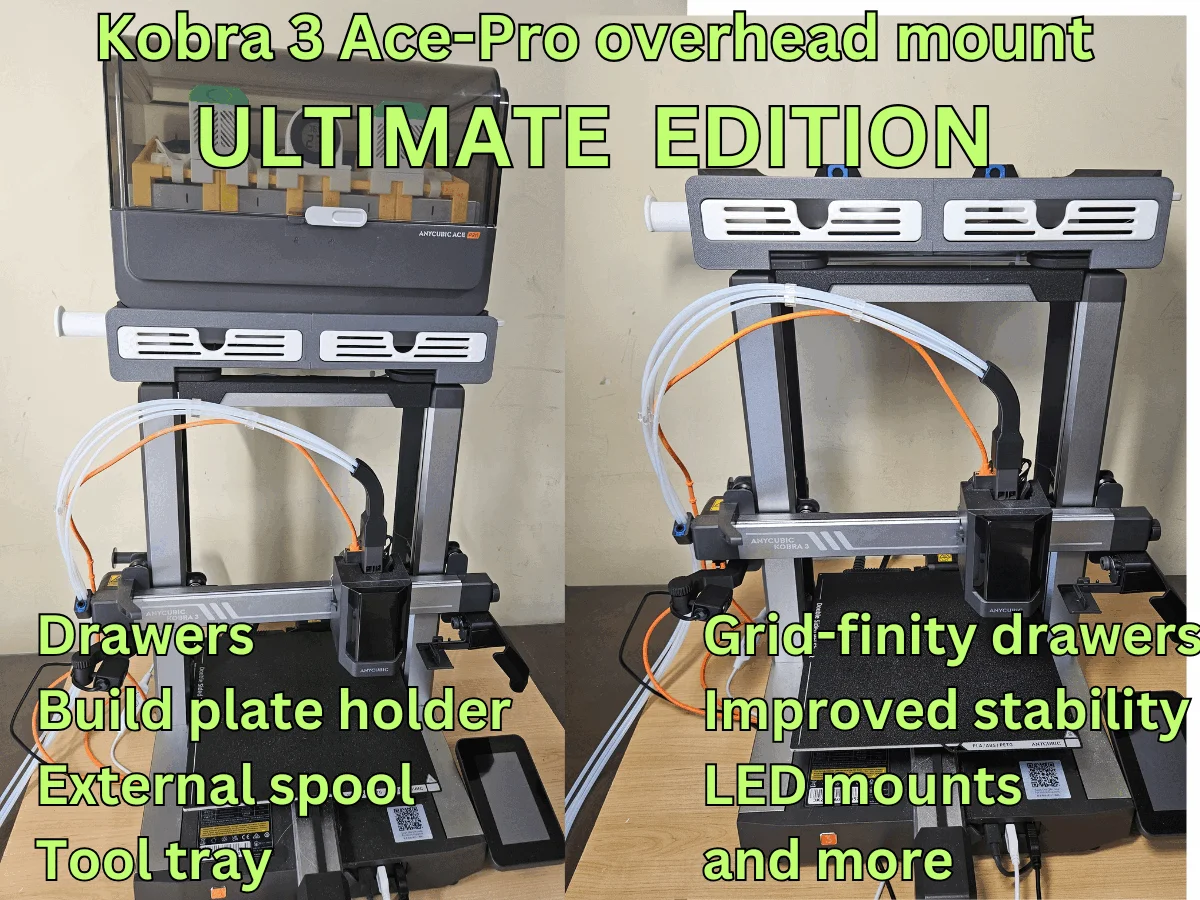

I have been thinking at ways of improving my Ace-Pro overhead mount for some time and I finally got around to it. I wanted to keep it functional while adding numerous new features. This is what I came up with after lots of thoughts and designing.

The Ultimate version offers all of the features of V1 and V2 with the following improvements:

• Two large drawers with GRID-FINITY style compartments (the compartments can be downloaded for free on Makeronline);

• Build plate holder for two or more buildplates;

• Side mounted tool tray (can be can be downloaded for free on Makeronline);

• Side mounted External spool holder (can be downloaded for free on Makeronline);

• LED clips for mounting LED under the Ace-pro overhead mount;

• Re-designed and improved rear extension feet for improved stability;

• Dovetail mounts the sides of the bottom brackets for custom add-ons.

• No external hardware or glue needed for assembly (this is optional)

TECHNICAL SPECS AND INFO

• The build requires a little less than 2 spools of filament.
• PLA and PETG are fine. The design is very rugged so no need to use ABS or ASA.
• The assembled height is 800 mm (31 inches) with closed lid and 1m (39 inches) with the lid opened.
• Unfortunately the parts used for V1 and V2 are not interchangeable with the Ultimate version.
• If you chose to use the LED clips these are mounted using wood screws (see instruction picture). I used a no. 6 wood screw x 1/2 inch (approx. 3.5 mm diameter x 12.5 mm long)

INSTRUCTIONS

IMPORTANT: I have included a print profile (3mf file) for the base unit with all the required parts. I strongly recommend you use this as the parts are correctly oriented and optimized for printing. I have painted support and it is designed to use TREE MANUAL settings.

I have also included a second print profile (3mf file) for the cable and LED clips.

I have also uploaded individual STL files for the parts (many like the 45 degree and middle posts can be used on both sides).

ASSEMBLY

A Gif assembly video with the model description photos shows how to assemble the Ace-overhead. I also uploaded a zip with the assembly photos.

LINKS FOR ADD-ONS

All add-ons are uploaded to Makeronline and available for free download.

NEW AND RECOMMENDED: External spool holder with interchangeable spindles (3 models):

https://www.makeronline.com/en/model/Interchangeable%20spool%20holder%20for%20K3%20overhead%20mount%20Ultimate/185917.html

https://www.makeronline.com/en/model/Interchangeable%20spool%20holder%20for%20K3%20overhead%20mount%20Ultimate/185919.html

https://www.makeronline.com/en/model/Interchangeable%20spool%20holder%20for%20K3%20overhead%20mount%20Ultimate/185920.html

External spool: https://www.makeronline.com/en/model/EXTERNAL%20SPOOL%20HOLDER%20FOR%20ACE-PRO%20OVERHEAD%20ULTIMATE/165792.html

Tool tray: https://www.makeronline.com/en/model/TOOL%20TRAY%20FOR%20ACE-PRO%20OVERHEAD%20ULTIMATE/165794.html

Modular tool-tray: https://www.makeronline.com/en/model/MODULAR%20TOOL%20TRAY%20FOR%20ACE-PRO%20SIDEKICK%20AND%20ULTIMATE%20MOUNT/168485.html

Add-on tray: https://www.makeronline.com/en/model/ADD-ON%20TRAY%20FOR%20ACE-PRO%20SIDEKICK%20AND%20ULTIMATE%20MOUNT/168481.html

Drawer compartments: https://www.makeronline.com/en/model/Drawer%20compartments%20for%20Kobra%20S1%20riser/157319.html

Hot end tray (design by aeromedic7 on MO) https://www.makeronline.com/en/model/Noozle%20and%20hot%20end%20tray%20for%20Kobra%20S1%20Riser%20(Kobra%20S!%20Riser%20by%20Darren%203D%20Prints)/172411.html

Nozzle and hot end compartment (by Brody Richardson): https://www.makeronline.com/en/model/Gridfinity%20Nozzle%20and%20hotend%20compartment%20for%20S1%20Riser/180020.html?fbclid=IwY2xjawKF1ElleHRuA2FlbQIxMABicmlkETFMNmdBd1Bia1NOM2prZlZsAR7auQOcwW2oU3aHYwKsY49Vxl2yY-848MtM7ZOxXPqHeE6gdu08sQR4-sdSfA_aem_PIkve61tzVdUrS1dSXmNdw
