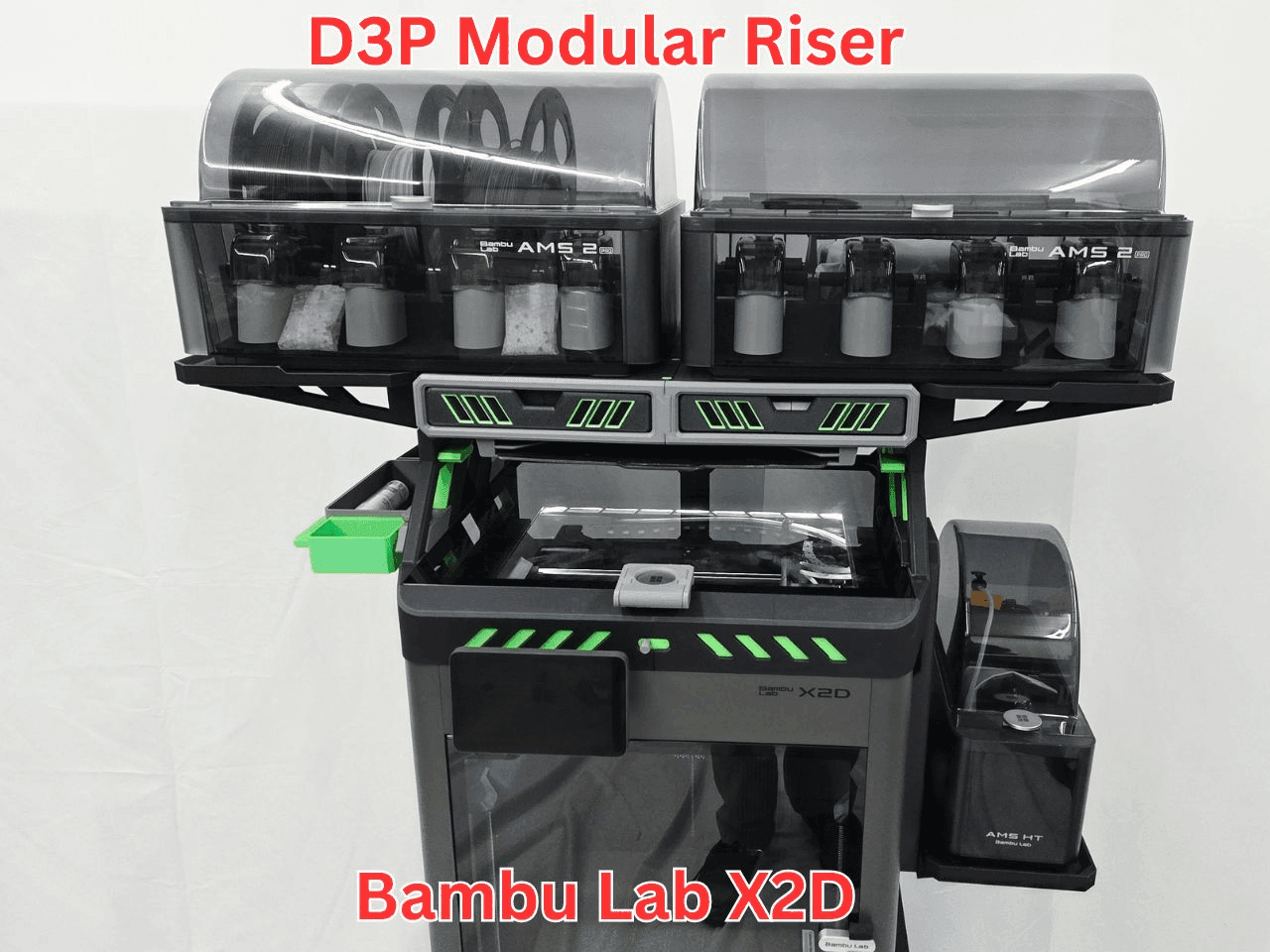

D3P RISER FOR BAMBU LAB X2D by Darren 3d Print

IMPORTANT: This is the same model as the P2S one. I am listing it for the X2D to avoid confusion. If you have the P2S one there is no need to purchase this one as the files are the same. Also, I will be uploading any future upgrades to both models.

NEW be certain to have a look at Dirt-E-Bikes new video on P2S and AMS add-ons. There is a code that he gives that can used to download for free my new AMS 2 Pro holder - cable management system for the rear of the D3P riser (link: https://cults3d.com/en/3d-model/tool/ams-cable-management-system-for-h2-p1-p2-x1-d3p-riser). The cable management addon will work for the P1S, P2S, X1C, X2D and H2 series D3P riser. The video can be seen on Youtube: https://www.youtube.com/watch?v=wP6IHXl1lyg

The D3P riser system is an innovative and modular riser system for your 3d printer. It features numerous free to download add-ons allowing you to customize your printer and riser like you want. The design of the D3P riser system is patent pending.

This riser will work with the new Bambu Lab X2D which is deeper than the X1C and P1S. It will be too long (deep) for the X1C and P1S. It is identical to that of the P2S D3P riser. All P2S addosn will work with the X2D.

WHAT'S NEW

Added a three slot build plate holder. Free to download from MakerWorld: https://makerworld.com/en/models/2200659-p1s-p2s-x1c-d3p-riser-3-slot-build-plate-holder#profileId-2390783

Added custom drawer inserts. Free to download from MakerWorld: https://makerworld.com/en/models/2174129-p2s-d3p-riser-custom-drawer-inserts#profileId-2358492

Added a multiboard adapter https://makerworld.com/en/models/2117376-d3p-multiboard-adapter-for-p1s-p2s-x1c#profileId-2291501

FEATURES

Features of the D3P riser system:
• Front and side adjustable vents;
• Add-on extensions for dual AMS 1 or AMS 2 units;
• Innovative COB LED channels that feature brackets to secure the LEDS in place;
• Top unit is set back to allow easy access to the printer from the top;
• Sturdy and reinforced construction and design to prevent sagging;
• Two large storage drawers with gridfinity style drawer inserts;
• Integrated build plate holder for two build plates;
• Integrated lid holders;
• Multiple add-ons such as a modular tool tray, interchangeable external spool holder and more to come;
• Detailed pdf instructions with pictures and steps;
• Printing requires little or no support; • Optional Panda Breath cable opening on rear right (see Panda Touch below and Panda Breath below).

Note: The model is also available on Creality cloud should you not be able to purchase it here:

DISCOUNT CODES FOR PRINTER AND FILAMENT

I am in the process of obtaining discount codes from various manufacturers. Unlike many affiliate links these give discounts on purchases and are more difficult to obtain. In my requests I ask that they give me the codes with the most discounts for users even if it means a smaller commission.

Presently I have the following discounts codes available. They may not work with some discounted items.

$10 off orders over $100 | code: Darren3dPrint10

$20 off orders over $200 | code: Darren3dPrint20

$30 off orders over $400 | code: Darren3dPrint30

This can be used for any order worldwide.

Creality

$60 off certain printers orders (K2 Pro and K2 Plus) | Coupon code: Darren

The code is limited to certain geographic regions.

INTELLECTUAL PROPERTY

This work is licensed under the standard digital file license. You are prohibited from sharing, sub-licensing, selling, renting, hosting, transferring, reproducing or distributing the digital file or 3d printed versions of this object, as well as any other derivative work in either digital or physical form (including remixes or copying/reproducing the design by any means).you are not allowed to use the objects in any manner that involves charging money or collecting fees without permission.

A patent has been filed for the D3P riser design and it is patent pending. I thank you for your understanding.

ADD-ONS

The model features a number of add-ons that are free to download on MakerWorld. All the addons for the X1C and P1S work for the D3P P2S and X2D risers.

Folding lid handle https://makerworld.com/en/models/1636856-lid-handle-for-x-c-and-p1s-d3p-riser#profileId-1729242 Custom drawer inserts https://makerworld.com/en/models/2174129-p2s-d3p-riser-custom-drawer-inserts#profileId-2358492 Three slots build plate holder It replaces the stock 2 plate holder installed under the drawers. https://makerworld.com/en/models/2200659-p1s-p2s-x1c-d3p-riser-3-slot-build-plate-holder#profileId-2390783 Multiboard adapter https://makerworld.com/en/models/2117376-d3p-multiboard-adapter-for-p1s-p2s-x1c#profileId-2291501 Side mounted build plate holder for 8 build plates https://makerworld.com/en/models/1921176-x1c-p1s-p2s-d3p-side-build-plate-holder#profileId-2061434 Gasket for the lid cutout https://makerworld.com/en/models/2105397-3dp-riser-gasket-kit-for-p2s#profileId-2277156 Interchangeable spool holder https://makerworld.com/en/models/1636867-interchangeable-spool-holder-for-d3p-riser#profileId-1729260 Modular tool tray https://makerworld.com/en/models/1636862-modular-tool-tray-for-x1c-and-p1s-d3p-riser#profileId-1729251 AMS 1 and AMS 2 shelf extensions https://makerworld.com/en/models/1636838-ams-shelf-extension-for-x-c-p1s-d3p-riser#profileId-1729228 AMS-HT single dryer side shelf https://makerworld.com/en/models/1752986-ams-ht-extension-shelf-for-the-d3p-riser#profileId-1863869 Top mount spool holder for printing TPU https://makerworld.com/en/models/1688255-tpu-top-mount-spool-holder-p1-and-x1c-d3p-riser#profileId-1789303 Side storage tray by Troy https://makerworld.com/en/models/2125558-side-tray-storage-p1s-p2s-x1c#profileId-2301309

I will be adding to these so be sure to check back from time to time.

MULTIMEDIA

NEW: Have look at AJBuildz excellent assembly video https://www.youtube.com/shorts/GCsSkCozs0o

NEW: Have a look at Dirt-E-Bikes excellent video about the D3P riser and other risers. https://www.youtube.com/watch?v=MLQvEFuRu9Y

Also, get a free model consisting in a custom insert for the P2S D3P riser drawers (it is a 4x5 grid but you can add a 1x5 custom insert too). To get a free code you need to get the coupon code by watching Dirt-E-Bikes video (see above link). Link for custom insert (Hint: use the code - no need to pay for the model) : https://cults3d.com/en/3d-model/tool/p2s-drawer-insert

Have a look at MkesQuestLog assembly video for the riser:

https://www.youtube.com/shorts/gCheKPiknRc

TECHNICAL SPECIFICATIONS

For the base riser:
Filament: 2.7 kg

Approximate print time: 3 days 6h

Height with closed AMS unit: 90 cm (35.5 inches)

Height with open AMS unit: 105 cm (41.5 inches)

EXTERNAL HARDWARE

LED strip

I am using an 8mm 5v 2 meter COBLED strip. I suggest you get a 1-1.5 meter extension preferable with an on-off switch. I also use an external power supply for it.

This is the link to the one I used: https://www.amazon.ca/dp/B0C89MFP3Q?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_2&th=1

PRINT SETTINGS

IMPORTANT I upload a print setting files for all my models. The print settings has the parts positioned for correct printing.

EACH BUILD PLATE HAS THE TYPE OF SUPPORT REQUIRED INDICATED ON THE BUILD PLATE DESCRIPTION (TREE AUTO, TREE MANUAL OR NO SUPPORT).

I strongly recommended you use my print setting file. If not, I will not be able to assist you if there is an issue when printing. From experience, many of the issues with printing my models are on account of users not using my print settings.

CHANGELOG

If there are any changes to the STL files or print settings I will list them here. I recommend looking at this section prior to printing as it is the only way I can inform users of changes.

3D PRINT SETTINGS

I use the following settings and materials to print this model:
Infill % : 15% (no need for more)
Nozzle diameter: 0.4 mm
Layer height: 0.2 mm standard
Material: The X2D has a heater and many will be printing ABS or ASA. As such PETG is the preferred material. PLA will work providing you do not print high temp filaments such as ASA or ABS. PLA may deform if you print with high temp filament or if you place a dryer on it.

PRINTING OPTIONS

Instead of printing the stock 2 plate holder installed under the drawers you can print the 3 build plate holder. https://makerworld.com/en/models/2200659-p1s-p2s-x1c-d3p-riser-3-slot-build-plate-holder#profileId-2390783

ASSEMBLY AND INSTRUCTIONS
A detailed instruction and assembly guide with steps and pictures is available for download with the model files.

TROUBLESHOOTING

All parts and the assembly have been tested multiple times (both printing and assembly).
• Make sure your build properly cleaned and free of grease and oils before printing. This is the cause of adhesion.
• Make sure you use my print profiles/settings (the .3mf file that has multiple plates with all the parts) and that you enable support as indicated for each build plate on the build plate description.
• Filament and printer will affect tolerances however all should fit. If unsure proceed slowly and cautiously.
• If there are any changes I list them in a changelog on the model page. Please have a look at it prior to printing in the event there are any changes.

I am available to assist with any issues with this model.

The best way to reach me is through Facebook messenger - my user name is "Darren 3d print".

I thank you for your support and hope you like this model.
