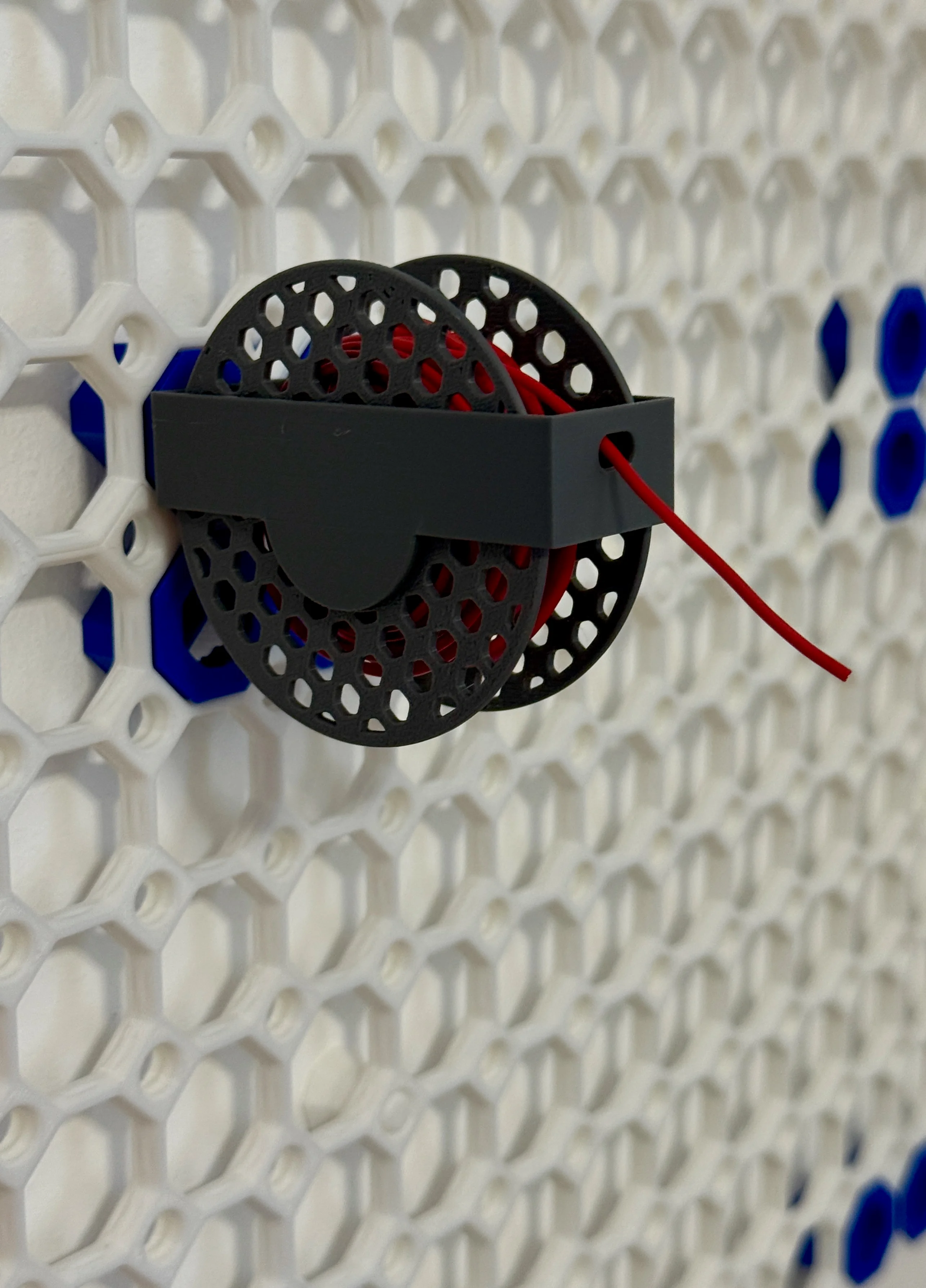

He is my attempt at creating a wire spool and holder for Multiboard. I wanted to create a spool and holder that was no more than 25mm in width so that I could place multi units next to each other on Multiboard without wasting space.

I have tested them with 5m of single core 22AWG wire. I'm pretty sure the spool is capable of holding up to 10m though.

I have included two different patterns for the spools and uploaded both for choice.

The two halves of the spool snap together: rotate them until the locking lug matches the groove and then apply pressure to snap together (best done by pushing down on a flat surface). Once the spool is assembled it can be pushed into the holder and should snap into place and rotate freely. You can load with wire before or after assembly .

I used all the defaults on my P1S to print them. Although you may need to add brim ears tot he spool holder corners to ensure it adheres to the plate.
