Fix Points allow for fast and easy installation and removal of any accessory part while still being sturdy.

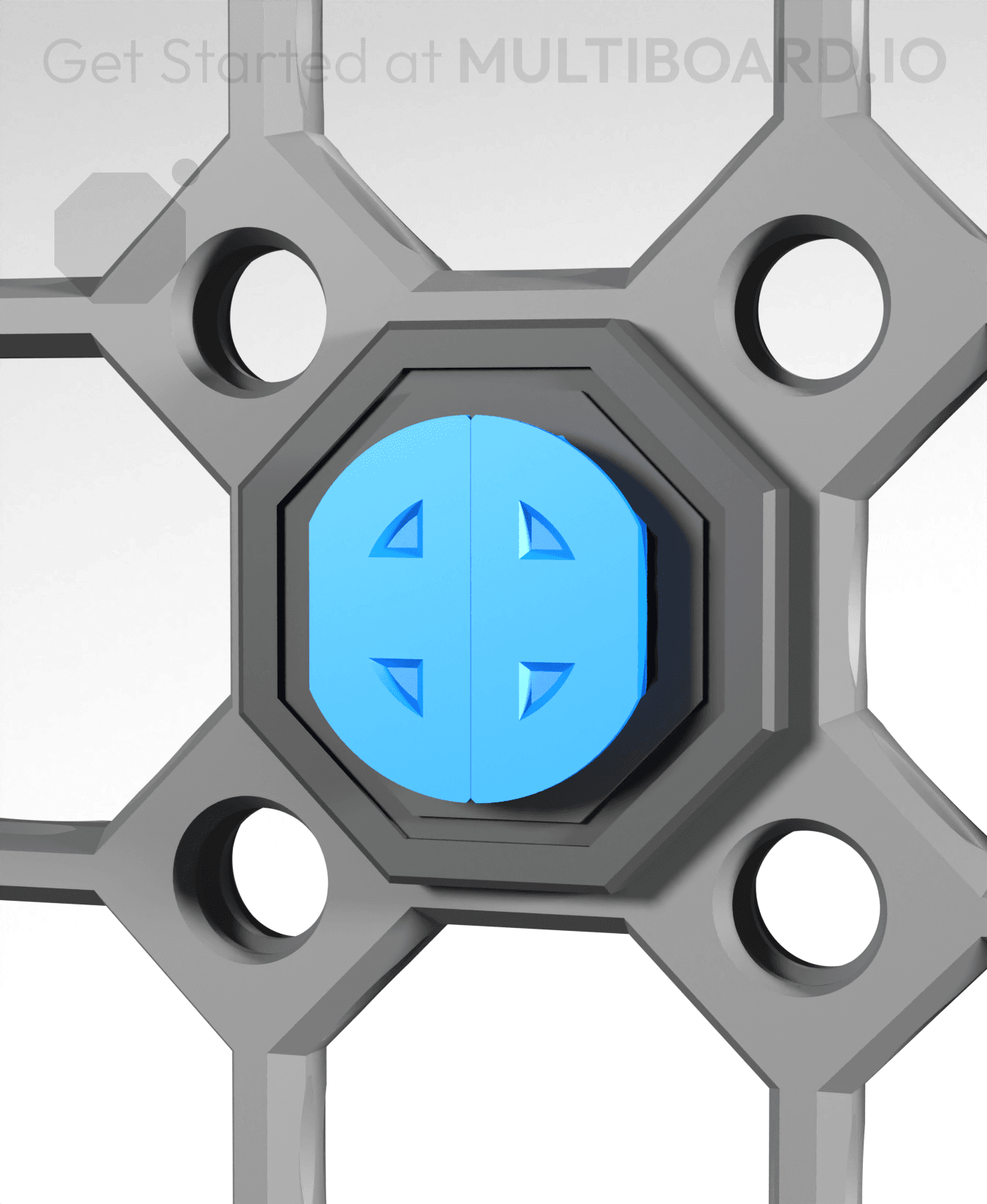

This is a “Bolt-Lock” Fix Point that can be inserted into the Multiboard Snaps (Weight Bearing Snaps are recommended).

"Bolt-Lock" the Fix Point into place by screwing in a Small Thread T Bolt from the back of the Snap, this way the Fix Point won't slip out.

Attach parts that have a negative Fix Point or Rail, like "Rail - Multibin Shells" or other accessories.

Learn more about this part at https://multiboard.io/knowledge-hub

Printing Guidelines:

Use 3 perimeter wall thickness, 0.2 mm layer height, 15% infill, and no supports. Apart from that, use your printer's default settings.

The printing orientation is as provided in the file. Make sure the downloaded files are .STL. This part has been designed with a tolerance of 0.25 mm. Your printer will need to be able to bridge gaps of up to 30 mm for some designs.

For more information about printer settings, click here.

This object is part of Multiboard, a FREE and ridiculously modular organization system with thousands of parts, for creating the most adaptable workspace possible. Learn more and find ALL the parts at https://multiboard.io
