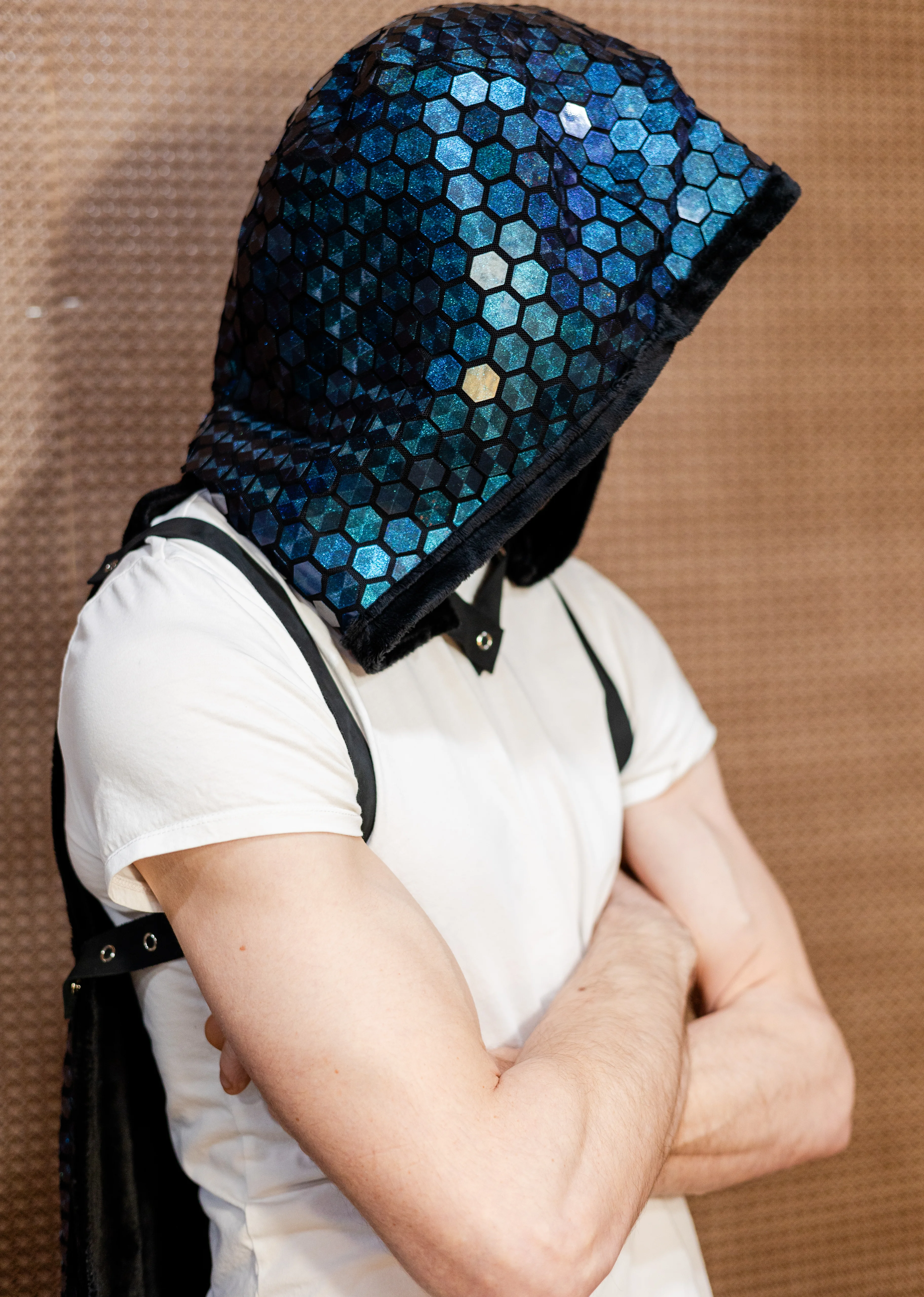

Cloak Hood - Hexagons and dragon scales
This file is a more advanced undertaking. If using a 256mm x 256mm build plate, this file is printed in 9 pieces, assembled into 3 larger pieces (left side hood, right side hood, and center hood), before sewing onto a base fabric for finishing. I use UV curable resin (see PDF guide for how to instructions) to connect the smaller panels together before sewing them onto a lining fabric.
Like other prints - the first layer is printed, a pause command is inserted before layer 2 starts, and the print is resumed. The hexagons are .72 mm tall, printed with a .4mm nozzle and a .24mm layer height. The dragon scales have 0% infill.
There are two options for the middle section, continuing the hexagon pattern, or a remixed dragon scale pattern (Thank you @shoreydesigns!)
The additional shine was achieved by using a holographic build plate, and printing so the first layer is the top surface of the printed fabric. The second finish was achieved by using a concentric pattern in combination with a tri color filament on a textured pei plate.
Print time - 1d7h31m not including pauses, placing of fabric Weight - 312 grams for dragon scale version, 95 grams for hexagons only
To get the holographic finish of your choice - https://kaizen3dprints.com/collections/p-flat-plates
If you have any questions please contact me at Kaizen3DPrints@gmail.com
Cloak Hood - Hexagons and dragon scales
Hand sewn vertical wallet
256x256 PFLAT sheet holder
Massage Roller
Spinning gear fidget ring
Flat band fidget ring
Large TPU foldover bag
Adjustable Strap (48"/122cm max length)
Small Foldover Bag
Customizable Passport Wallet
Tall TPU Bifold Wallet for sewing
Vertical Wallet for Chicago Screws
Square Grid Negative Modifier
Hex Grid Fabric Modifier
Heart Pixel Pattern Textile and Modifiers
Vertical TPU wallet with rivets and grommets
Flippy heart textile and modifiers
Foldable TPU bag sized for Snapmaker U1
Crossed Basket Weave Textile / Modifier
Thin Beaded Textile / Modifier
Hello my Name is Daniela, I bought this file because I love your designs. But I have a problem with printing... Perhaps you can help me? When I print the hexagons on a holographic plate, it is shiny and nice, but I can see the print lines. It is not smooth enough for my opinion. I calibrated the filament and print with 35mm/s, but is there anything else I can try? Thanks in advance for your help
I'm so terribly sorry that I missed this message! One thing you could try is increasing the bottom layer thickness to .24mm. I've found this gives a little more squish. A hotter temperature might help as well. Send photos to kaizen3dprints@gmail.com and we can troubleshoot!
what filament are you using?
Do you have a preferred kind of filament for these?
This was printed with burnt titanium from flashforge. If it has glitter in it, im all about it 😅. I mainly use PLA but a TPU version could be amazing too!
