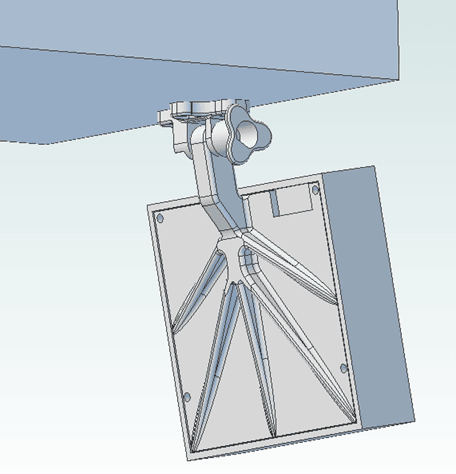

BTT TFT35 E3 Top Hanging Housing

The display stand is based on this project by 3Deddy on Thingiverse.

Instructions e materials needed :

You need : 1x DIN 912 M6x30 screw 1x M6 nut 3x self taping screw

Download the 3Deddy project and print only the following files: 1x : Front_V1.stl 1x : Stand_off_top_right_V1.stl 1x : Stand_off_top_left_V1.stl 2x : Stand_off_bottom_LR_V1.stl

Print Tips:
Nozzle: 0.4 Layer: 0.2 perimeter: At least 3 walls Supports: no top/bottom: 5 layers Infill : 10~15%

You need to modify the head of the M6 screw by removing about a millimeter from one side in order to make the head from round to a D-shaped profile. This can be done simply by using sandpaper.

More info here : https://sites.google.com/view/pirpolo/home-page/smuff-related-projects/btt-tft35-e3-housing

Any feedback is welcome

....And if you like my projects and want to help me develop new ones you can always buy me a cofee....
