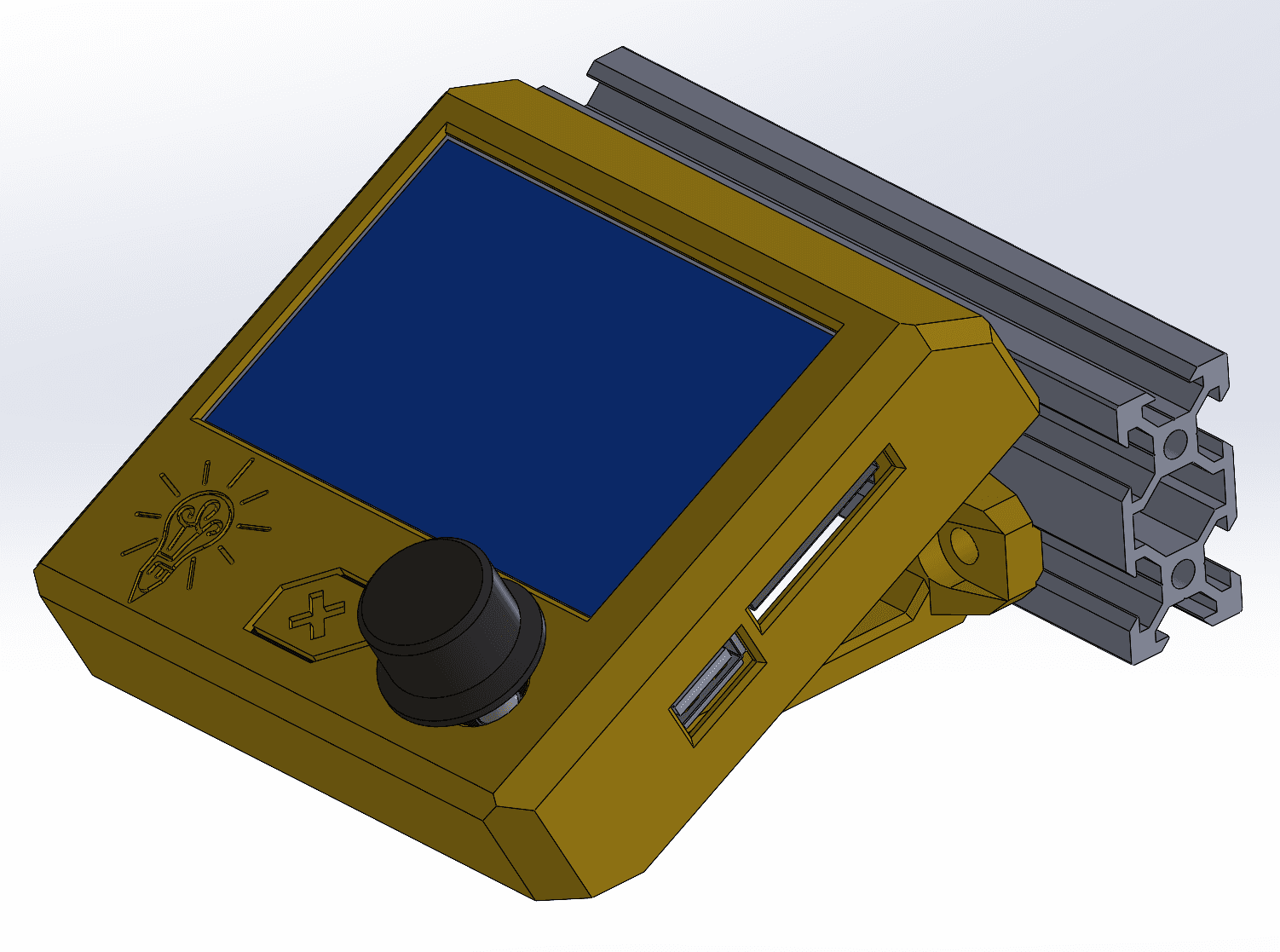

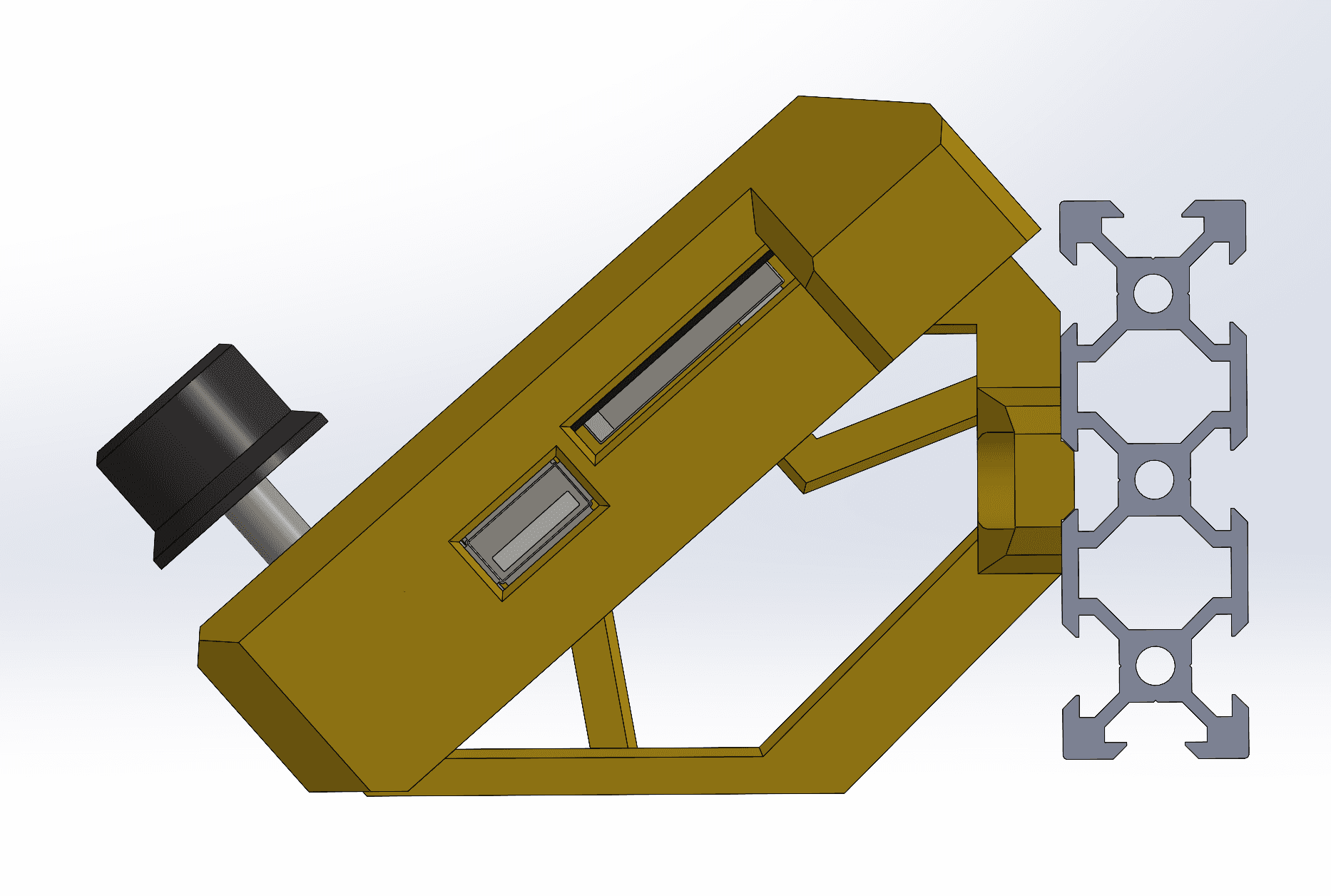

The display stand is based on this project by 3Deddy on Thingiverse.
Instructions e materials needed :
You need : 1x DIN 912 M6x30 screw 1x M6 nut 3x self taping screw
Download the 3Deddy project and print only the following files: 1x : Front_V1.stl 1x : Stand_off_top_right_V1.stl 1x : Stand_off_top_left_V1.stl 2x : Stand_off_bottom_LR_V1.stl
Print Tips:
Nozzle: 0.4
Layer: 0.2
perimeter: At least 3 walls
Supports: no
top/bottom: 5 layers
Infill : 10~15%
You need to modify the head of the M6 screw by removing about a millimeter from one side in order to make the head from round to a D-shaped profile. This can be done simply by using sandpaper.
More info here : https://sites.google.com/view/pirpolo/home-page/smuff-related-projects/btt-tft35-e3-housing
Any feedback is welcome
