Features

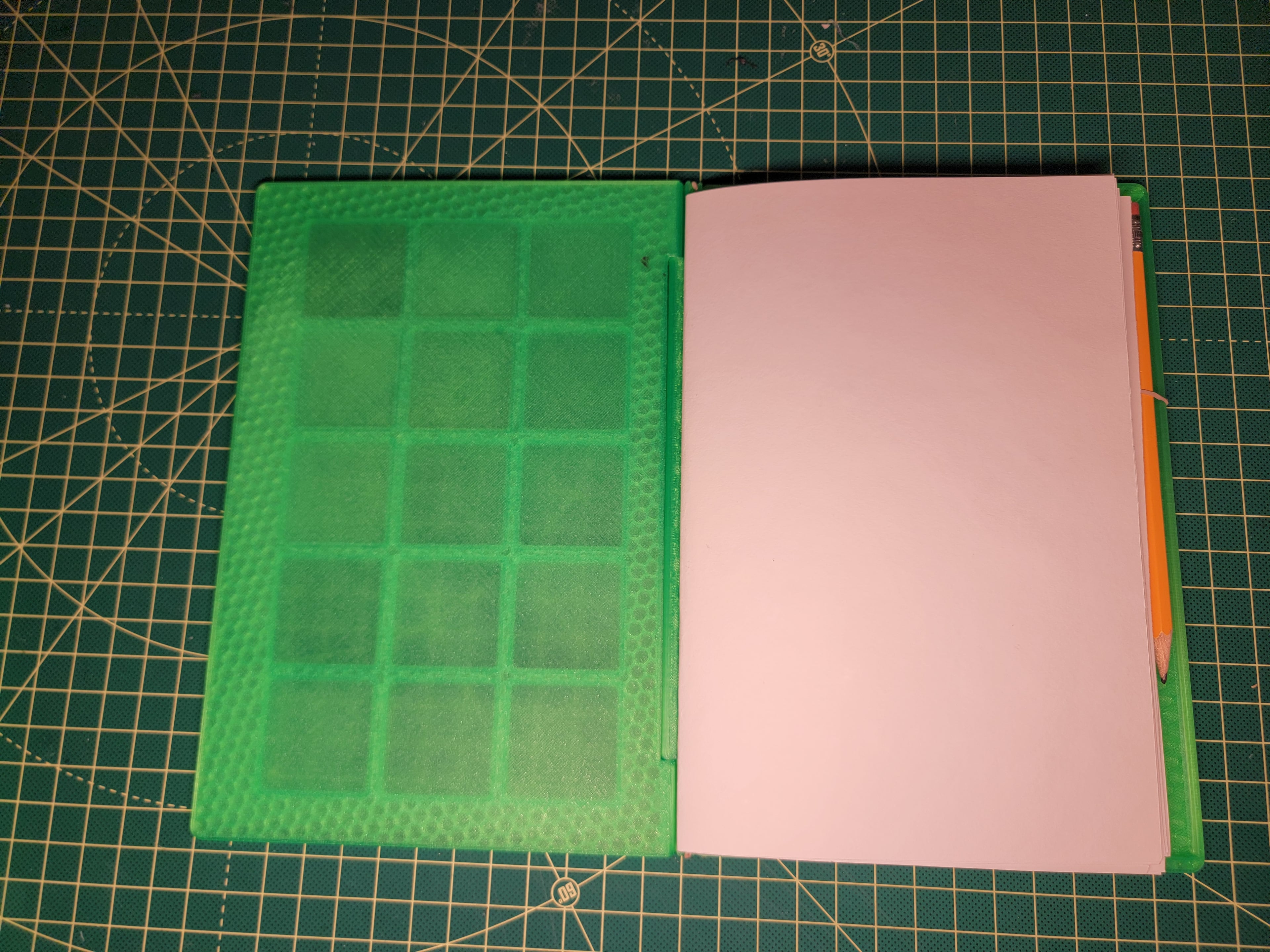

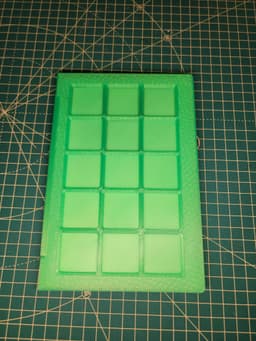

Modular, refillable, 3d printed notebook design

• 3D printed contruction
• 1.75mm filament for hinge pin
• Rubber band for paper retention
• Refillable with any available paper
• Split design option for smaller printers

Assembly

1. print hinge
2. pick and print 2 panels
3. press filament through hinge and trim excess
4. place rubber band around spine

Customization

I have provided base templates for the panels and the hinge/spine in both .stl and .step formats. I have also shared a few other panels that add features like a pencil holder, gridfinity, etc.
