Gridfinity 3x1 vertical drill bit holderv2.stl

by

the.d.i.y.tinkerer

Follow
Follow
Remix Model
Like
the.d.i.y.tinkerer
the.d.i.y.tinkerer
Image 1 of 4
Note problems printing this is a problem with my printer not the model!
Gridfinity 3x1 vertical drill bit holderv2.stl - Note problems printing this is a problem with my printer not the model! - 3d model
2D
3D
Makes
Gridfinity 3x1 vertical drill bit holderv2.stl - Note problems printing this is a problem with my printer not the model! - 3d model
Gridfinity 3x1 vertical drill bit holderv2.stl - Note problems printing this is a problem with my printer not the model! - 3d model
Gridfinity 3x1 vertical drill bit holderv2.stl 3d model
Gridfinity 3x1 vertical drill bit holderv2.stl 3d model
42 Likes214 DownloadsJuly 13, 2022


This is a Gridfinity compatible drill bit holder for drill bits from 1mm to 13mm

it holds a total of 27 bits...

6 - 10mm in 0.5mm increments (1 of each) 1 - 6mm in 0.5mm increments (2 of each)

drills from 6mm - 10mm stack at an angle

for the smaller sizes, the holes are 0.5mm larger than the drill bit intended - this also provides a little leeway for slightly different sized bits

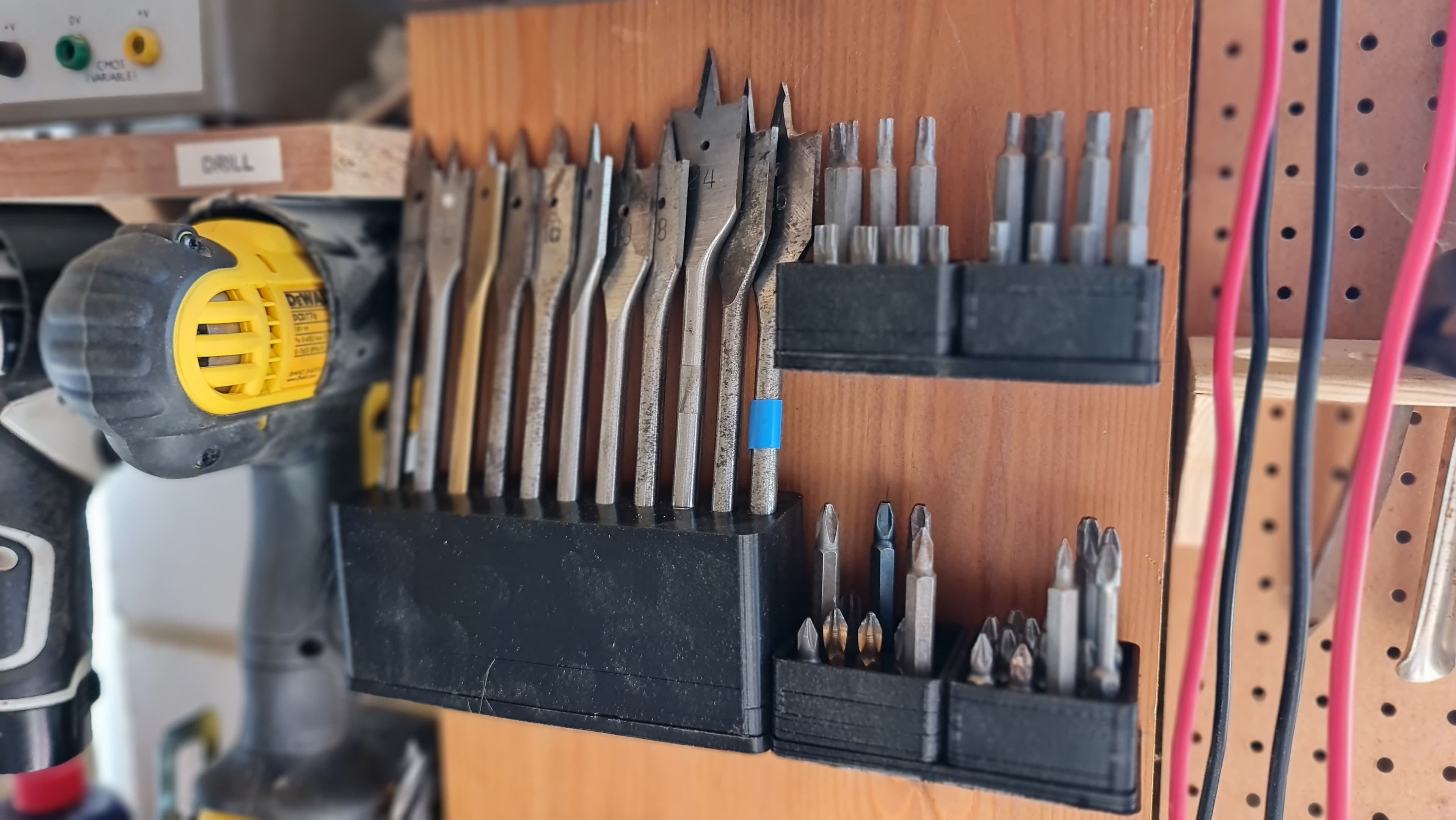

The bit holder is compliant in x & Y axis with gridfinity but not in the z(height) direction not that you will be stacking anything on top of it. I made this mainly to work with my gridfinity wall mount.

DIY TINKERER https://www.youtube.com/c/diytinkerer

Gridfinity concept by Zack Freedman

This version has been tweaked in sketch-up
