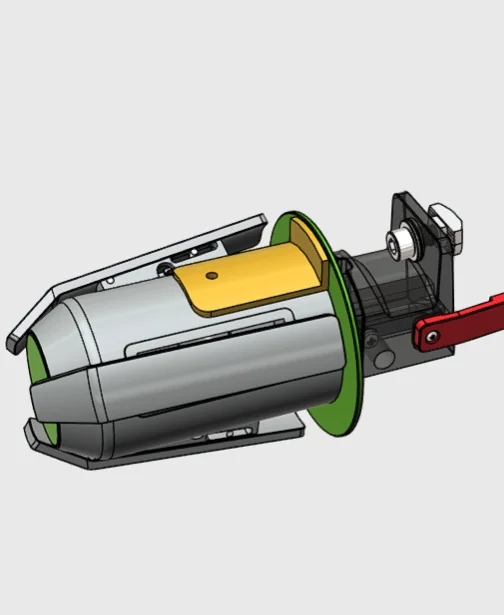

As the name implies, this model is an addition to my Spool-Rewinder which allows one to use a genuine Bambulab AMS-Lite Spool-Holder. These are being sold as spare parts for a fair price. In order to attach it to my Spool-Rewinder, I needed to model a completely new core and collet. The only things left from the original, are the outer shell and the claws. Also, I modified my (existing) Motor-Mount; Made the slant steeper (5 deg. now) and with supports that will prevent the contraption from sagging, due to the weight of a full spool.

Since the original is pretty modular, it's easy to disassemble: To do so do this:

1. remove all of the claws (watch Bambulab video on YouTube on that topic)
2. unscrew the collet
3. remove the original core

In order to be able to screw the Spool-Holder onto the motor shaft, you also need to drill a 6 mm hole in the outer shell, about 28mm from the collet.

Please notice: I modeled the shell and claws to check the fitting of my parts and except from the measurements I was interested in, I don't claim them to be accurate.

UPDATED Updated the core so that it doesn't need supports for printing. Also, added a drill-template to accurately find the position for the screw-hole.
