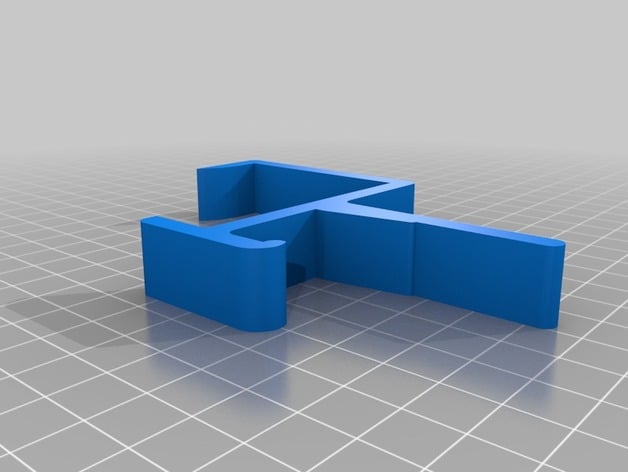

I created this bracket to mount my soundbar to the top of my LCD TV to keep it out of reach of my young daughter (she has just started standing and grabbing things lol!).

The soundbar looks much more tidy on top of the TV then it did before sitting in front of the TV IMHO.

The STL is set up for my Samsung soundbar: Width: 60.2 mm Height: 55.2 mm

and Hisense LCD TV: Width (at top): 25.5 mm Width (at bottom): 29.5 mm

I have included the sketchup file so the dimensions can be modified to suit. With my printer I have spent a long while calibrating to achieve fairly accurate printed dimensions and I added on about 0.5mm to the actual measurements of my soundbar/TV. Clips onto the soundbar and TV nicely.
