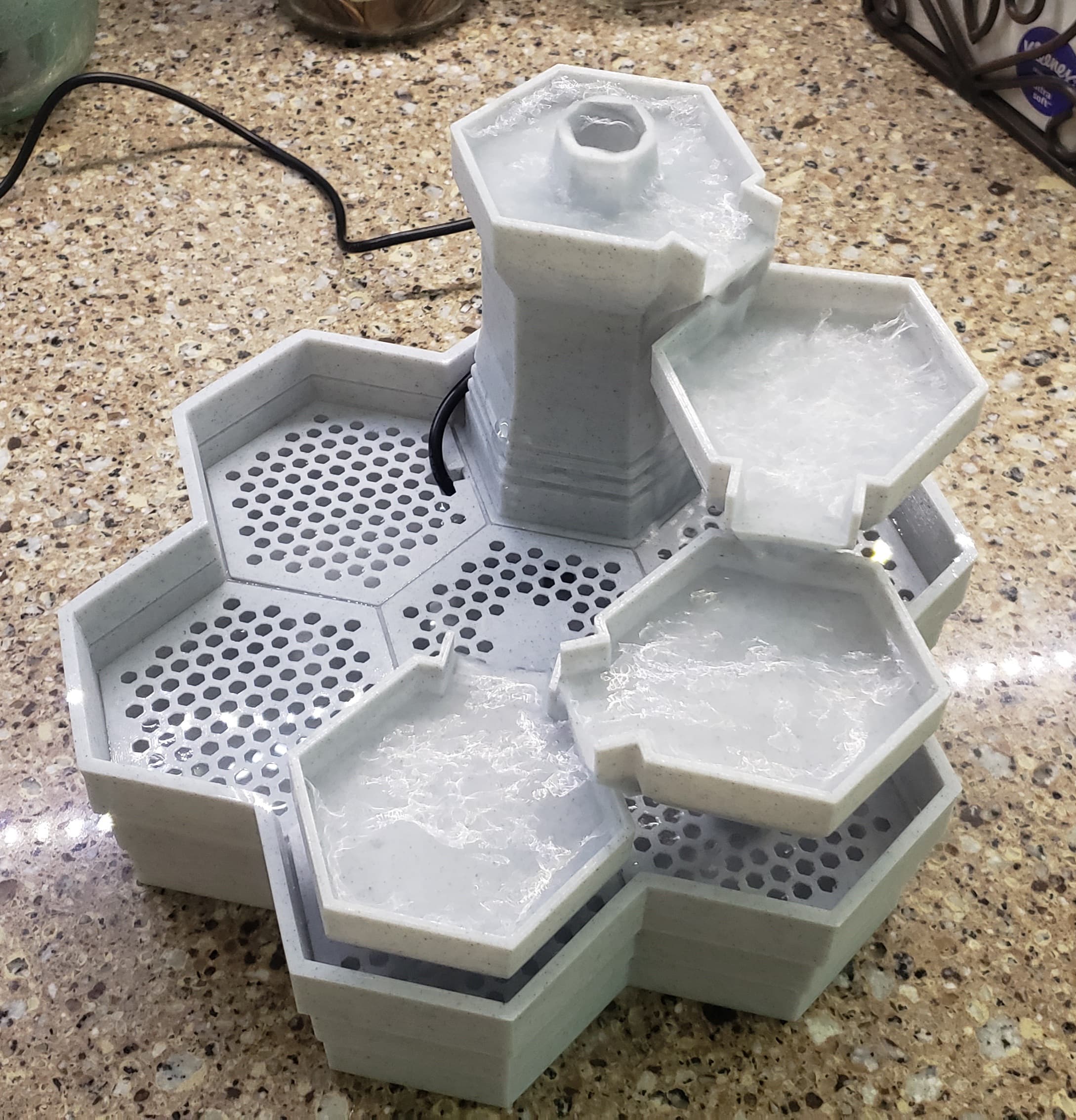

It's like a desktop zen rock garden, but with water!
Introduction and assembly video
Printing
- All parts can be printed without supports.
- Use a brim if you have bed adhesion or curling issues.
- Print the base with extra perimeters and a high temp to prevent leaking. If there are still leaks, seal the base with Mod Podge or similar plastic-safe varnish.
Hardware
Submersible USB pump with adjustable flow https://www.amazon.com/dp/B01CG2YE6K
M3 Bolts or Glue Bolts can be as short as 4mm or as long as 16mm
Assembly
- Attach fountain parts to their plates using glue and/or M3 bolts.
- Place pump(s) in the base wherever you want a fountain to start.
- Thread the pump cord through the base until you reach the side of the base where you want it to come out.
- Snap in fountain parts.
- Fill fountain with water.
- Test. Adjust the pump flow accordingly.
- Add extra decoration (stones, plants, 3D prints) as desired.
Bases
- Default - 7 hexagons
- Small - 4 hexagons (not compatible with every fountain)
Fountains
- Tower - A three level tower fountain
- Waterfall - A wide spout fountain
- Plateau - A series of floating basins which pour water out on one side.
- Rhythmic - A tilting hollow bar that gives a percussive hit every 1-4 seconds. This is based on a Japanese Shishi-odoshi.
Plates
- Solid
- Solid Center
- Perforated
- Cord
Warning: Not for Pets!
Please note that this fountain is not a safe water bowl for pets. 3D printed objects can easily grow bacteria between layers. This is true even when using “food safe” plastics.
Can I sell copies of this?
Yes! This project was shared under the Creative Commons - Attribution license.
This license allows selling copies, but you must provide proper attribution, as detailed in the license itself.
Please note that any other projects linked here (remixes or related projects) may have a different license. Please respect those licenses.
This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
