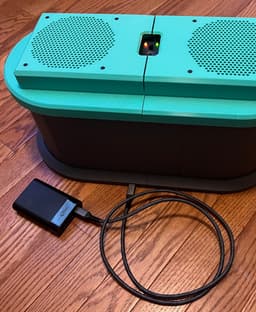

Inspired by the Exhalaron clean air kit, but with an overall more integrated aesthetic, and at significantly lower unit cost.
What you'll need:
- a Nyemo TT-AP006 hepa replacement filter 2-pack
- a pair of 120mm PC fans, preferably quite and high static pressure, like Noctua NF-P12
- a PWM fan controller, like Noctua NA-FC1
- a 12v power source, like this USBC PD trigger
- misc parts like M3 heatset inserts, M3x35 flat head bolts, wiring for the fans/power, some sort of adhesive to mount the control module
- about 1.1kg of filament, 2-3 colors looks nice (vary base, cover, and maybe the mesh wall as a 3rd color)
For a detailed parts list and build guide see https://github.com/jcorbin/pchepa/blob/main/v1_build.md
All models are already oriented as intended to print.
General recommended slicer settings:
- layer height: 0.2
- 4 walls
- sparse infill: 15% tri-hexagon
- 4 top/bottom layers
- concentric top surface pattern
- no support material
The flexible mesh wall section should instead be printed with:
- 0 top/bottom layers
- sparse infill: 60% tri-hexagon
- infill direction: 90°
If you want to customize it for different filters, bigger fans, not to use heatset inserts, or want to follow along for future developments / variants, watch https://github.com/jcorbin/pchepa
Future versions will include:
- integrated battery bank
- other controller options, since the Noctua PWM controller is too expensive for what it is imo
- improved mesh wall integrity
- carrying options like loops for a carrying strap
Other variants that I'm planning:
- a 1 filter canister / "lantern" edition
- a 3 filter version to start scaling out towards that "luggable" space, while not quite yet going full CR box
- a version that integrate an even fancier control module with a builtin air quality sensor and display
