Gridfinity Stackable Cups with Honeycomb Walls

by
joshua.t.corbin
Follow
Follow
Remix Model
joshua.t.corbin
joshua.t.corbin
|
Image 1 of 6

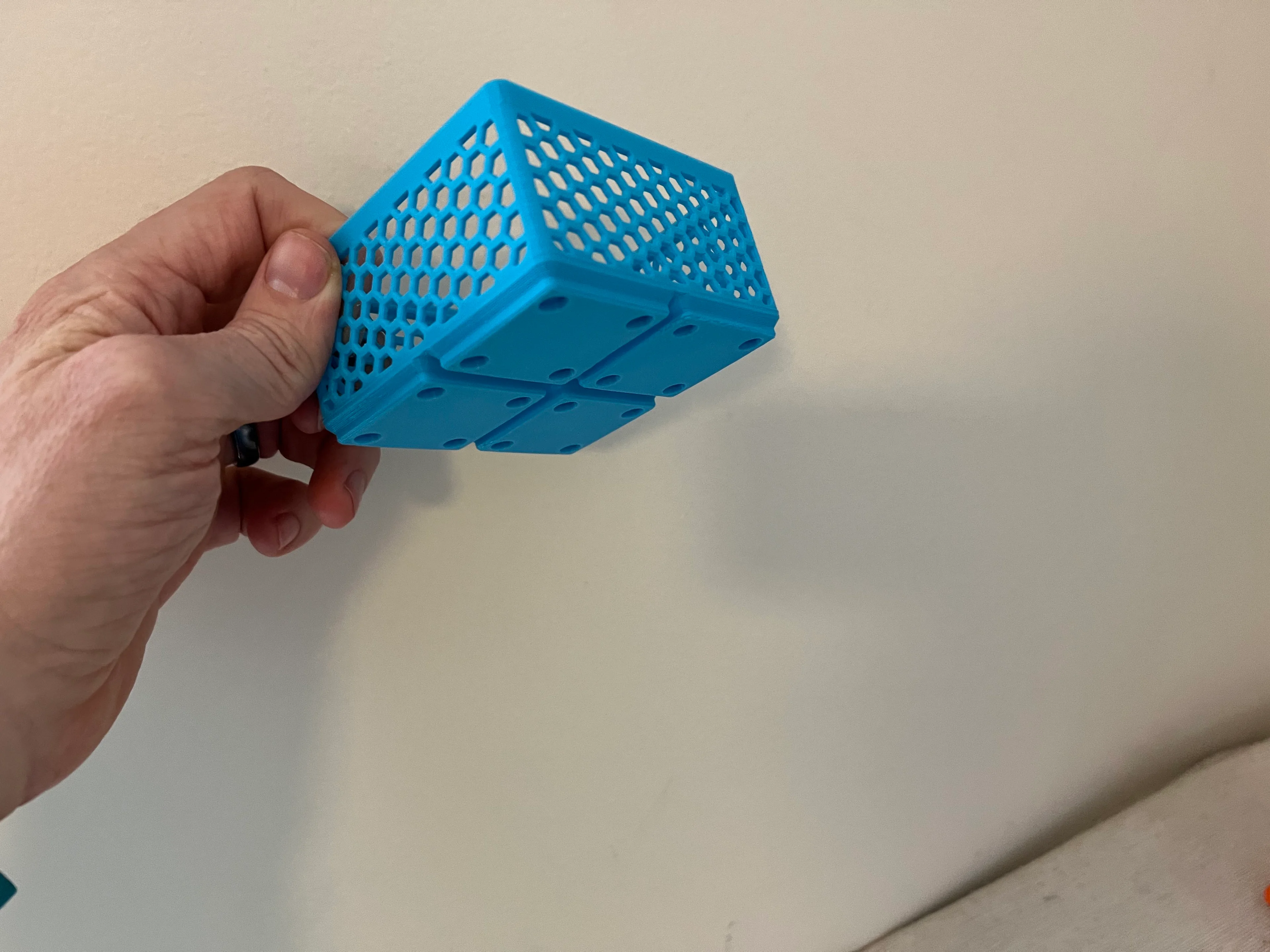

Gridfinity Stackable Cups with Honeycomb Walls 3d model
joshua.t.corbin
joshua.t.corbin
|
Image 1 of 6
Gridfinity Stackable Cups with Honeycomb Walls 3d model
2D
3D
Makes
Gridfinity Stackable Cups with Honeycomb Walls 3d model
Gridfinity Stackable Cups with Honeycomb Walls 3d model
Gridfinity Stackable Cups with Honeycomb Walls 3d model
Gridfinity Stackable Cups with Honeycomb Walls - 0.8mm nozzle, amolen silk pla, came out amazing. - 3d model
Gridfinity Stackable Cups with Honeycomb Walls - if you are using a slow color change PLA you need to print a bedfull at once to get nice color gradient. - 3d model
Gridfinity Stackable Cups with Honeycomb Walls 3d model
This model is restricted by licensing terms.

NOTE: nothing to do with HSW (Honeycomb Storage Wall) ; these are just Gridfinity cups with honeycomb walls with metrics designed to minimize material.

Inspired by a question in the Gridfinity discord, this is a recreation of a gridfinity cup with most of the wall material cut out by a hexagon grid. This model was created similarly to the tunnerl riser above, using vector76 gridfinity mmodules and bosl2 to manage the hexagaon window cutouts.

A potential use here would be a stackable bin, whose contents would still be visble thru the side when stacked (see the primay 2x2x6 model).

Another use would be for a non-stacking pen cup (see the 1x1x12 nolip model).

The underlying OpenSCAD parametric model is part of my gridfinity riser repository for further customization. A similar cup can be seen in a picture uploaded by ashleyi100 on thangs which looks similar to this non gridfinity box on printables.
