Tile Spacers For Flooring Wall Tile Spacer Carrelage Tile Leveling System

  • Recyclable.
  • Easy to use
  • Balance tiles in the same horizontal position.
  • Improve the installation speed of tile.
  • Reduce the fatigue/pressure of installers.
  • Prevent tiles from moving during solidification.

Two version screw for print.

  • First version is printed on the height.
  • Second version is printed on the width. Second wersion is better for mechanical stress

Both version don't need support for print

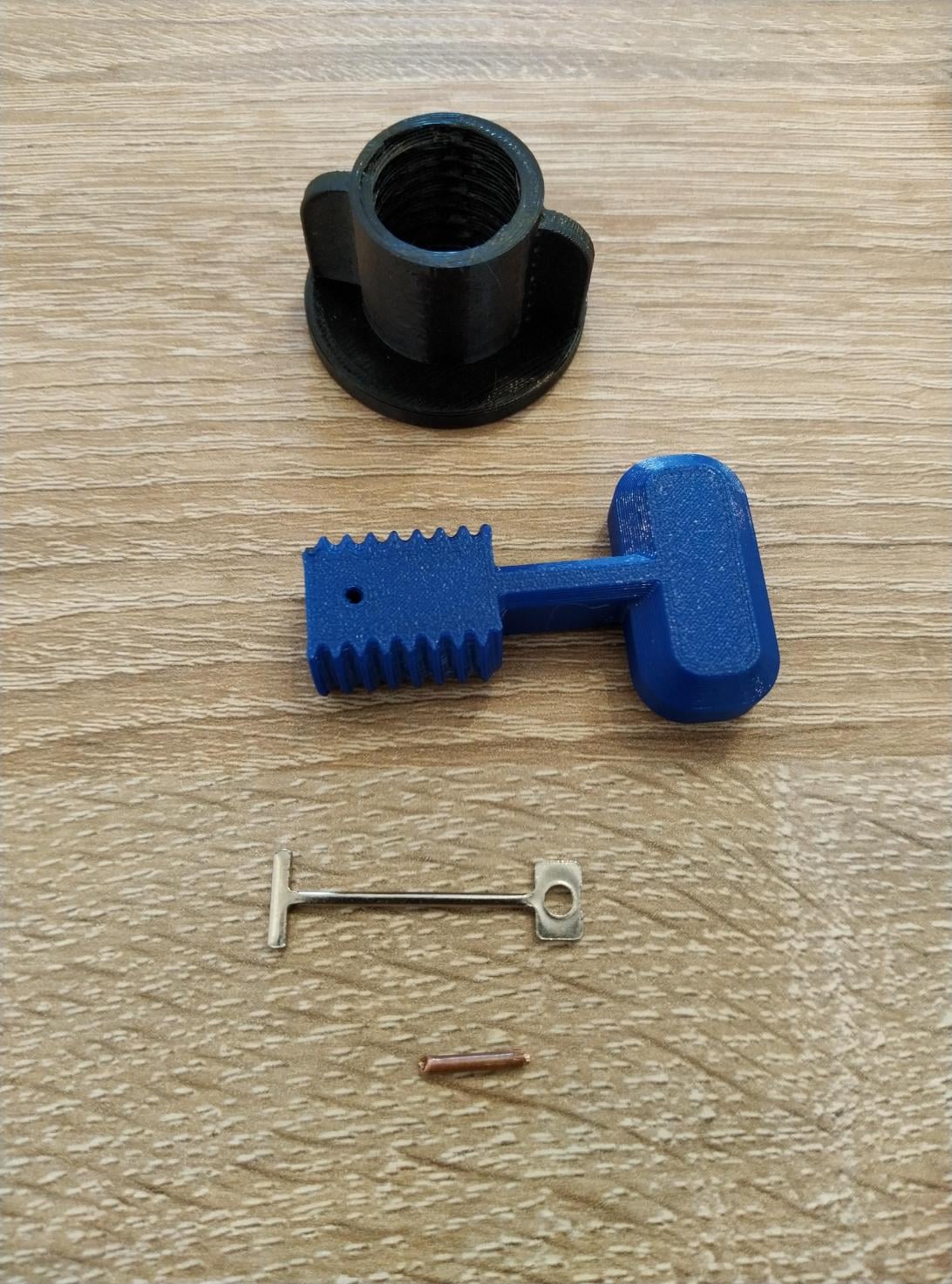

Mechanical parts:


Print settings: Infill: minimum10% Material: PET-G noze: 0.4 Support required only for wrenches
