Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5259583.

Tile Spacers For Flooring Wall Tile Spacer Carrelage Tile Leveling System

• Recyclable.
• Easy to use
• Balance tiles in the same horizontal position.
• Improve the installation speed of tile.
• Reduce the fatigue/pressure of installers.
• Prevent tiles from moving during solidification.

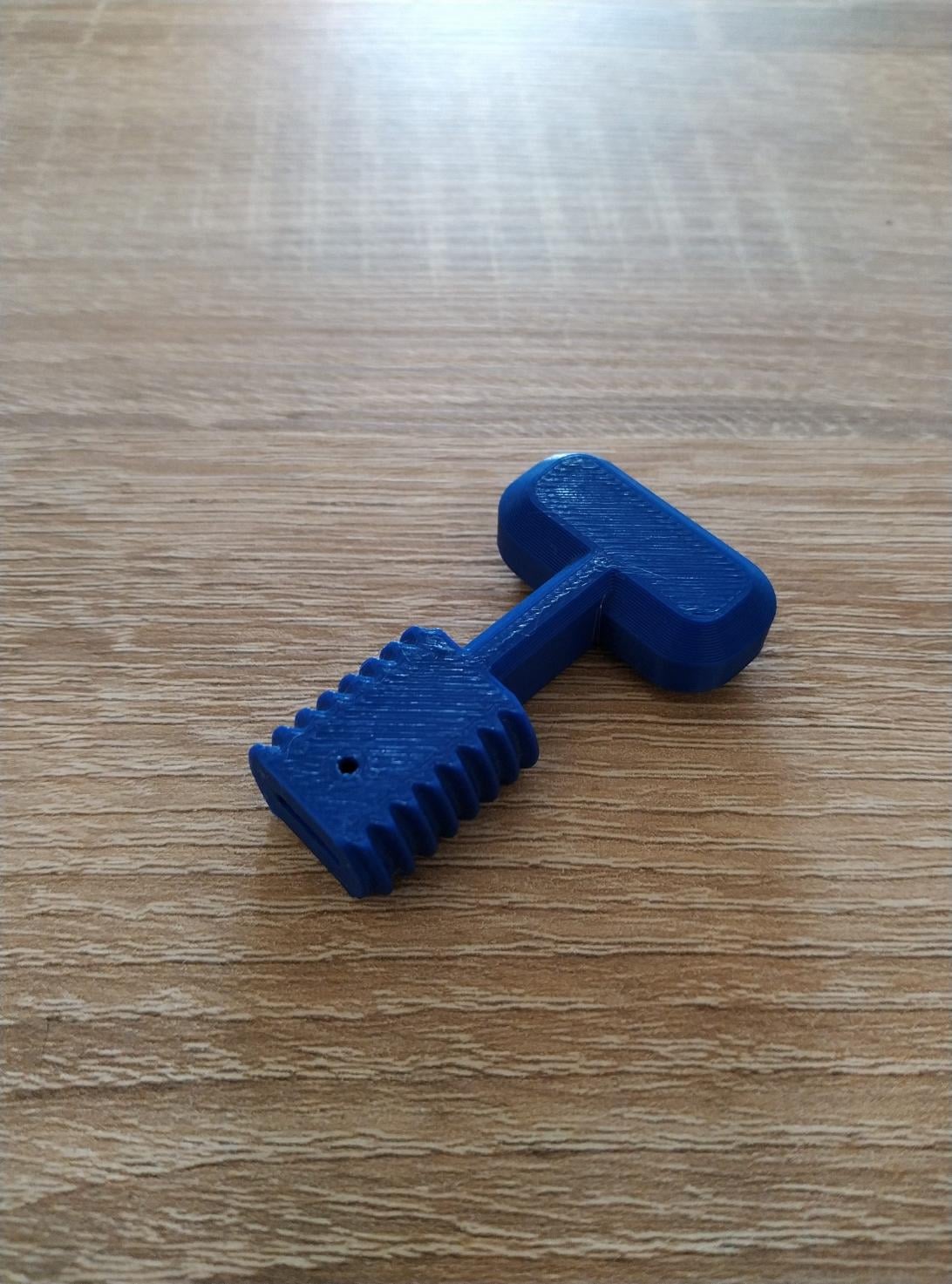

Two version screw for print.

• First version is printed on the height.
• Second version is printed on the width. Second wersion is better for mechanical stress

Both version don't need support for print

Mechanical parts:

• Steel Needles 1.5mm https://www.aliexpress.com/item/1005003721902727.html?spm=a2g0o.order_list.0.0.21ef18026ThKMv
• As fuse we can use standard solid copper wire with diameter 1.5mm2 (16 AWG), with length ~11mm

Print settings: Infill: minimum10% Material: PET-G noze: 0.4 Support required only for wrenches
