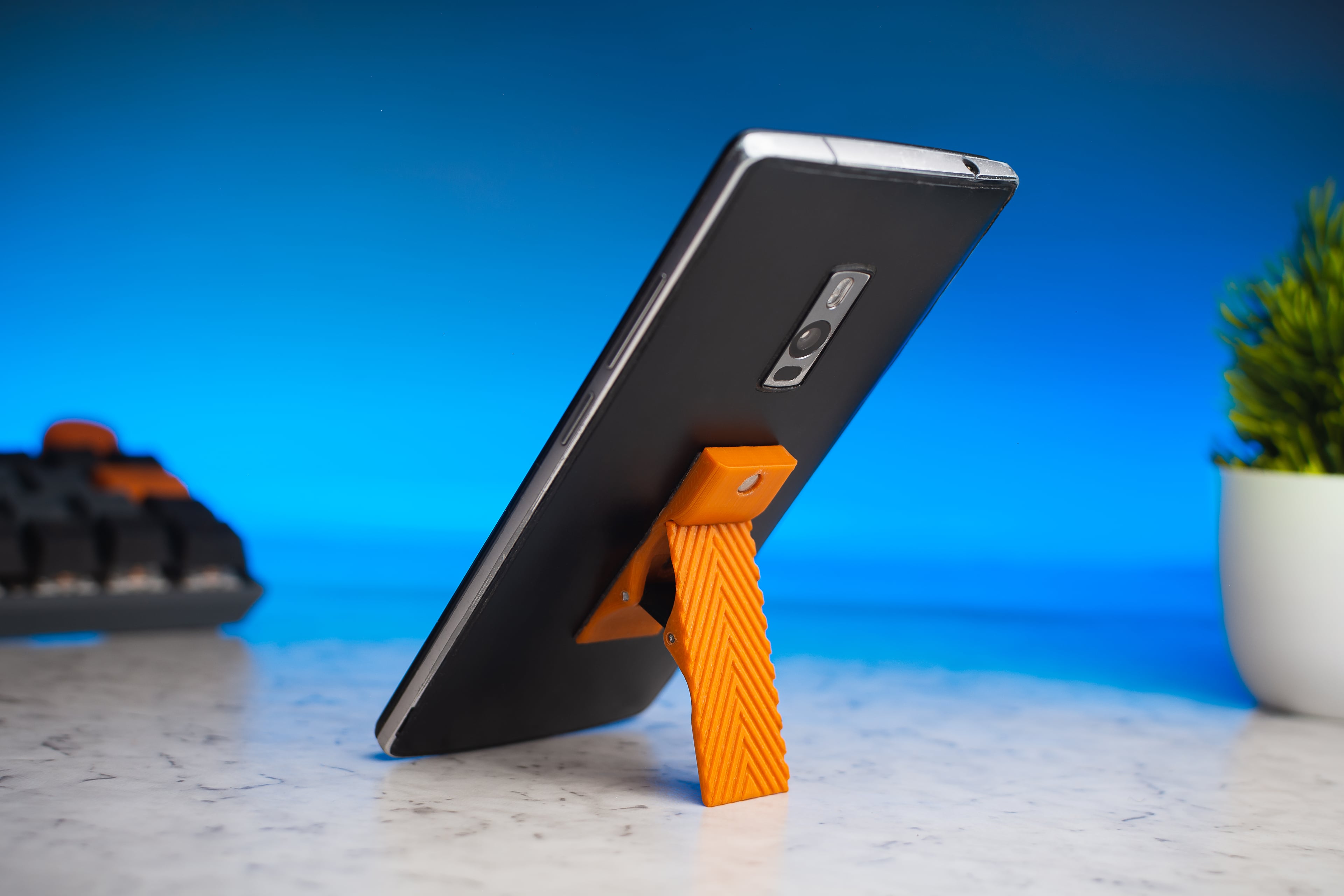

Phone holder or kickstand 3d model
2D
3D
Makes
Phone holder or kickstand 3d model
Phone holder or kickstand 3d model
Phone holder or kickstand 3d model
Phone holder or kickstand 3d model
Phone holder or kickstand 3d model
Phone holder or kickstand 3d model
This model is restricted by licensing terms.
16 Likes24 DownloadsApril 26, 2022
This model is restricted by licensing terms.


Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5326415.

Phone holder/ kickstand

A simple and highly customizable design

Instruction

Print all the parts bottom, center hinge, and top plate (there are multiple options for top plate check before printing) Remove the supports and clean the parts you might need to drill the holes using a 2 mm drill Use a marker and mark the poles on the magnets Use super glue and stick the magnets to the printed parts make sure the poles on the bottom part are oriented in the same direction and the other two parts have the opposite of that so that they can stick Assembled everything using the 2mm pins If the pins are loose you can add a small drop of superglue at one end before pushing it in completely Find a comfortable position and stick it to your phone using the VHB tape (note: use a phone case if you are not sure about it)

Things you need 3d printed parts 2x 2mm dia 22mm long pins(i used a pin from a rivet) 2x 5mm dia 2.8mm long strong neodymium magnet 2x 5mm dia 0.8mm long strong neodymium magnet 20mm thick vhb tape Superglue

Print settings Layer height: 0.12mm Sprint speed: 60mm/s (go slow for best result) Supports enabled Enable z-hop Orientation: all parts are printed on either of the sides with the holes facing the bed this does increase the print time but provides the best finish and strength for the hinges
