Droplet Magsafe Tray

This model was made in collaboration with Gazzaladra.

An Apple Magsafe charger tray with some extra space for everyday items

Filament Used

• Panchroma Dark Blue

Instructions

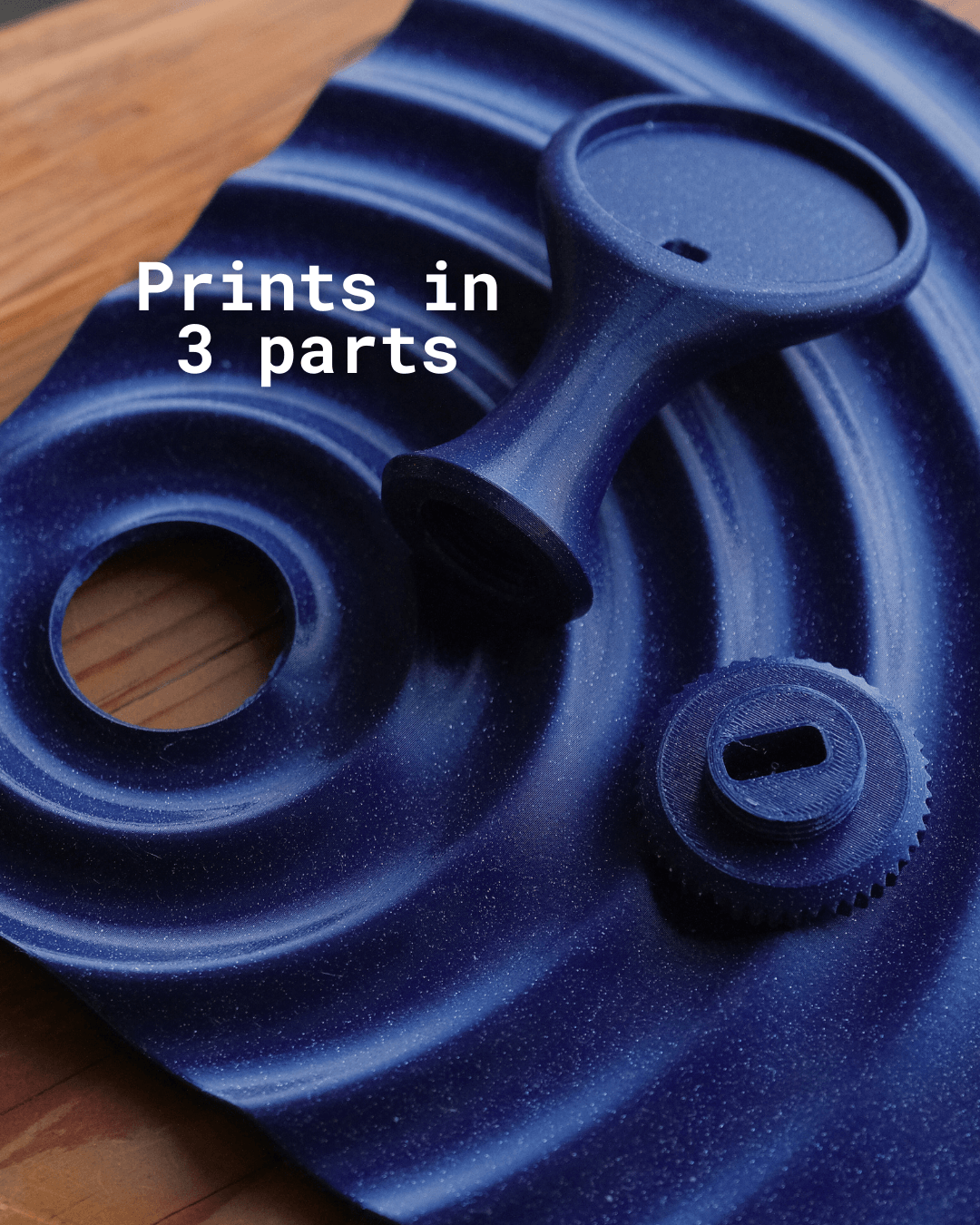

• Print the parts
• Insert Bottom to tray pointing the direction you want the Magsafe face
• Screw on upper piece
• Insert the cable from above
• Press the charger into the tray
• To remove the Magsafe charger, use a wooden chopstick from the bottom!

**Sizes: **

• 240 x 240 x 100 mm
• 220 x 220 x 100 mm

Print settings Required build volume: 220 x 220 x 220 mm Material usage: 250 g

Material: PLA Print direction: STLs are rotated correctly, check images Support: Optional, tree recommended Nozzle size: 0.4 mm Line width: 0.4 mm Layer height 0.2 mm Outer walls: 3 Speed: To avoid a bad surface in the upper layers reduce speed settings Infill: 15% Build plate adhesion type: brim or raft Support: Not necessary but advised for a better fit of the charger. Tree support with a 30 degree “threshold angle”. (in Cura the number is calculated 90-30 – so put 60 in “Support overhang angle”)
