Gridfinity ER25 collet holder

by
ewildgoose
Follow
Follow
Remix Model
ewildgoose
ewildgoose
|
Image 1 of 3
Gridfinity ER25 collet holder 3d model
ewildgoose
ewildgoose
|
Image 1 of 3
Gridfinity ER25 collet holder 3d model
2D
3D
Makes
Gridfinity ER25 collet holder 3d model
Gridfinity ER25 collet holder 3d model
Gridfinity ER25 collet holder 3d model

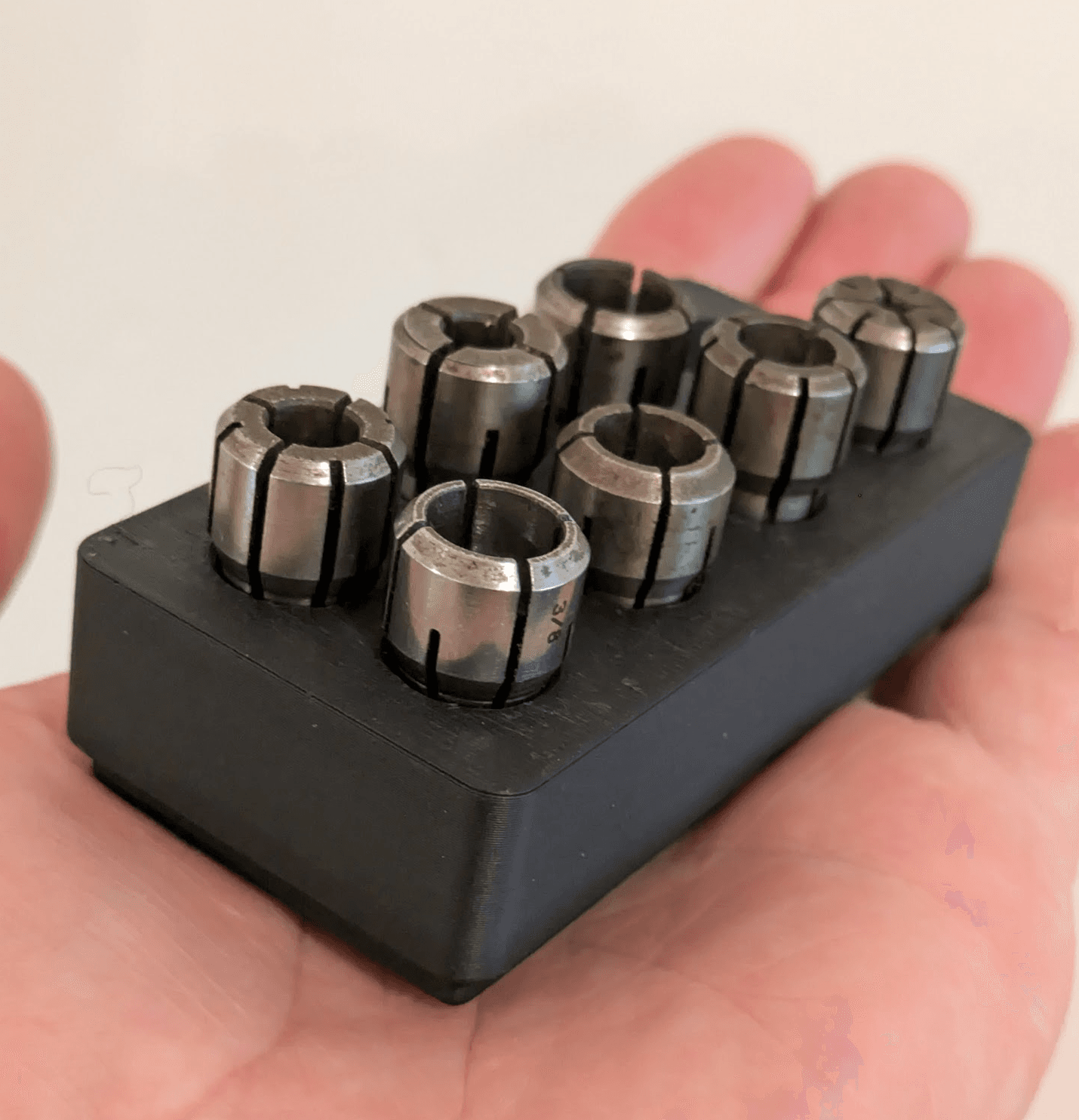

My collet collection was getting out of hand and I couldn't find a suitable (Gridfinity) based organiser that suited my needs.

Features of this are:

  • Gridfinity based (2x4)
  • It's not stackable... I wish it were, but I played with various ideas and it was just too difficult to get the things out with tall outer walls
  • ER25
  • tapered walls (so collet fits snugly)
  • straight rows to allow organisation by size (row of 8mm, row of 10mm, etc)
  • half "gridfinity height". Simply because this height works for the ER16 version and I wanted the two to be mostly identical.

I printed mine using PETG as it seems coolant proof (although I would in general carefully clean collets before stacking). Fit is decently tight on a range of collets (amazingly not all ER25 are the same size...)
