Simple Magnetic life counter

by
blazin_penguin
Follow
Follow
Remix Model
B
blazin_penguin
|
Image 2 of 3
Simple Magnetic life counter 3d model
B
blazin_penguin
|
Image 2 of 3
Simple Magnetic life counter 3d model
2D
3D
Makes
Simple Magnetic life counter 3d model
Simple Magnetic life counter 3d model
Simple Magnetic life counter 3d model

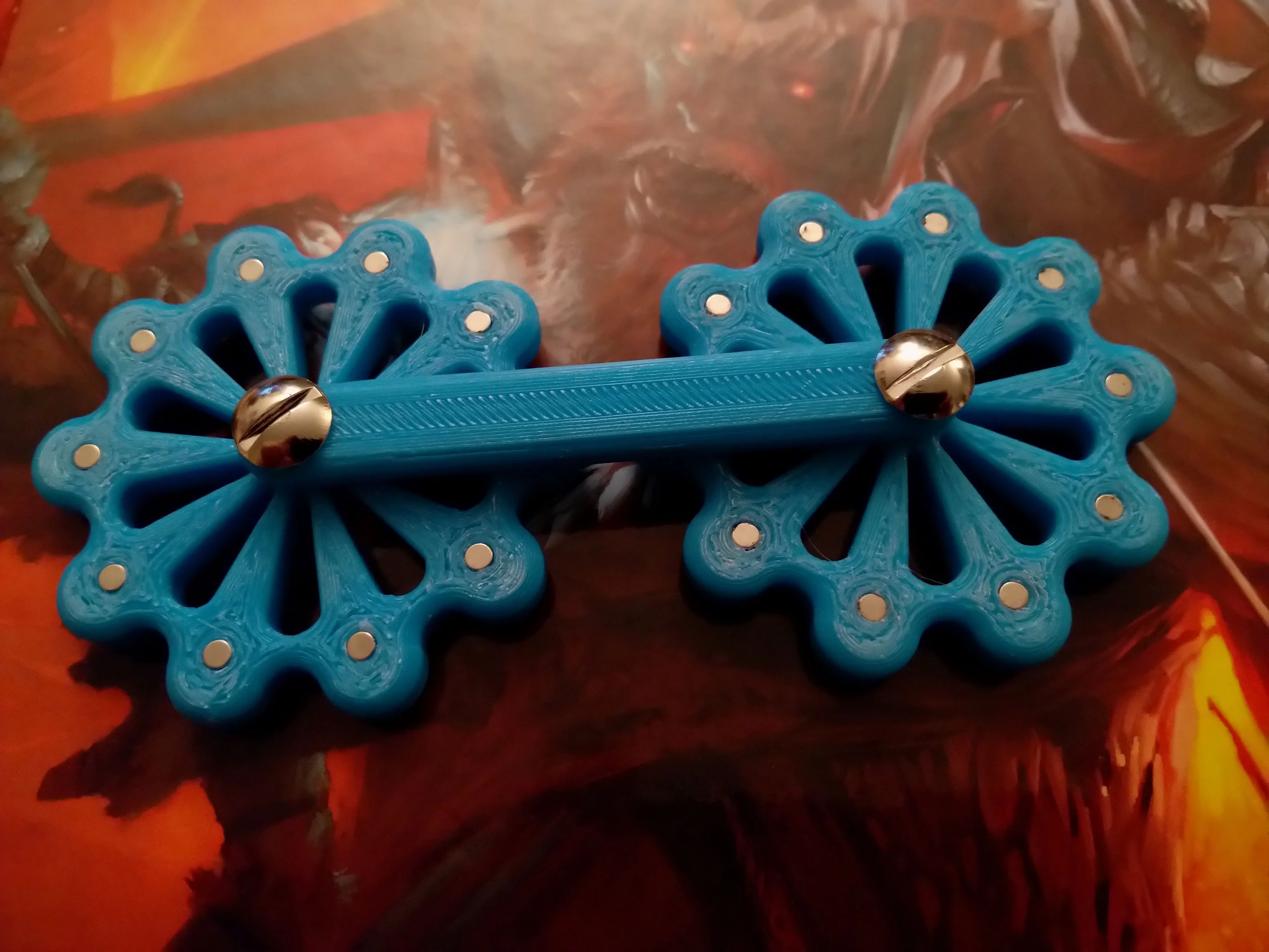

A nice simple magnetic life counter, print one of each file, no supports necessary

Requires:

Qty 22 1/8"x 1/8" Rod magnets https://www.leevalley.com/en-ca/shop/hardware/rare-earth-magnets/magnets/rod/40076-rare-earth-rod-magnets?item=99K3800

Qty 2 5mm dia, 1/2" long Chicago Screws https://tandyleather.ca/products/chicago-screws?_pos=1&_psq=1293-02&_ss=e&_v=1.0&variant=34105065504899

(sorry, I like to buy local for my projects so I don't have any amazon links)

simply insert the magnets into the holes (Watch out for polarity!). mine press-fit in, but if you need, use a small amount of CA Glue. Then use the chicago screws to fasten the wheels to the connector. Magnets will align on the inside.

If you are more ambitious than I am, then use the pause at layer feature of your slicer to make the numbers a different colour!

Enjoy
