Dual Snap Connector (DS Part B) - STEP Multiboard Remixing Files

Remix of Double Sided Snaps (Part B) - STEP Multiboard Remixing Files by Keep Making

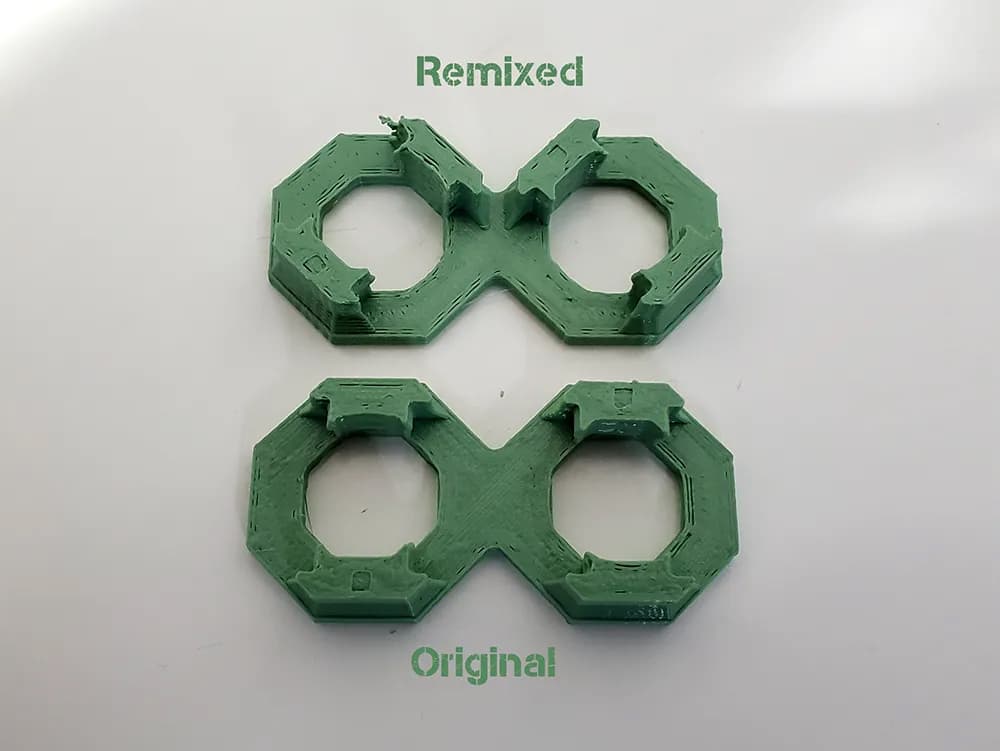

I didn't find one so I made a STEP File of the Part B Dual Snap Connector. It is remixed from the single snap connector "Standard" fit, so use 0.25 mm offset when joining to your tiles in CAD. This is intended only for assembly use when designing your multiboard. I do not recommend printing this file because I cannot guarantee it's functionality. Please use the original file when printing

This was very easy to make, all I did was copy the single snap connector body, move it 25 mm and join by extruding the adjacent faces.

Multiboard is created by Jonathan (KeepMaking)
