Mini tolerance test

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:4319207.

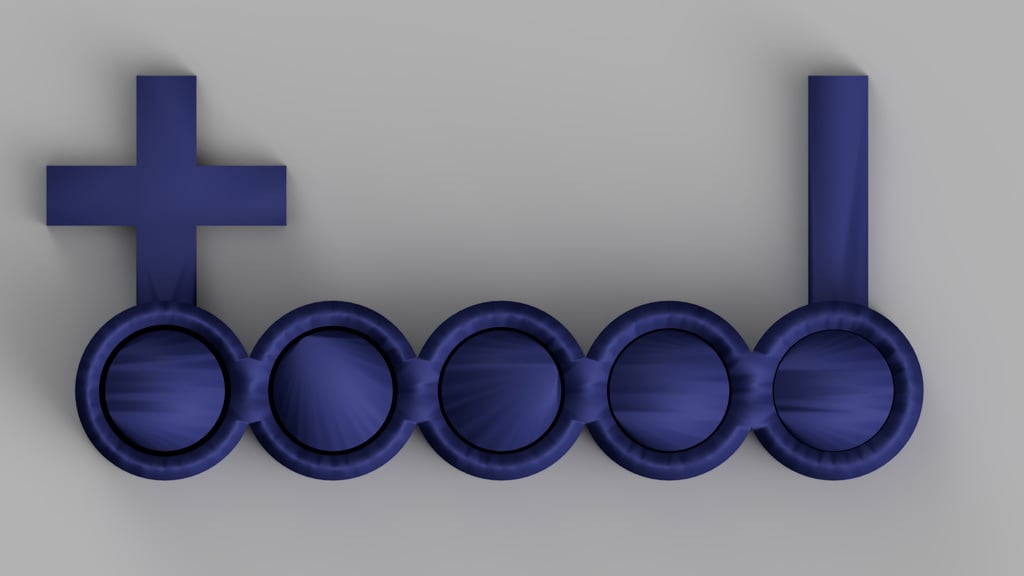

The tolerance ranges from 0.2 MM at the minus sign, to 1MM at the plus sign. No rafts of supports needed. Designed in tinkercad. If tolerances are good, cylinders will fall/slide out. I hope you find this useful!
