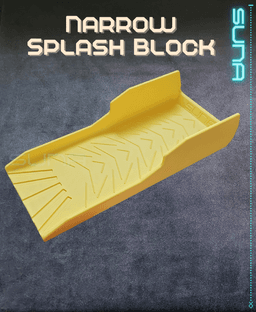

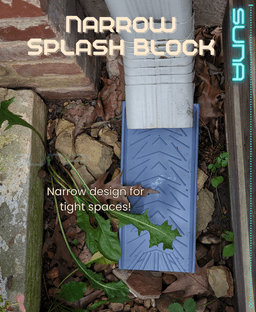

Need a splash block for a narrow spot where a gutter downspout runs? I did too, so I made one. Couldn't you just buy one online? Yeah but I enjoyed designing my own and it works out cheaper than buying one anyway! Happy printing

Designed with a 55 deg angle on the back edge and three different lengths so it's easy to print on any printer with a build height greater than 231 mm for the smallest, 247 mm for the mid size, and 263 mm for the largest version. I recommend PETG on a clean textured PEI plate for a durable part with a high chance of print success. If using in an area with high UV exposure, consider printing with ABS, ASA or similar tougher materials that can handle the elements better than PETG. Using PLA is NOT RECOMMENDED for outdoor printed parts except in very limited applications.

No supports needed! I have printed several of these with a few brands of PETG and all succeeded first try on PEI.

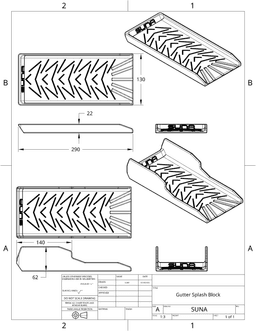

Dimensions:

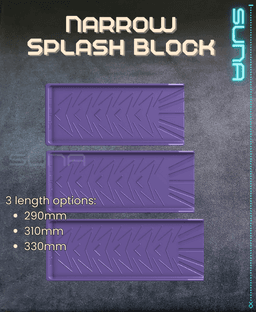

• Length Options: 290 mm, 310 mm, 330 mm (~ 11.4, 12.2, 13 in)
• Width: 130 mm (~ 5.1 in)
• Flat Height: 22 mm (~ 0.9 in)
• High Wall Height: 62 mm (~ 2.4 in)

Printed Weight: (PETG)

• 290mm, Flat: ~230g
• 330mm High Wall: ~318g

PRINTING:

• For best results, print with the angled back edge flat, this allows you to print a taller object than your build plate!
• Print with at least 6 bottom & top shell layers, 4-6 walls, 12-25% infill for durability
• 3mf included for reference and easy printing
