Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:3604202.

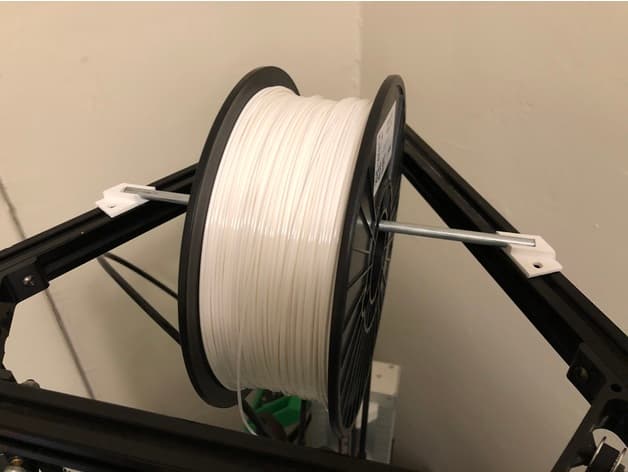

I modified my older hanging spool holder designs and adapted them to fit my Anycubic Kossel Linear Plus.
v2.0 - https://www.thingiverse.com/thing:3029252 v2.5 - https://www.thingiverse.com/thing:3029317
Required Components: 1 x 5/16 in.-18 tpi Zinc-Plated Hex Nut (25-Piece per Bag) - (Homedepot) - (https://is.gd/33W8Yd) 1 x 5/16 in. Zinc Nylon Lock Nut (15 per Pack) - (Homedepot) - (https://is.gd/e1HuBL) 1 x 5/16 in. -18 tpi x 6 in. Zinc-Plated Hex Bolt - (Homedepot) - (https://is.gd/gfU2Uu) - Optional 1 x 5/16 in. -18 tpi x 4 in. Zinc-Plated Hex Bolt - (Homedepot) - (https://is.gd/1Ntnnn) 2 x 608ZZ Bearings 2 x M4 - 12mm Hex Head Bolts 2 x M4 T-Nuts
Printed Components Needed: 1 x Anycubic_Kossel_Plus_2020_Spool_Mount.stl 1 x Anycubic_Kossel_Plus_2020_Spool_Cap.stl 1 x Anycubic_Kossel_Plus_2020_Spool_Roller_120mm_4in_Bolt.stl
Optional Parts: 1 x Anycubic_Kossel_Plus_2020_Spool_Cap_Alt.stl (Optional - Smaller) 1 x Anycubic_Kossel_Plus_2020_Spool_Roller_120mm_6in_Bolt.stl (Optional - 6in Bolt)
Supports are needed for the Anycubic_Kossel_Plus_2020_Spool_Roller (Build plate only) . All STLs are print ready oriented.
