Protopasta

4 In A Row Lamp

by
Protopasta
Follow
Follow
Remix Model
Protopasta
Protopasta
|
Image 1 of 9
4 In A Row Lamp 3d model
Protopasta
Protopasta
|
Image 1 of 9
4 In A Row Lamp 3d model
2D
3D
Makes
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model
4 In A Row Lamp 3d model

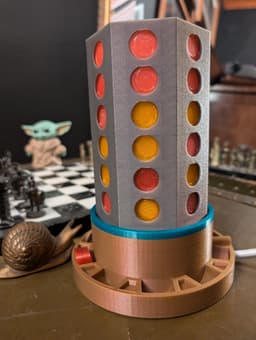

4 In A Row Lamp - Another fun project. If I did it again, I'd use supports on the top part of the lamp as well. I used snug supports on the base. The tokens were difficult to print at the .1 suggestion, so I printed at .2. Tested with both an led white light and a black light bulb. I think it's pretty cool and should be a lot of fun at parties. - 3d model
This model is restricted by licensing terms.

We decided to mash up the classic "4 in a row game" with a lamp and got this fun model! Sit with your friend and spin the lamp shade to play!

Print Settings -0.2mm layer height -15-20% infill -Supports needed for the base where the lamp will be seated -Print the base -I used this lamp cord: Lamp Cord -Print 21 red chips and 21 yellow chips -To print with optimal clarity: -.1mm layer height -2 perimeters -avoid crossing perimeters -100% infill -Aligned Rectilinear fill pattern -0 top and 0 bottom layers -Slow all speed to 20mm/s -Print at a higher temp for PLA, I used 220 for mine -Print on a smooth sheet or glass bed for best clarity -I used the “print by object” setting and filled the bed with copies for the transparent filament


21 Likes32 DownloadsJuly 17, 2024


21 Likes32 DownloadsJuly 17, 2024
This model is restricted by licensing terms.
