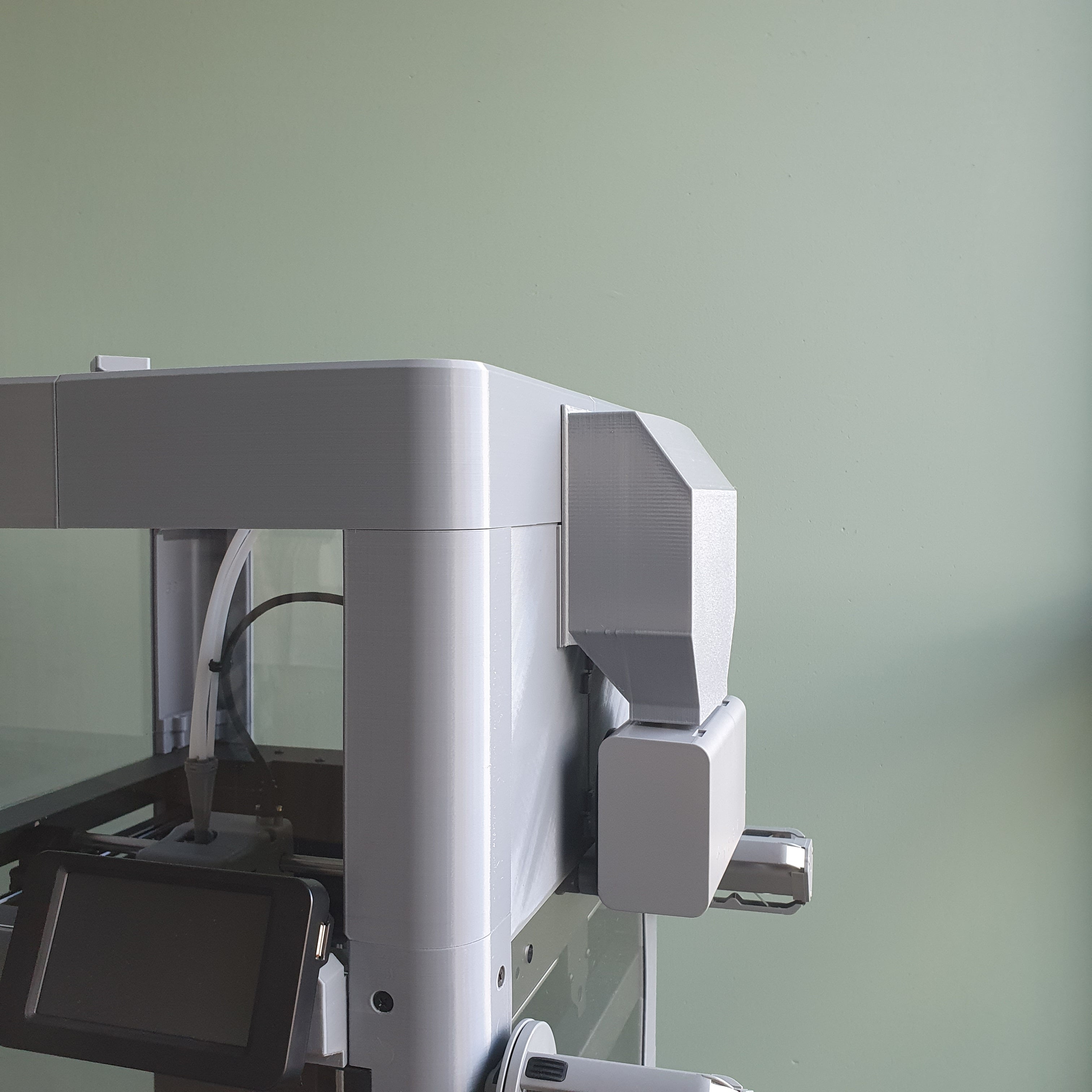

Instead of reducing the free movement of the IFS tubing to the extruder caused by the enclosure, this mod allows for the almost original clearance of the PTFE tubing. In my opinion reducing the strain on the extruder assembly. At the same time this will seal the open air gap from the original slot on the enclosure.

-Basic design. -Modified models C4 and D4 from the official (new taller version) AD5X enclosure. -The slotted acrylic panel is replaced by 2 printable panels.

Instructions: -After printing all 5 models replace models C4 and D4 from the original enclosure with the new ones. -Slide down the Acrylicleft + Acrylicright panels replacing the original slotted acrylic panel. -Slide down the Hood with the PTFE tubes inside. -Put back the top of the AD5X enclosure.

-The original unmodified enclosure file is also included as backup.

06-10-2026 - Updated the 'hood' model with thicker walls and should now print fine using default print settings 03-28-2026 - Initial release (replacing the older version completely as this can be used by anyone who uses the taller ad5x enclosure)
