This model is restricted by licensing terms.

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5516439.

Model has been moved to Printables.com:

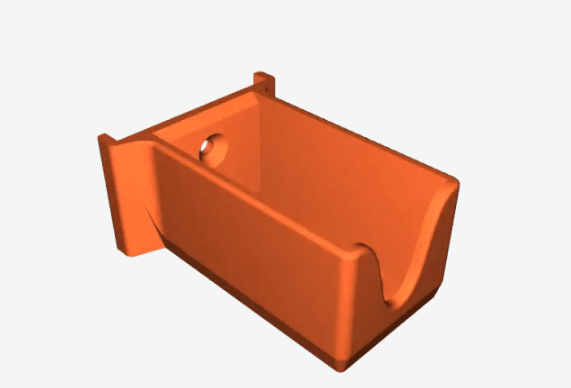

A parametric rectangular bottle holder design to save space in my really small storage space.

Here are the variations I have printed & installed so far:

Bottle Width Bottle length Plank width Height Example 35 mm 74 mm 43.9 mm (IVAR Front) 35 mm Wood Glue bottle… 36 mm 58 mm 43.9 mm (IVAR Front) 30 mm Oil Can… 30 mm 53 mm 43.9 mm (IVAR Front) 30 mm Zippo 125ml… 20 mm 29 mm 43.9 mm (IVAR Front) 20 mm SuperGlue, Loctite… If you can't work on the Freecad file, I'll be happy to add a variations to that list.

For cylindrical bottle holder, have a look at my previous model: https://www.printables.com/model/259673

Hope it helps !
