This model is restricted by licensing terms.

Model originally uploaded to Thingiverse at https://www.thingiverse.com/thing:5512537.

Model has been moved to Printables.com:

A series of double sided hooks for hanging on planks. Some of which are compatible with the IKEA IVAR system.

(to print with rim)

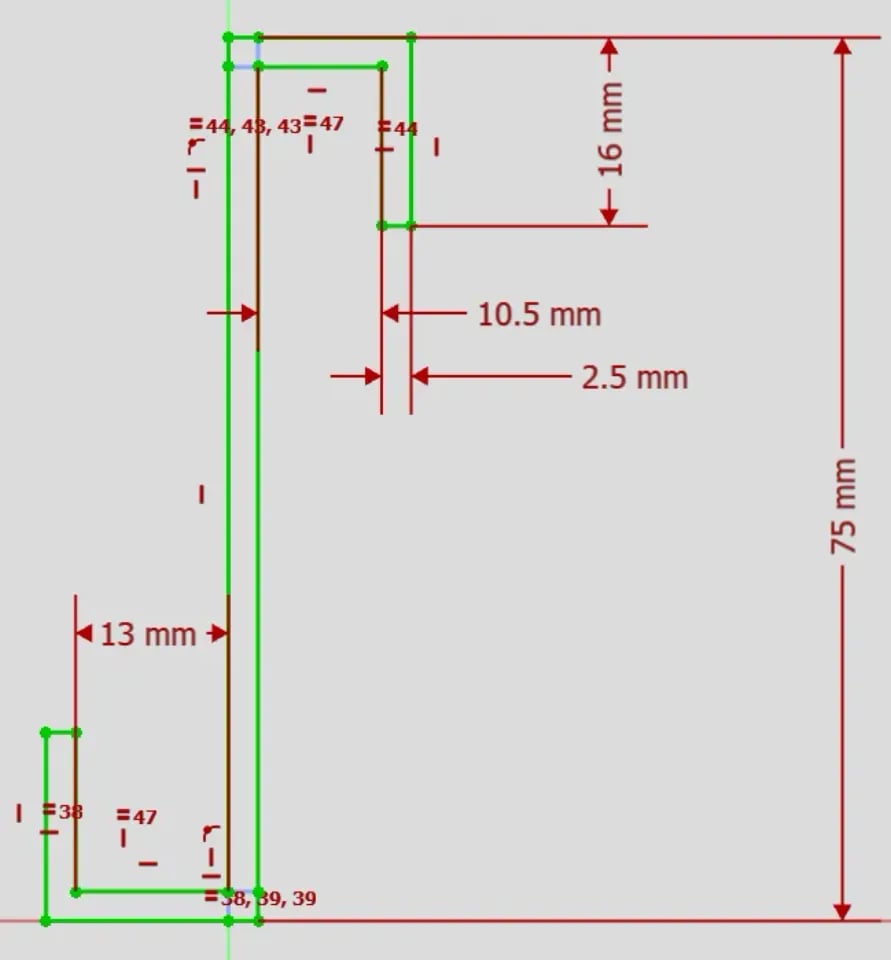

file Hook side size Plank side size Length Width IKEA IVAR ? 1 20mm 15mm 50mm 18mm no 2 20mm 17.5mm 50mm 18mm no 3 20mm 20mm 50mm 18mm no 4 20mm 22.5mm 50mm 18mm no 5 20mm 25mm 50mm 18mm no 6 20mm 27.5mm 50mm 18mm no 7 20mm 30mm 50mm 18mm no 8 20mm 10.5mm 50mm 18mm yes 9 13mm 10.5mm 75mm 18mm yes 10 30mm 10.5mm 75mm 18mm yes 11 30mm 10.5mm 75mm 50mm yes Remember that “Hook side” and “Plank side” can be reversed so it creates more combinations.

Hope it helps!
